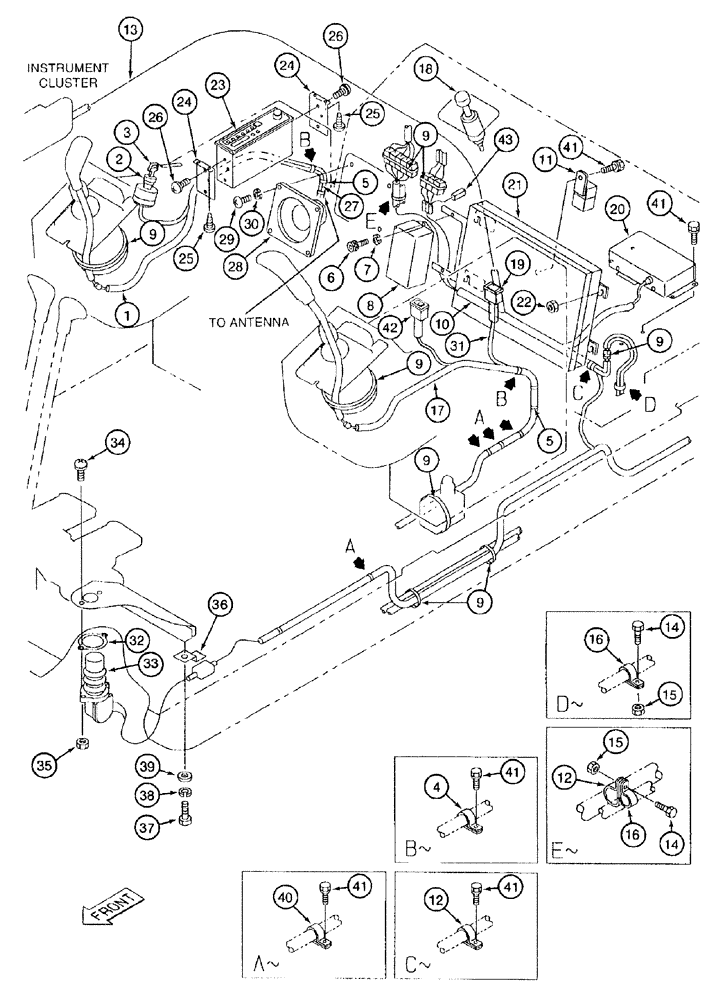

Запчасти Case 9050B (4-018) - CAB ELECTRICAL SYSTEM CONSOLE, CONTROLLER AND AUXILIARY CONTROL HARNESSES (04) - ELECTRICAL SYSTEMS

1

159927A1

HARNESS

wiring, right-hand controller

1шт.

162217A1

IGNITION SWITCH

ASSEMBLY - starter, engine, Includes: Ref. 2-3

1шт.

2

159909A1

IGNITION SWITCH

ignition

1шт.

3

150979A1

IGNITION KEY

switch, set of two

1шт.

4

157807A1

COLLAR

P-type, 20 mm ID

2шт.

5

150067A1

MOUNTING CLIP

tie, 150 mm long

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

hex socket, 6 - 1.0 x 20 mm, class 12.9

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

159910A1

BOX, FUSE

1шт.

9

150496A1

MOUNTING CLIP

tie, 250 mm long

1шт.

10

164708A1

HARNESS

wiring

1шт.

11

159919A1

RELAY

electrical system controller

11шт.

12

157808A1

COLLAR

P-type

4шт.

13

159926A1

HARNESS

cab

1шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

15

157699A1

FLANGE NUT

hex flange, special

2шт.

16

158970A1

COLLAR

P-type

2шт.

17

159928A1

HARNESS

wiring, left-hand controller

1шт.

18

159920A1

LIGHTER, CIGARETTE

1шт.

19

162751A1

SWITCH

special, boom priority

1шт.

20

162902A1

ECU

motor driver

1шт.

21

168788A1

ECU

electrical system

1шт.

21

168788A1R

REMAN ELECT CONTROL

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), electrical system (10/96-)

1шт.

21

168788A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

22

150469A1

FLANGE NUT

hex flange, special

4шт.

23

159940A1

RADIO

AM/FM

1шт.

24

159944A1

SUPPORT

radio mounting

2шт.

25

159945A1

SCREW,Truss Hd

special, truss head

4шт.

26

157537A1

SCREW

special, pan head

4шт.

27

152500A1

CABLE ASSY.

WIRE - antenna

1шт.

28

159946A1

SPEAKER

radio

1шт.

29

159947A1

SCREW,Phil Pan Head, M4 x 12mm

special, pan head

4шт.

30

160383A1

SPRING WASHER

lock, special

4шт.

31

159620A1

HARNESS

free swing switch

1шт.

32

160663A1

PACKING

GASKET - switch

1шт.

33

159921A1

SWITCH, CRUISE INC/D

special, travel speed select

1шт.

34

159922A1

SCREW,Pan Hd, M5 x 20mm

special, pan head

2шт.

35

825-1405

NUT,M5, Cl 8

2шт.

36

158962A1

CLIP

harness

1шт.

37

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special, was 627-8012

1шт.

38

892-11008

LOCK WASHER,8mm ID

If Used

1шт.

40

159150A1

COLLAR

P-type

6шт.

41

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

26шт.

42

159923A1

SWITCH

rocker, cold start

1шт.

43

231959A1

DIODE

electrical

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If used

1шт.
