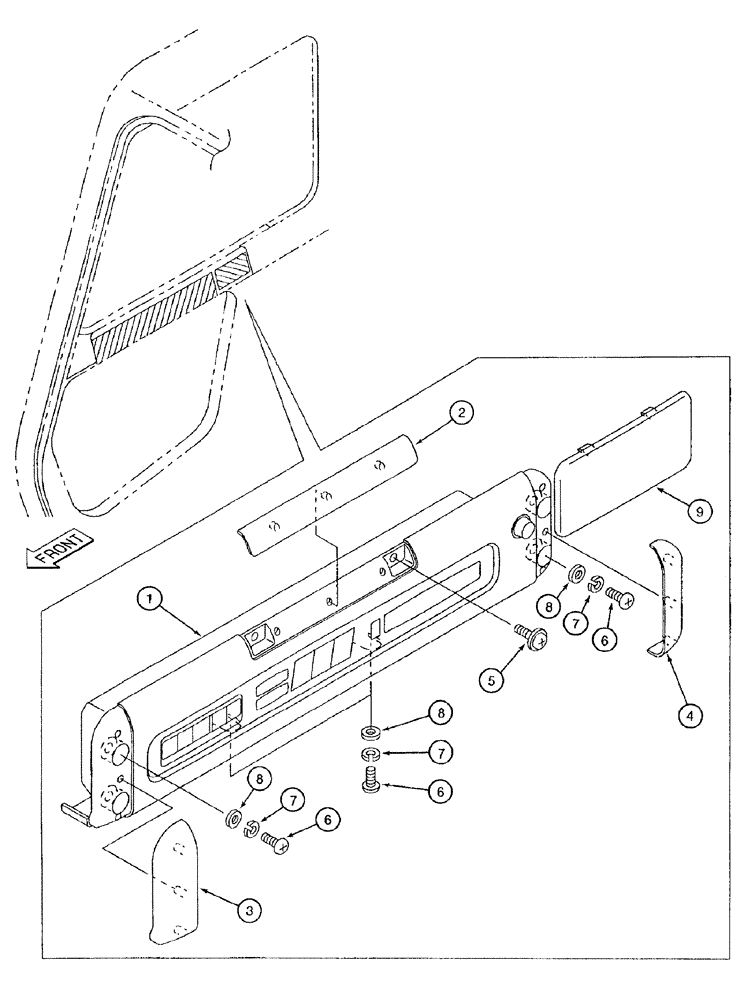

Запчасти Case 9050B (4-016) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

164586A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT ASSEMBLY, Includes: Ref. 1-4

1шт.

164586A1R

REMAN-ELECT MONITOR

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), CLUSTER, INSTRUMENT ASSEMBLY (10/96-)

1шт.

164586A1C

CORE-MONITOR

Return Number

1шт.

1

159930A1

BOARD, PRINTED CIRCU

IT CLUSTER - instrument, Includes: Ref. 1A

1шт.

1a

168210A1

KIT

panel, to replace LCR in monitor, not shown

1шт.

2

159219A1

CAP

instrument cluster

1шт.

3

159218A1

CAP

instrument cluster

1шт.

4

159236A1

CAP

instrument cluster

1шт.

5

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

2шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

6шт.

7

892-11005

LOCK WASHER,M5

6шт.

8

159601A1

WASHER

flat, special

6шт.

9

159616A1

COVER

special

1шт.
