Запчасти Case 9050B (4-012) - ELECTRICAL PARTS ABOVE BATTERIES, PRIOR TO P.I.N. EAC0501196 (04) - ELECTRICAL SYSTEMS

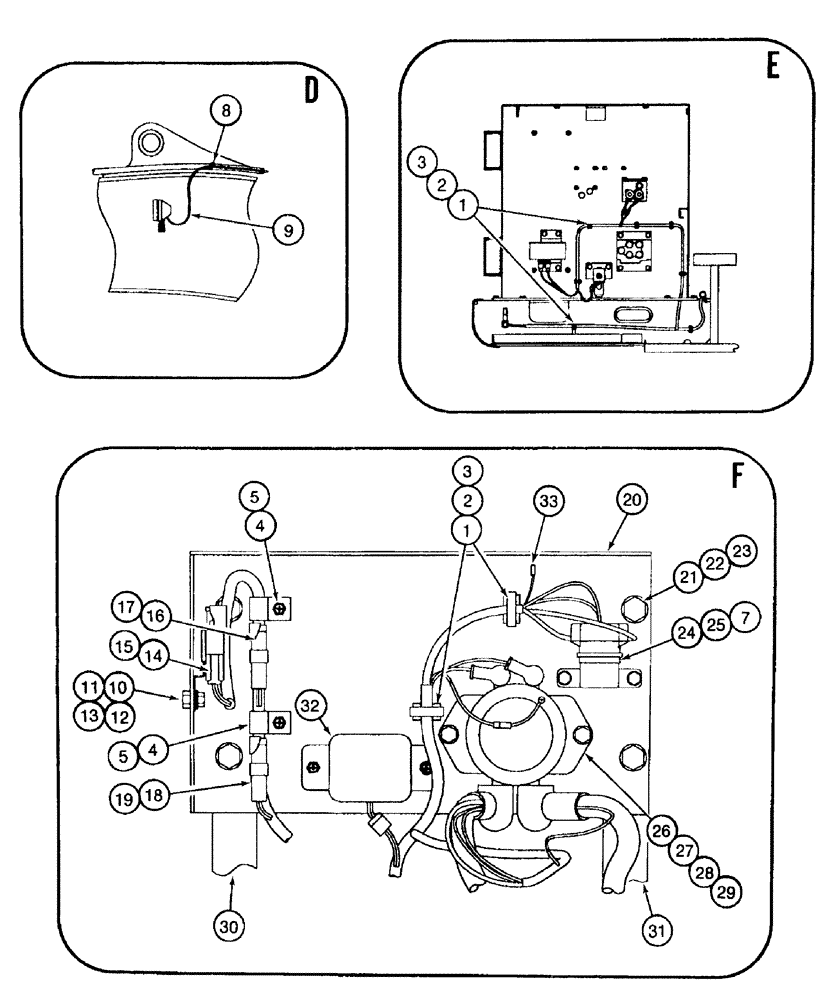

Схема запчастей Case 9050B - (4-012) - ELECTRICAL PARTS ABOVE BATTERIES, PRIOR TO P.I.N. EAC0501196 (04) - ELECTRICAL SYSTEMS
2
29
5
1
31
18
32
1
5
12
2
21
28
9
3
11
20
25
19
16
23
15
27
24
10
7
8
22
3
4
33
4
26
17
30
14
13

Артикул

Название

Примечание

Количество

1

150860A1

COLLAR

BRACKET - support, wiring harness

23шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

23шт.

3

170308A1

BAND

STRAP - tie

23шт.

4

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

2шт.

5

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

2шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

8

170308A1

BAND

STRAP - tie

4шт.

9

162579A1

HARNESS

electrical, work lamps, see page 4-19

1шт.

10

158963A1

CLIP

wire

1шт.

11

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

1шт.

12

892-11008

LOCK WASHER,8mm ID

1шт.

14

165127A1

FUSE

75 ampere

1шт.

15

159904A1

COVER

wire, fuseholder

1шт.

16

159903A1

FUSE

25 amps

1шт.

17

159904A1

COVER

wire, fuseholder

1шт.

27

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

18

159903A1

FUSE

25 amps

1шт.

19

159904A1

COVER

wire, fuseholder

1шт.

20

170601A1

CASE

BOX - relay, electrical

1шт.

21

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

22

892-11012

LOCK WASHER,M12

4шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

24

159898A1

RELAY

starter

1шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

2шт.

26

159897A1

RELAY

battery

1шт.

28

892-11008

LOCK WASHER,8mm ID

2шт.

30

173110A1

BRACKET

support

1шт.

31

173109A1

BRACKET

support

1шт.

32

156501A1

RELAY

safety, was 135153A1

1шт.

33

231959A1

DIODE

electrical

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 32
