(4-010) - BATTERIES, CABLES AND BATTERY MOUNTING

Запчасти Case 9050B (4-010) - BATTERIES, CABLES AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

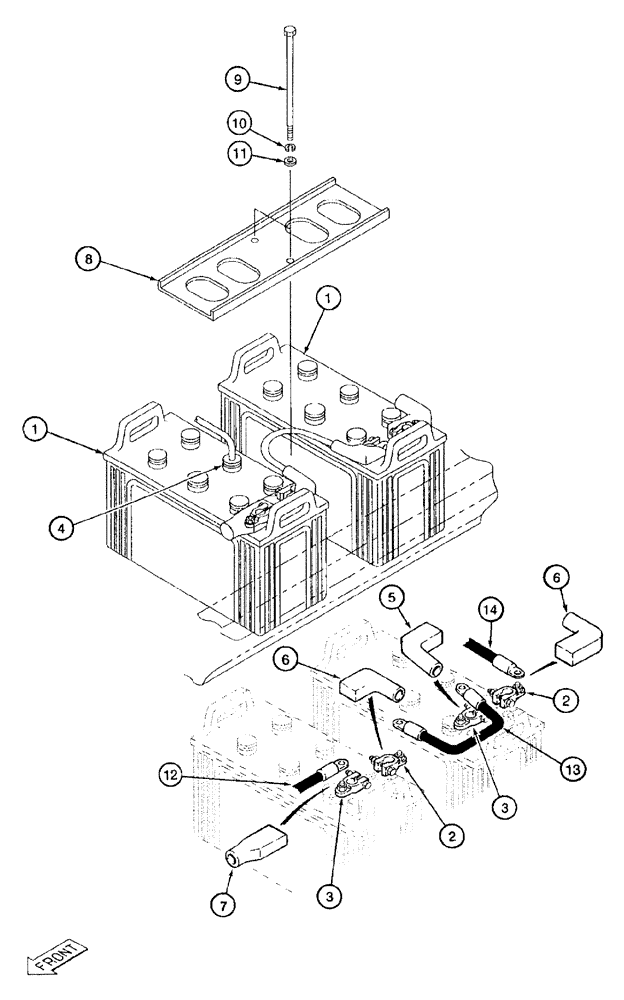

Схема запчастей Case 9050B - (4-010) - BATTERIES, CABLES AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS
3
13
4
5
9
7
2
2
1
3
1
6
6
11
12
8
14
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

170052A1

DRY BATTERY

12 volt, 780 amps, dry charged, without low electrolyte sensor

2шт.

2

158403A1

TERMINAL CONNECTOR

CLAMP - terminal

2шт.

3

150455A1

TERMINAL CONNECTOR

terminal

2шт.

4

170051A1

SENSOR

low electrolyte

1шт.

5

150364A1

CAP

terminal

1шт.

6

150360A1

CAP

terminal

2шт.

7

150366A1

CAP

terminal

1шт.

8

150810A1

SPECIAL RING

BRACKET - battery retainer

1шт.

9

151710A1

BOLT,Spcl, M10 x 210mm

special

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

12

170591A1

CABLE ASSY.

battery, special, Serial Range: -EAC0501196

1шт.

12

173917A1

NEG BATTERY CABLE

P.I.N EAC0501196 and after, Start Serial: EAC0501196

1шт.

13

170590A1

CABLE ASSY.

, Serial Range: battery-battery

1шт.

14

170589A1

CABLE ASSY.

battery, Serial Range: battery-relay

1шт.
