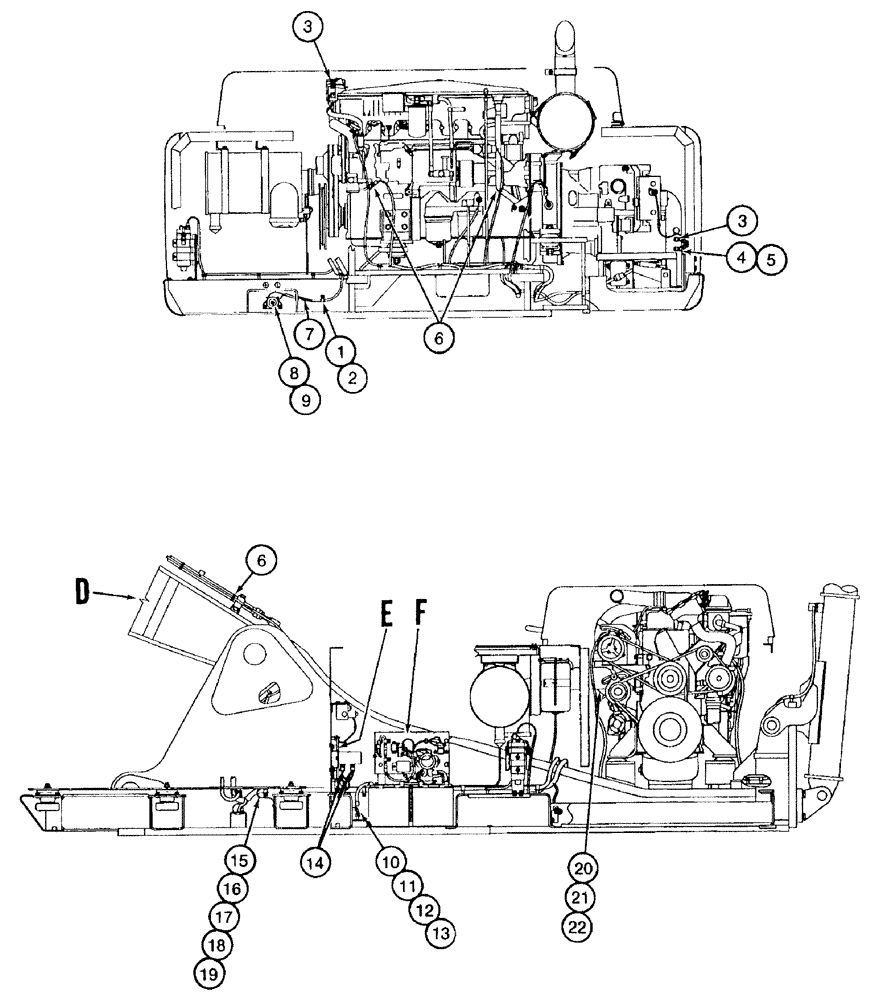

Запчасти Case 9050B (4-008) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

2шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

2шт.

3

159147A1

SENSOR

temperature

2шт.

4

163658A1

THERMOSTATIC SWITCH

temperature

1шт.

5

159901A1

SEALING WASHER

sealing

1шт.

6

170308A1

BAND

STRAP - tie

4шт.

7

150413A1

GROMMET

rubber

1шт.

8

169259A1

ALARM

travel, replaces 162218A1

1шт.

9

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

2шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

1шт.

11

892-11008

LOCK WASHER,8mm ID

1шт.

13

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

14

159599A1

PRESSURE SWITCH

2шт.

15

170592A1

HARNESS

WIRE - ground

1шт.

16

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

hex, full threads, 6 - 1.0 x 8 mm, class 10.9

2шт.

17

892-11006

LOCK WASHER,M6

4шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

19

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

20

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type

1шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
