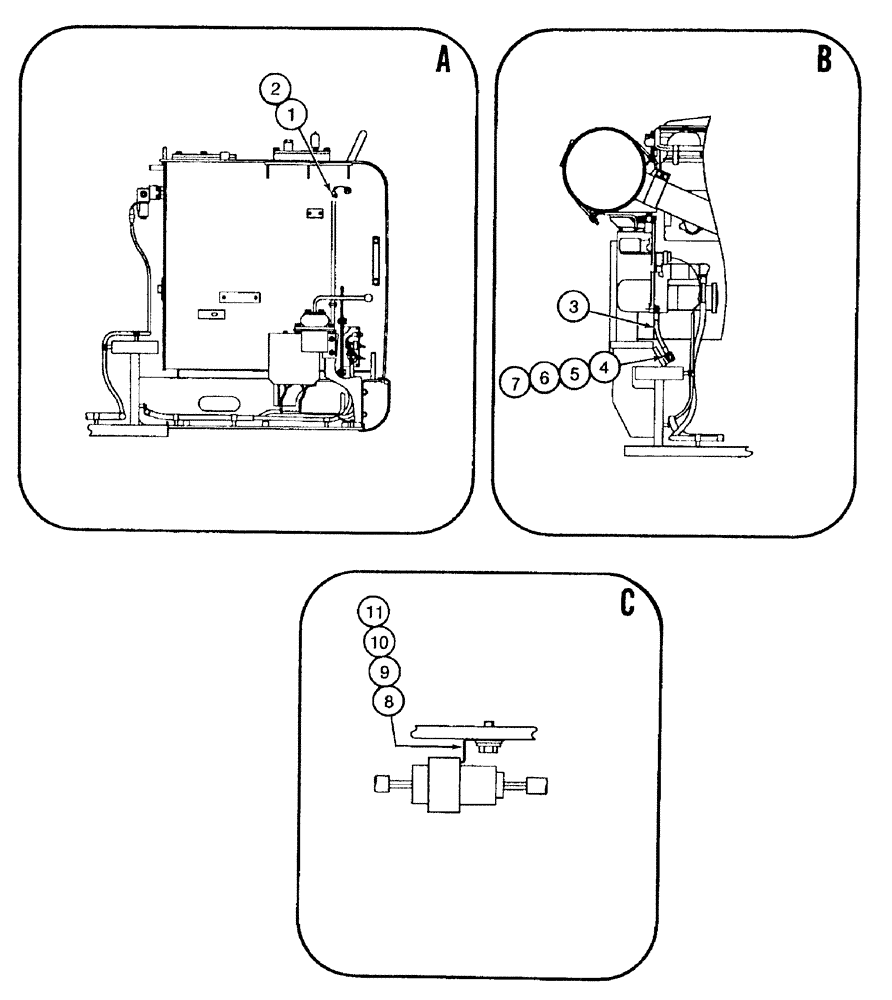

Запчасти Case 9050B (4-006) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

2шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

2шт.

3

173108A1

CABLE

battery, special

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

7

30574R1

LOCK WASHER,Ext Tooth, M12

internal tooth lock, 12 mm

1шт.

8

158962A1

CLIP

harness

1шт.

9

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

1шт.

10

892-11008

LOCK WASHER,8mm ID

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
