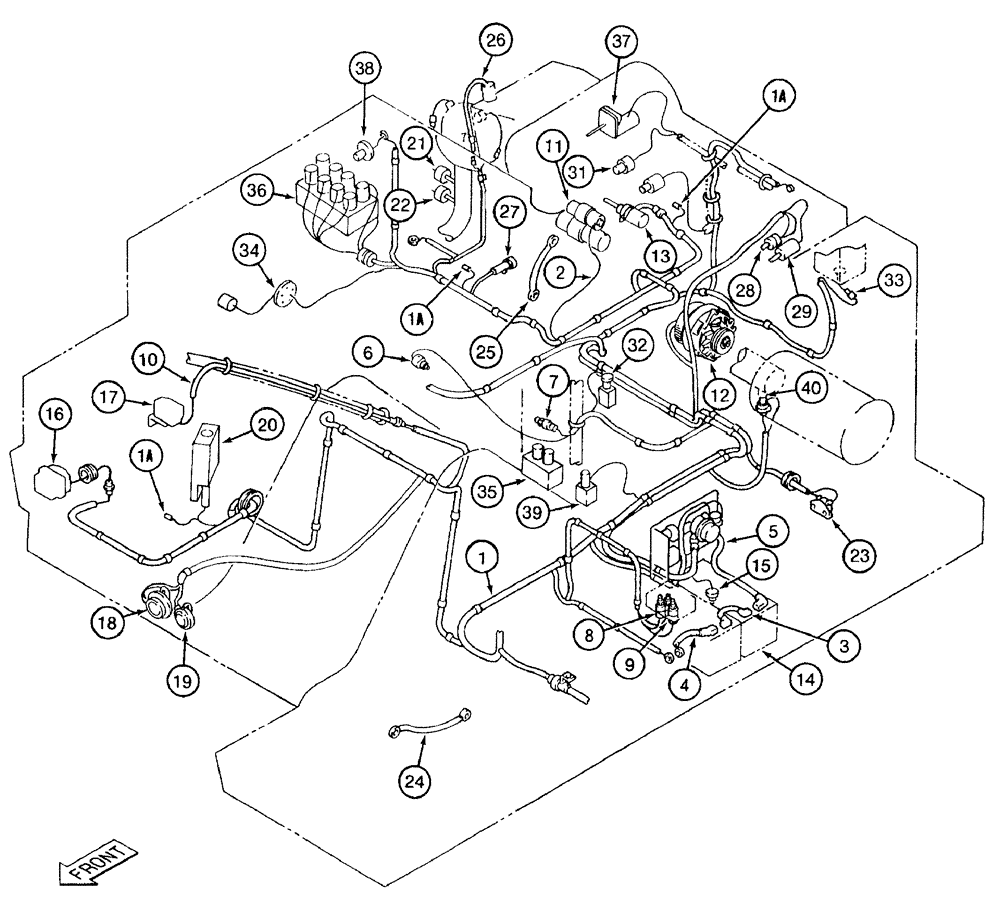

Запчасти Case 9050B (4-004) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

165595A1

HARNESS

wire, main chassis electrical, was 165126A1, Serial Range: -EAC0501196

1шт.

1

173915A1

HARNESS

wire, main chassis electrical, Includes: Ref. 1A, Start Serial: EAC0501196

1шт.

1a

231959A1

DIODE

electrical

3шт.

2

173107A1

CABLE ASSY.

battery, Serial Range: relay-starter

1шт.

3

170590A1

CABLE ASSY.

, Serial Range: battery-battery

1шт.

4

170591A1

CABLE ASSY.

battery, special, Serial Range: battery-ground

1шт.

5

170589A1

CABLE ASSY.

battery, Serial Range: battery-relay

1шт.

6

159899A1

PRESSURE SWITCH

pressure, upper pilot

1шт.

7

168826A1

SWITCH

pressure, travel pilot pressure

1шт.

8

159599A1

PRESSURE SWITCH

swing pilot

1шт.

9

159599A1

PRESSURE SWITCH

boom up and down pilot

2шт.

10

162579A1

HARNESS

electrical, boom light

1шт.

11

REF

INSTRUCTION

STARTER ASSEMBLY - see your authorized Cummins engine dealer

1шт.

12

170666A1

ALTERNATOR

24 volt, 70 amp

1шт.

13

REF

INSTRUCTION

SOLENOID - see your authorized Cummins engine dealer

1шт.

14

170052A1

DRY BATTERY

12 volt, 780 amps

2шт.

15

170051A1

SENSOR

low electrolyte

1шт.

159600A1

LAMP, WORK

LIGHT, WORK Includes: Ref. 16

1шт.

16

152809A1

BULB

sealed beam

1шт.

159598A1

PORTABLE LAMP

Includes: Ref. 17

1шт.

17

152812A1

BULB

sealed beam

1шт.

18

159948A1

HORN

electric, see figure 4-2

1шт.

19

159949A1

HORN

electric, see figure 4-2

1шт.

20

161374A1

RESERVOIR ASSY.

washer fluid, windshield

1шт.

21

159147A1

SENSOR

temperature, hydraulic

1шт.

22

163658A1

THERMOSTATIC SWITCH

temperature, hydraulic

1шт.

23

162218A1

ALARM

travel

1шт.

24

170592A1

HARNESS

WIRE - ground, cab

1шт.

25

173108A1

CABLE

battery, special, engine ground

1шт.

26

164539A1

VALVE

ASSEMBLY - proportional, parts list figure 8-146

1шт.

27

173191A1

SENSOR

tachometer

1шт.

28

171279A1

SWITCH

temperature, engine coolant

1шт.

29

159147A1

SENSOR

temperature, engine coolant

1шт.

31

170663A1

SWITCH

oil pressure, engine oil filter bypass

1шт.

32

159205A1

VALVE

ASSEMBLY - solenoid, free swing, parts list figure 8-178

1шт.

33

161740A1

SWITCH

sender, coolant level

1шт.

34

163257A1

SENSOR

SENDER - fuel level

1шт.

35

161311A1

VALVE

ASSEMBLY - swing brake release, parts list figure 8-182

1шт.

36

161310A1

VALVE

ASSEMBLY - solenoid, pilot control, parts list figure 8-176

1шт.

37

160614A1

MOTOR, ELECTRIC

throttle control

1шт.

37

160614A1R

REMAN-ELECTRIC MOTOR

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), Throttle Control, PIN EAC0501122 AND AFTER (10/96-)

1шт.

37

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

38

152723A1

PRESSURE SWITCH

hydraulic reservoir air pressure

1шт.

39

162538A1

VALVE

ASSEMBLY - solenoid, auxiliary dual pump, parts list figure 8-184

1шт.

40

150042A1

SENSOR

SWITCH - air restriction indicator, Serial Range: -EAC0501126

1шт.

40

171355A1

SENSOR

vacuum, Start Serial: EAAC0501126

1шт.
