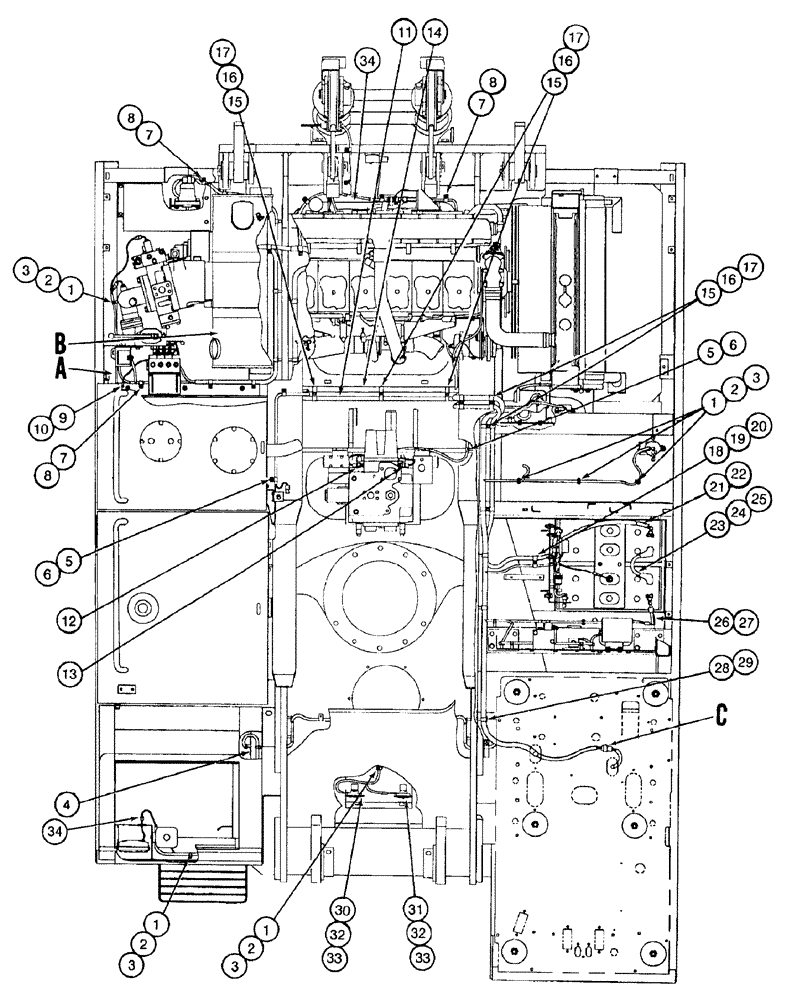

Запчасти Case 9050B (4-002) - ELECTRICAL PARTS OUTSIDE CAB (04) - ELECTRICAL SYSTEMS

1

150860A1

COLLAR

BRACKET - support

23шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

23шт.

3

170308A1

BAND

STRAP - tie

23шт.

4

153590A1

GROMMET

rubber

1шт.

5

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

2шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

2шт.

7

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

14шт.

8

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

14шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

1шт.

10

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

11

173107A1

CABLE ASSY.

battery

1шт.

12

159899A1

PRESSURE SWITCH

pressure, upper pilot

1шт.

13

168826A1

SWITCH

pressure, travel pilot pressure

1шт.

14

165595A1

HARNESS

wire, was 165126A1, Serial Range: -EAC0501196

1шт.

14

173915A1

HARNESS

wire, Start Serial: EAC0501196

1шт.

15

515-21349

CLAMP,1 3/8", Insul, 1/4" Bolt

P-type, 1-3/8 inch ID

7шт.

16

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type

6шт.

17

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

7шт.

18

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

P-type, 5/8 inch ID

1шт.

19

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

P-type

1шт.

20

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

1шт.

21

170589A1

CABLE ASSY.

battery

1шт.

22

150360A1

CAP

terminal

1шт.

23

170590A1

CABLE ASSY.

, Serial Range: battery-battery

1шт.

24

150360A1

CAP

terminal

1шт.

25

150364A1

CAP

terminal

1шт.

26

170591A1

CABLE ASSY.

battery, special

1шт.

27

150366A1

CAP

terminal

1шт.

28

515-21349

CLAMP,1 3/8", Insul, 1/4" Bolt

P-type, 1-3/8 inch ID

5шт.

29

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

5шт.

30

159948A1

HORN

electric

1шт.

31

159949A1

HORN

electric

1шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

33

892-11008

LOCK WASHER,8mm ID

2шт.

34

231959A1

DIODE

electrical, window washer and fuel shutoff solenoid

2шт.
