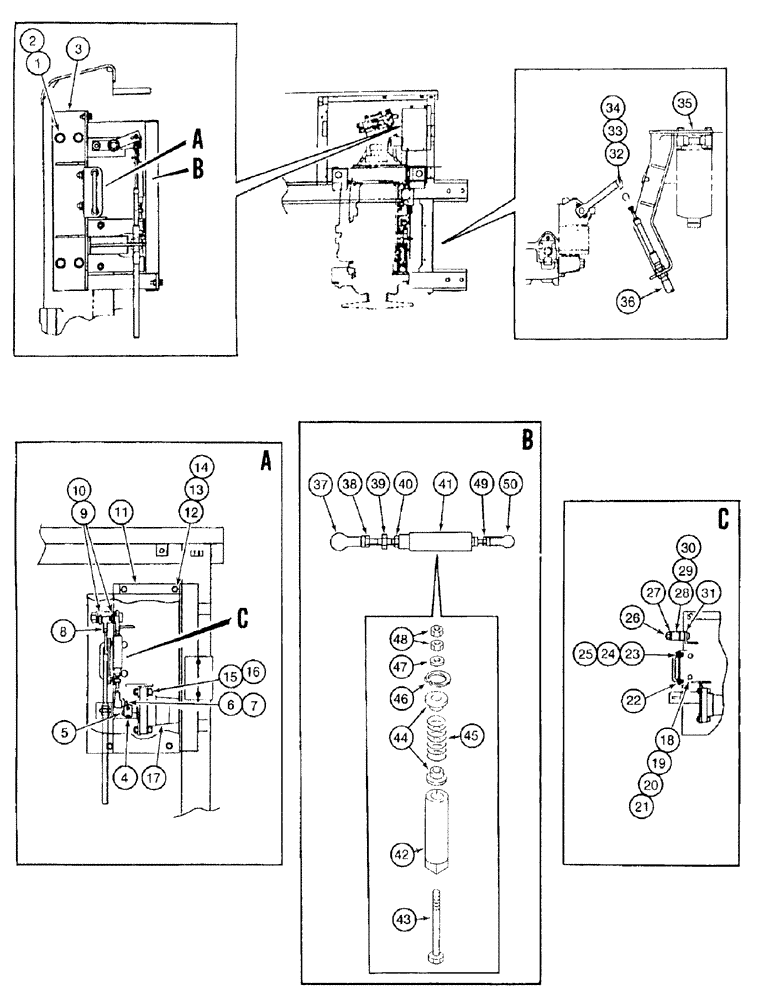

Запчасти Case 9050B (3-006) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

2

150811A1

WASHER

flat, special, 12 mm

4шт.

3

170587A1

BRACKET

mounting

1шт.

4

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

2шт.

5

170640A1

LEVER

throttle

1шт.

6

892-11008

LOCK WASHER,8mm ID

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

150054A1

BALL JOINT

1шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

170585A1

COVER

throttle motor

1шт.

14

892-11008

LOCK WASHER,8mm ID

4шт.

15

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

16

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

17

160614A1

MOTOR, ELECTRIC

throttle control

1шт.

17

160614A1R

REMAN-ELECTRIC MOTOR

9050B CASE CRAWLER EXCAVATOR (S/N EAC0501122 & AFTER), Throttle Control, PIN EAC0501122 AND AFTER (10/96-)

1шт.

17

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

20

892-11010

LOCK WASHER,M10

2шт.

22

170643A1

BRACKET

special

1шт.

23

162296A1

STAY

special

1шт.

25

153181A1

COTTER PIN

CLIP - hair pin

2шт.

26

170074A1

NUT

hex, special

1шт.

27

170637A1

WASHER

special

1шт.

28

170639A1

CHAIN (CE)

LINK ASSEMBLY - control, Includes: Ref. 29-30

1шт.

29

173200A1

LINK

control

1шт.

30

170072A1

BUSHING

bellcrank, was 170452A1

2шт.

31

170638A1

WASHER

special

1шт.

32

150054A1

BALL JOINT

1шт.

33

892-11006

LOCK WASHER,M6

1шт.

34

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

35

170641A1

BRACKET

control cable

1шт.

36

171779A1

CABLE

control, was 170636A1

1шт.

37

153235A1

BALL JOINT

1шт.

38

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

39

150547A1

ROD,THREADED

THREADED ROD

1шт.

40

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

41

150535A1

SPRING

ASSEMBLY - cable return, Includes: Ref. 42-48

1шт.

42

150537A1

TUBE

HOUSING - spring

1шт.

43

150540A1

BOLT,Hex, M6 x 95mm, Spcl

hex

1шт.

44

150453A1

COLLAR CLAMP

GUIDE - spring

2шт.

45

150543A1

SPRING

cable return

1шт.

46

800-2122

SNAP RING,M22, Internal

1шт.

47

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

48

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

49

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

50

150054A1

BALL JOINT

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
