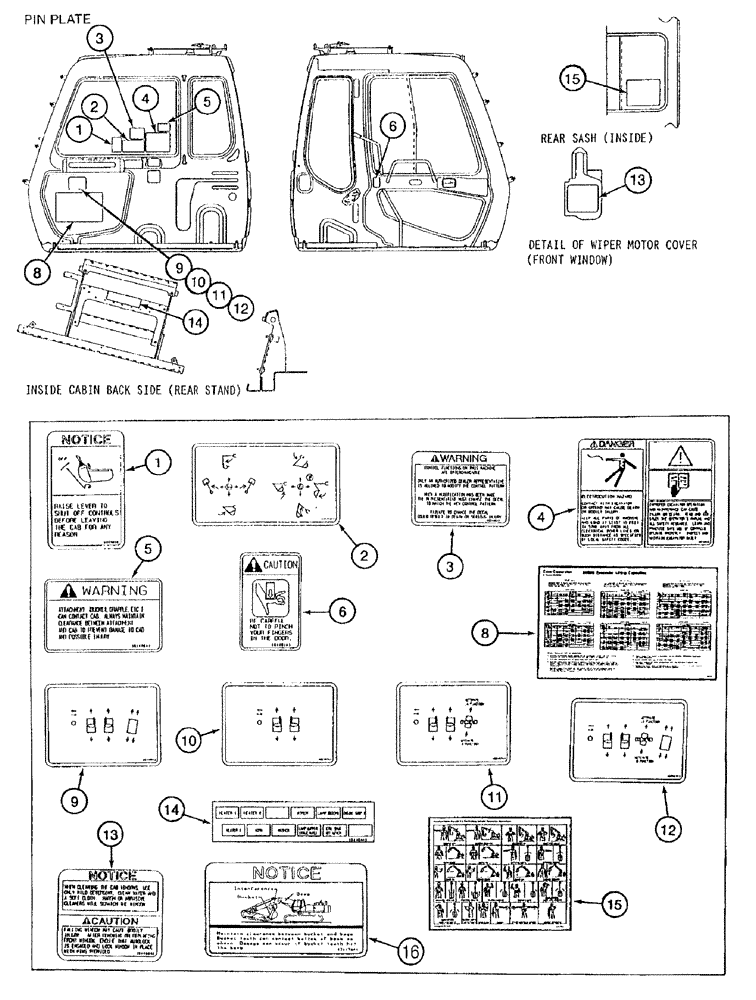

Запчасти Case 9050B (9-148) - DECALS, FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

190480A1

DECAL

DECAL - Notice, raise lever to shut off controls (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

2

161459A1

DECAL

control pattern

1шт.

3

190630A1

DECAL

DECAL - Warning, control functions on this machine are interchangeable (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

4

190501A1

DECAL

DECAL - Danger, electrocution hazard (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

5

190481A1

DECAL

DECAL - Warning, attachment can contact cab (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

6

190495A1

DECAL

DECAL - Caution, be careful not to pinch your fingers (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

8

240391A1

DECAL

DECAL - lift capacities (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

9

161468A1

DECAL

diagram, operating controls

1шт.

10

162185A1

DECAL

DECAL - foot pedal controls

1шт.

11

162186A1

DECAL

DECAL - foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

12

162187A1

DECAL

diagram, operating controls

1шт.

13

190485A1

DECAL

DECAL - Notice, when cleaning the windows/Caution, falling window may cause (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

14

190486A1

DECAL

DECAL - relay location (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

15

190347A1

DECAL

DECAL - hand signal chart (French)

1шт.

REF 1, 3 thru 8, 13 thru 15 and REF 1, 5 thru 8, 10 thru 17, 20, 22, 23 & 24 on figure 9-146 are included in the French language decal kit 176620A1

1шт.

16

171747A1

LABEL

DECAL - boom/bucket interference

1шт.
