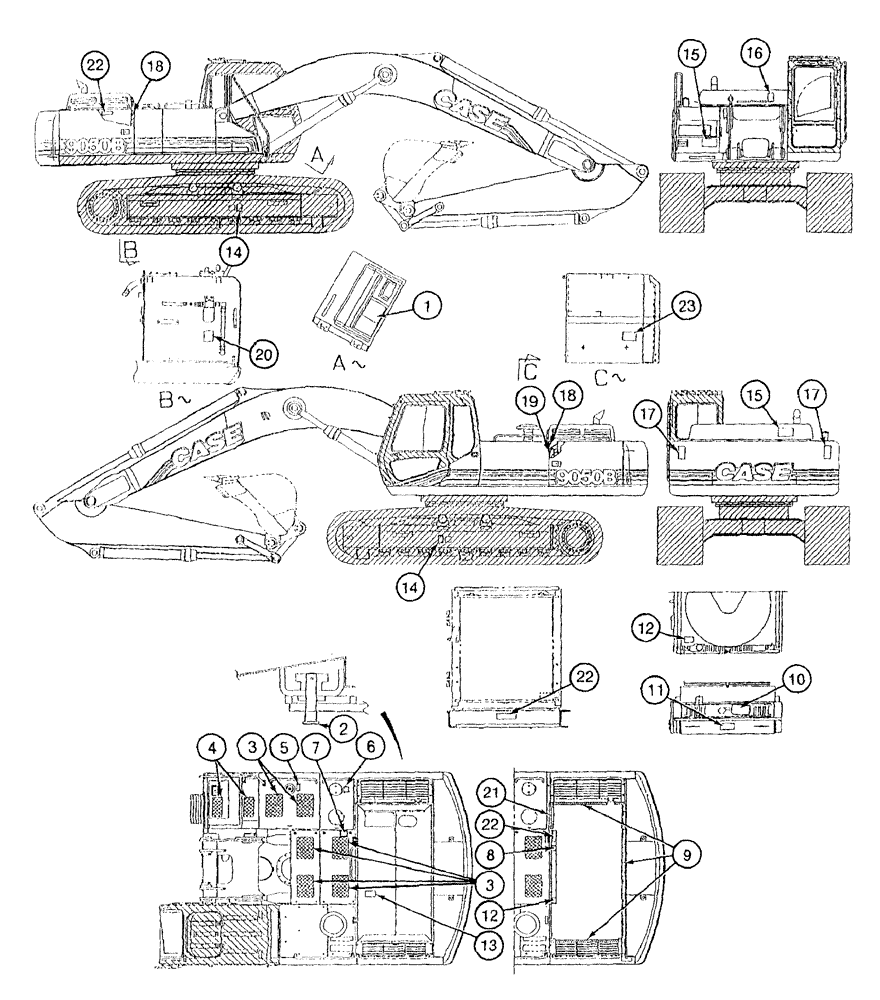

Запчасти Case 9050B (9-146) - DECALS, FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

1

240392A1

DECAL

DECAL - lubrication chart (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

2

162934A1

LARGE PLATE

PLATE, LARGE with adhesive backing, goes on button to release hood support

1шт.

3

162935A1

ANTI-SKID STRIP

TAPE - non-skid

6шт.

4

150108A1

ANTI-SKID STRIP

adhesive

2шт.

5

190489A1

DECAL

DECAL - diesel fuel (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

6

240390A1

DECAL

DECAL - Warning, hot hydraulic fluid (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

7

158287A1

DECAL

DECAL - Danger, starting in gear can cause death (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

8

321-6720

DECAL

Warning, wrong jumper cable connections to starter terminals (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

9

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

1шт.

10

158280A1

DECAL

TAG - antifreeze notice (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

11

321-6701

DECAL

Warning, check and service cooling system (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

12

321-4324

DECAL

Warning, rotating fan and belts (French)

2шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

13

190483A1

DECAL

DECAL - Warning, slippery and unstable surface (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

14

190482A1

DECAL

DECAL - Warning, grease under pressure (French)

2шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

15

158284A1

DECAL

DECAL - Warning, stay away from machine if close to power line (French)

2шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

16

190484A1

DECAL

DECAL - Warning, falling engine hood (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

17

158285A1

DECAL

DECAL - Danger, keep clear of swinging upper (French)

2шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

18

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

2шт.

19

163727A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

20

190479A1

DECAL

DECAL - to check oil level (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

21

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

1шт.

22

190503A1

DECAL

Warning, hot surfaces (French)

3шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

23

321-6719

DECAL

Warning, batteries contain acid and explosive gas (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.

24

191342A1

DECAL

DECAL - lift only (French)

1шт.

REF 1, 5 thru 8, 10 thru 17, 20, 22, 23, 24 and REF 1, 3 thru 8, 13, 14, 15 on figure 9-148 are included in the French language decal kit 176620A1

1шт.
