(9-142) - DECALS, ENGLISH LANGUAGE, OPERATORS COMPARTMENT

Запчасти Case 9050B (9-142) - DECALS, ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

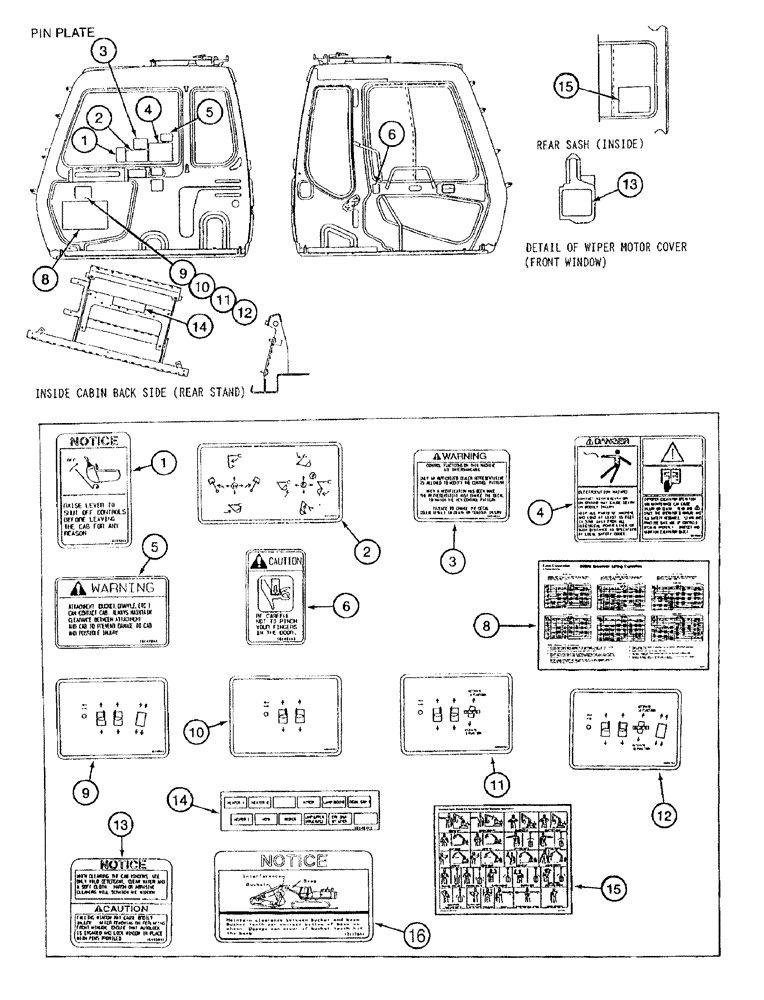

Схема запчастей Case 9050B - (9-142) - DECALS, ENGLISH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
3
5
13
9
12
2
4
14
12
14
11
6
15
13
3
10
6
1
1
5
4
10
11
8
16
15
8
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161732A1

DECAL

DECAL - Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

control pattern

1шт.

3

162140A1

WARNING DECAL

Warning, control functions on this machine are interchangeable

1шт.

4

161469A1

DECAL

DECAL - Danger, electrocution hazard

1шт.

5

161470A1

DECAL

DECAL - Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

DECAL - Caution, be careful not to pinch your fingers

1шт.

8

173002A1

SHIM

DECAL - lift capacities

1шт.

9

161468A1

DECAL

diagram, operating controls

1шт.

10

162185A1

DECAL

DECAL - foot pedal controls

1шт.

11

162186A1

DECAL

DECAL - foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

12

162187A1

DECAL

diagram, operating controls

1шт.

13

161460A1

DECAL

DECAL - Notice, when cleaning the windows/Caution, falling window may cause

1шт.

14

163761A1

DECAL

relay location

1шт.

15

162163A1

DECAL

DECAL - hand signal chart

1шт.

16

171747A1

LABEL

DECAL - boom/bucket interference

1шт.
