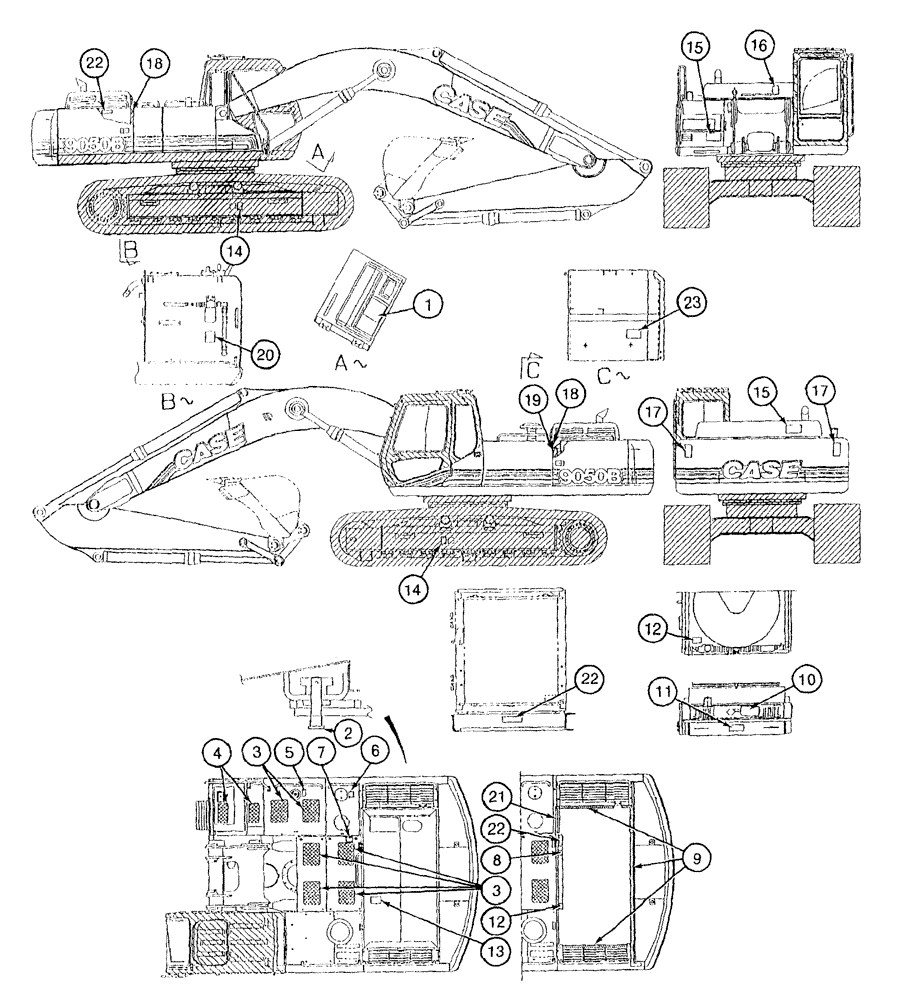

Запчасти Case 9050B (9-140) - DECALS, ENGLISH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

1

162873A1

DECAL

DECAL - lubrication chart

1шт.

2

162934A1

LARGE PLATE

PLATE, LARGE with adhesive backing, goes on button to release hood support

1шт.

3

162935A1

ANTI-SKID STRIP

TAPE - non-skid

6шт.

4

150108A1

ANTI-SKID STRIP

adhesive

2шт.

5

161463A1

DECAL

gas pump

1шт.

6

162872A1

DECAL

DECAL - Warning, hot hydraulic fluid

1шт.

7

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

8

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

9

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

1шт.

10

151796A1

ADHESIVE STRIP

TAG - antifreeze notice

1шт.

11

321-6672

DECAL

Warning, check and service cooling system

1шт.

12

321-3596

DECAL

Warning, rotating fan and belts

2шт.

13

161730A1

DECAL

DECAL - Warning, slippery and unstable surface

1шт.

14

161467A1

DECAL

DECAL - Warning, grease under pressure

2шт.

15

161734A1

WARNING DECAL

Warning, stay away from machine

2шт.

16

161465A1

DECAL

DECAL - Warning, falling engine hood

1шт.

17

151880A1

DECAL

DECAL - Danger, keep clear of swinging upper

2шт.

18

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

2шт.

19

163727A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

20

161733A1

DECAL

DECAL - to check oil level

1шт.

21

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

1шт.

22

162142A1

DECAL

DECAL - Warning, hot surfaces

3шт.

23

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.
