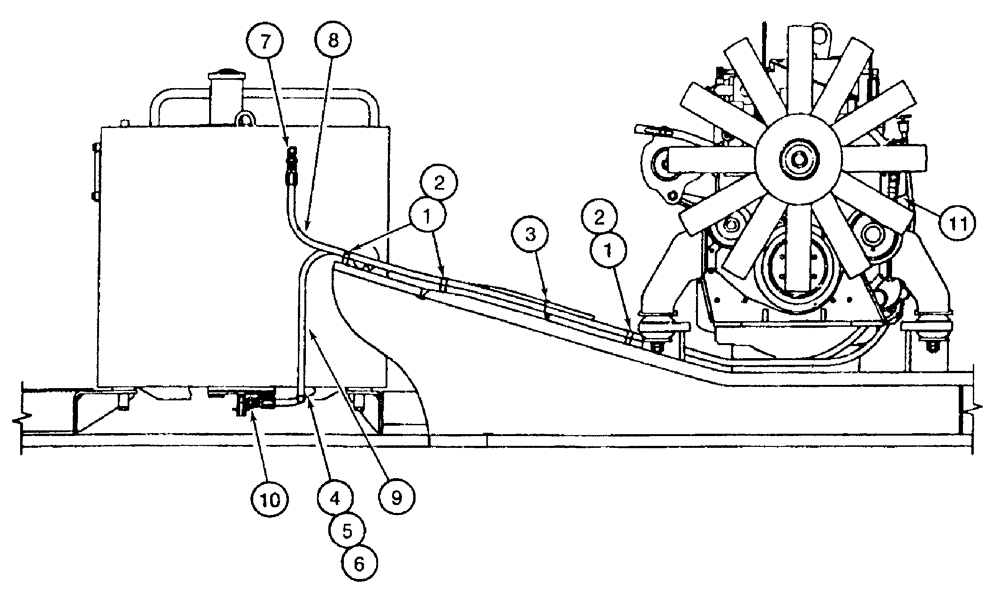

Запчасти Case 9050B (3-004) - FUEL LINES (03) - FUEL SYSTEM

1

157320A1

CLAMP

hose

3шт.

2

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

3шт.

3

170456A1

CABLE TIE

CABLE STRAP tie

3шт.

4

150860A1

COLLAR

BRACKET - support

1шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

6

170456A1

CABLE TIE

CABLE STRAP tie

1шт.

7

170460A1

ELBOW

90 degree

1шт.

8

173052A1

HOSE ASSY.

3000 mm (119 inch) long, fuel return

1шт.

9

173053A1

HOSE ASSY.

4902 mm (193 inch) long, fuel supply

1шт.

10

170458A1

HYDROMETER

ELBOW - special

1шт.

11

90-3941T1

SEPARATOR

1шт.
