Запчасти Case 9050B (9-136) - ESCO BUCKET TOOTH OPTIONS (09) - CHASSIS/ATTACHMENTS

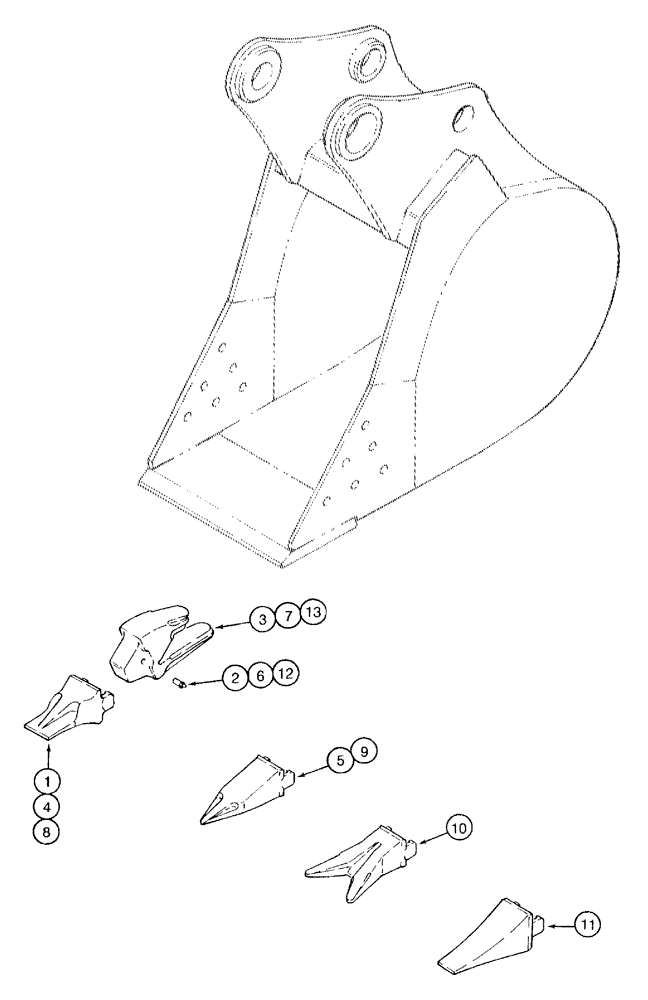

Схема запчастей Case 9050B - (9-136) - ESCO BUCKET TOOTH OPTIONS (09) - CHASSIS/ATTACHMENTS
6
9
2
10
7
11
12
5
3
8
4
1
13

Артикул

Название

Примечание

Количество

1

127560A1

TOOTH

chisel point, 1-1/2 inch tooth shank, for H & H and central fabricators general purpose

1шт.

2

127561A1

LOCK

tooth to shank, pin and plug, 1-1/2 inch tooth shank, for H & H and central fabricators general purpose

1шт.

3

127562A1

ADAPTER

SHANK - tooth, 1-1/2 inch, 1-1/2 inch tooth shank, for H & H and central fabricators general purpose

1шт.

4

127565A1

TOOTH

chisel point, 2 inch tooth shank, for H & H and central fabricators heavy duty and H & H severe duty

1шт.

5

127566A1

TOOTH

tiger point, 2 inch tooth shank, for H & H and central fabricators heavy duty and H & H severe duty

1шт.

6

127567A1

LOCK

tooth to shank, pin and plug, 2 inch tooth shank, for H & H and central fabricators heavy duty and H & H severe duty

1шт.

7

127564A1

ADAPTER

SHANK - tooth, 2 inch, for H & H and central fabricators heavy duty and H & H severe duty

1шт.

8

127569A1

TOOTH

bucket, chisel point, 2-1/2 inch tooth shank, for central fabricators severe duty

1шт.

9

127570A1

TOOTH

bucket, tiger point, 2-1/2 inch tooth shank, for central fabricators severe duty

1шт.

10

127571A1

TOOTH

bucket, twin tiger point, 2-1/2 inch tooth shank, for central fabricators severe duty

1шт.

11

127572A1

TOOTH

bucket, standard point, 2-1/2 inch tooth shank, for central fabricators severe duty

1шт.

12

127573A1

LOCK

tooth to shank, pin and plug, 2-1/2 inch tooth shank, for central fabricators severe duty

1шт.

13

127568A1

ADAPTER

SHANK - tooth, 2-1/2 inch, for central fabricators severe duty

1шт.

Выбрано товаров: 13
