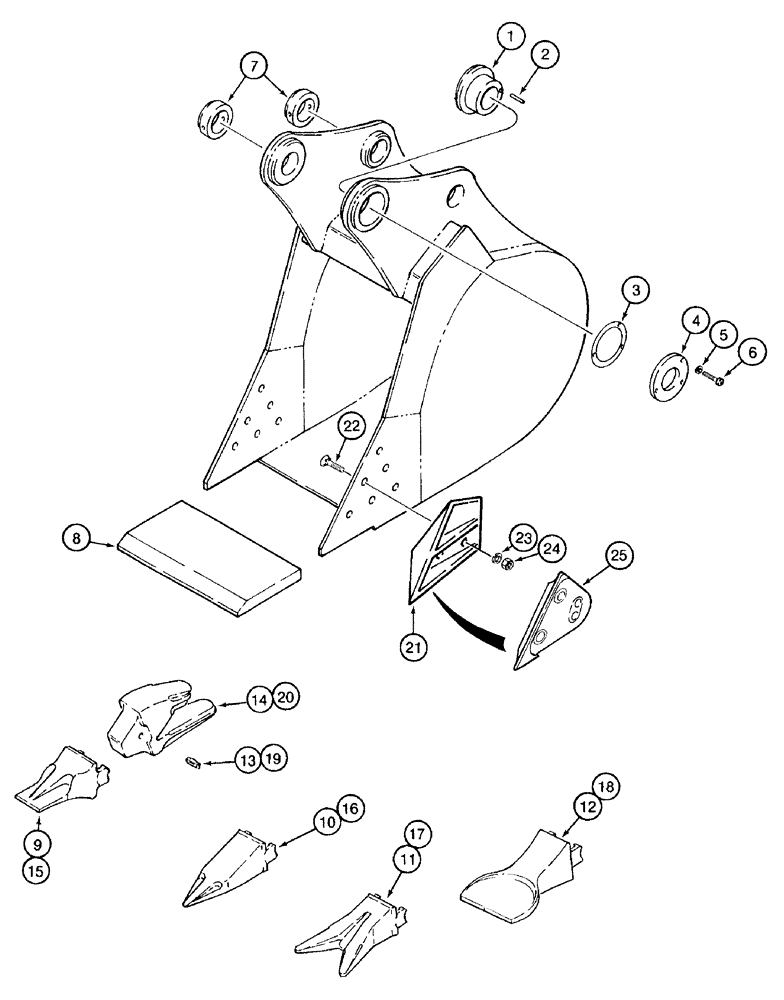

Запчасти Case 9050B (9-130) - MCF BUCKETS, GENERAL PUPOSE AND HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.31 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.57 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.83 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.09 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 2.35 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.62 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.31 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.57 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.83 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.09 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.35 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.62 cu. yd, general purpose and heavy duty

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

254082A1

BUSHING

adjustable, general purpose and heavy duty

1шт.

2

254085A1

PIN

dowel, special, general purpose and heavy duty

1шт.

3

254083A1

SHIM

adjustable bushing, general purpose and heavy duty

6шт.

4

254084A1

PLATE

cover, adjustable bushing, general purpose and heavy duty

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

General Purpose and Heavy Duty

4шт.

6

864-16050

HEX SOC SCREW,M16 x 50mm, Cl 8.8

hex socket, 16 - 2.0 x 50 mm, general purpose and heavy duty

4шт.

7

254080A1

BUSHING

non-adjustable, with locking collar, general purpose and heavy duty

2шт.

8

257037A1

EDGE, CUTTING

center, 762 mm (30 inch) bucket, general purpose and heavy duty

1шт.

8

257038A1

EDGE, CUTTING

center, 914 mm (36 inch) bucket, general purpose and heavy duty

1шт.

8

257039A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket, general purpose and heavy duty

1шт.

8

257040A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket, general purpose and heavy duty

1шт.

8

257041A1

EDGE, CUTTING

center, 1372 mm (54 inch) bucket, general purpose and heavy duty

1шт.

8

257042A1

EDGE, CUTTING

center, 1524 mm (60 inch) bucket, general purpose and heavy duty

1шт.

9

254093A1

TOOTH

standard point, teeth and adapter, general purpose

1шт.

10

254094A1

BUCKET TOOTH

tiger point, teeth and adapter, general purpose

1шт.

11

254096A1

BUCKET TOOTH

twin tiger point, teeth and adapter, general purpose

1шт.

12

254097A1

TOOTH

spade point, 203 mm (8 inch) wide, teeth and adapter, general purpose

1шт.

13

254098A1

BUCKET TOOTH KEY

tooth to shank, 25.7 (1) x 17.8 (11/16) x 94.7 mm (3-3/4 inch), and adapter, general purpose

1шт.

14

254091A1

ADAPTER

SHANK - tooth, and adapter, general purpose

1шт.

15

254100A1

BUCKET TOOTH

standard point, teeth and adapter, general purpose

1шт.

16

254101A1

BUCKET TOOTH

tiger point, teeth and adapter, general purpose

1шт.

17

254102A1

TOOTH

twin tiger point, teeth and adapter, general purpose

1шт.

18

254103A1

TOOTH

spade point, 229 mm (9 inch) wide, teeth and adapter, general purpose

1шт.

19

254104A1

BUCKET TOOTH KEY

tooth to shank, 29.8 (1-3/16) x 19.8 (3/4) x 104.9 mm (4-1/8 inch), and adapter, general pupose

1шт.

20

254099A1

ADAPTER

SHANK - tooth, and adapter, general purpose

1шт.

21

241820A1

EDGE, CUTTING

bucket, right-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

242797A1

EDGE, CUTTING

bucket, left-hand side, 38.1 mm (1-1/2 inch) thick, side cutting edges and wear shroud

1шт.

21

244960A1

EDGE, CUTTING

bucket, right-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

21

244958A1

EDGE, CUTTING

bucket, left-hand side, 50.8 mm (2 inch) thick, side cutting edges and wear shroud

1шт.

22

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting edges and wear shroud

6шт.

23

392-21088

LOCK WASHER,7/8"

side cutting edges and wear shroud 7/8"

6шт.

24

329-1014

NUT,7/8"-9, G8

Side cutting edges and wear shroud

6шт.

25

244962A1

BLADE

wear, bucket, side cutting edges

2шт.
