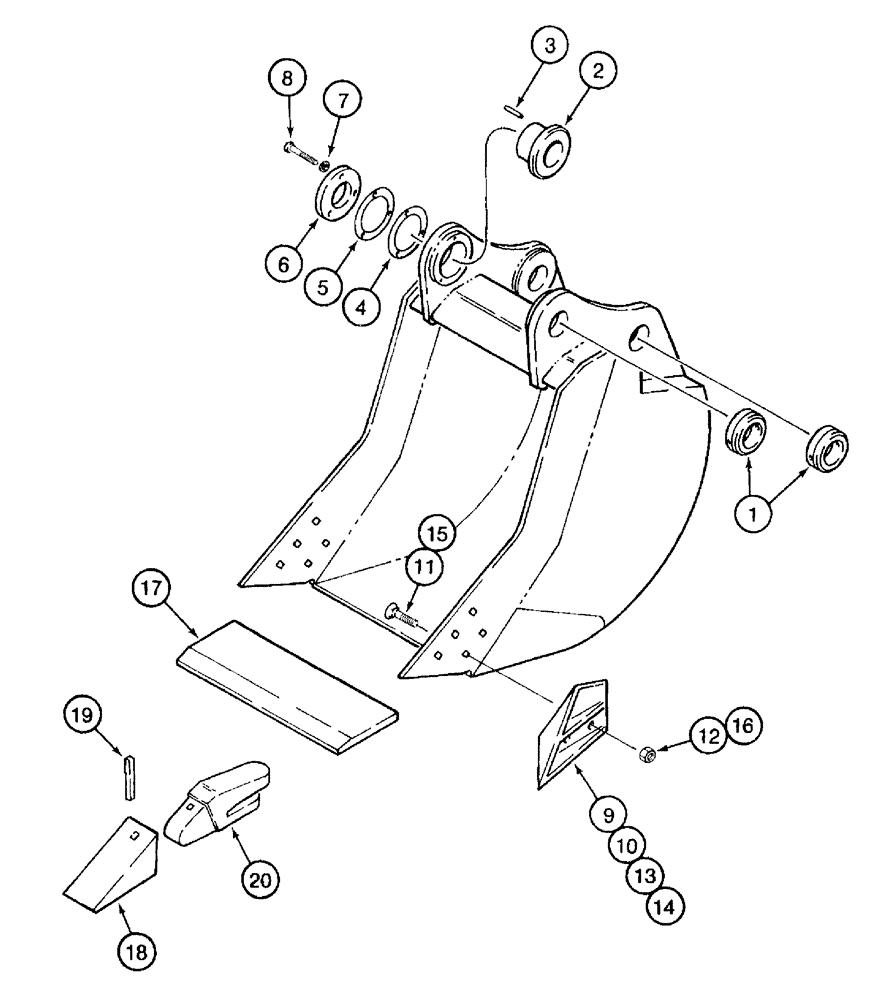

Запчасти Case 9050B (9-128) - H & H BUCKETS, SEVERE DUTY, BUCKET ASSEMBLY - SEVERE DUTY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET ASSEMBLY - 1067 mm (42 inch), with 4 teeth, 1.70 cu. yd

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 1219 mm (48 inch), with 5 teeth, 1.75 cu. yd

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

125674A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

125672A1

BUSHING

bucket, adjustable, includes dowel pin

1шт.

3

125664A1

DOWEL

PIN - special

2шт.

4

125668A1

SHIM

plate mounting

1шт.

5

125669A1

SHIM

plate mounting

1шт.

6

125670A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Includes: Ref. 9 - 12

3шт.

112780A1

EDGE, CUTTING

KIT - side, 4 inch

1шт.

9

125930A1

CUTTER

EDGE - side cutting, left-hand, 102 mm (4 inch)

1шт.

10

125932A1

CUTTER

EDGE - side cutting, right-hand, 102 mm (4 inch)

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

plow, #3 head, 1 NC x 3 inch, grade 8

10шт.

12

232-41316

NUT,1"-8, GC

10шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

side, left-hand, 127 mm (5 inch)

1шт.

14

125936A1

EDGE, CUTTING

side, right-hand, 127 mm (5 inch)

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

plow, #3 head, 1 NC x 3-1/2 inch, grade 8

10шт.

16

232-41316

NUT,1"-8, GC

10шт.

17

125732A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket

1шт.

17

125733A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket

1шт.

18

122677A1

TOOTH

standard point

1шт.

19

122678A1

FASTENER

PIN - flex, standard

1шт.

20

135929A1

ADAPTER

SHANK - tooth, 2 inch

1шт.
