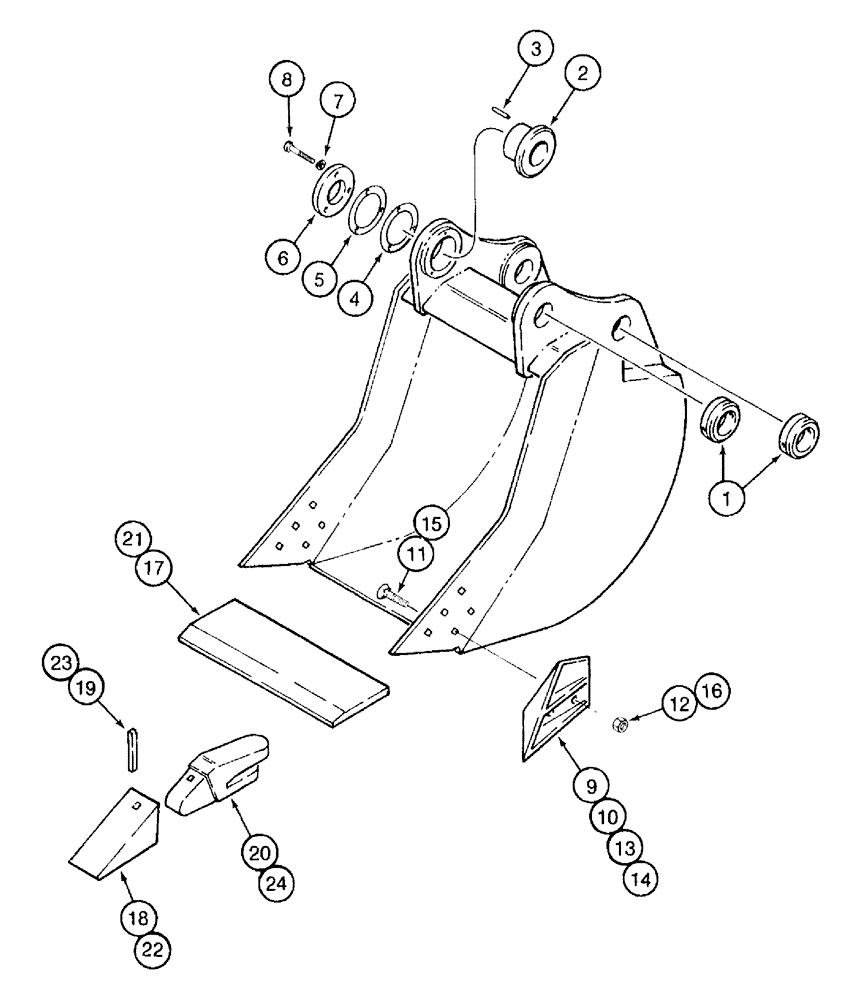

Запчасти Case 9050B (9-124) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, STANDARD AND HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 3 teeth, 1.20 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.49 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.80 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 5 teeth, 2.01 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.30 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.60 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.20 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.40 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.70 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 5 teeth, 1.75 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 1.87 cu. yd, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.64 cu. yd, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.79 cu. yd, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch) with 5 teeth, 2.01 cu. yd, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.05 cu. yd, heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

125674A1

LATCH

BUSHING - bucket, with locking collar, heavy duty, high capacity

2шт.

2

125672A1

BUSHING

bucket, adjustable, heavy duty, high capacity, Includes: Ref. 3

1шт.

3

125664A1

DOWEL

PIN - special, heavy duty, high capacity

2шт.

4

125668A1

SHIM

plate mounting, heavy duty, high capacity

1шт.

5

125669A1

SHIM

plate mounting, heavy duty, high capacity

1шт.

6

125670A1

RETAINER

PLATE - bushing, heavy duty, high capacity

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Includes: Ref. 9 - 12

3шт.

112780A1

EDGE, CUTTING

KIT - side, 4 inch, heavy duty, high capacity

1шт.

9

125930A1

CUTTER

EDGE - side cutting, left-hand, 102 mm (4 inch), heavy duty, high capacity

1шт.

10

125932A1

CUTTER

EDGE - side cutting, right-hand, 102 mm (4 inch), heavy duty, high capacity

1шт.

11

320-21648

CARRIAGE BOLT,#3, 1" - 8 x 3", Gr 8

plow, #3 head, 1 NC x 3 inch, grade 8, heavy duty, high capacity

10шт.

12

232-41316

NUT,1"-8, GC

Heavy duty, high capacity

10шт.

128170A1

HALF BLADE

KIT - edge, side cutting, 5 inch, heavy duty, high capacity, Includes: Ref. 13 - 16

1шт.

13

125934A1

EDGE, CUTTING

side cutting, left-hand, 127 mm (5 inch), heavy duty, high capacity

1шт.

14

125936A1

EDGE, CUTTING

side cutting, right-hand, 127 mm (5 inch), heavy duty, high capacity

1шт.

15

320-21656

CARRIAGE BOLT,#3, 1" - 8 x 3 1/2", Gr 8

plow, #3 head, 1 NC x 3-1/2 inch, grade 8, heavy duty, high capacity

10шт.

16

232-41316

NUT,1"-8, GC

Heavy duty, high capacity

10шт.

17

125720A1

EDGE, CUTTING

center, 762 mm (30 inch) bucket, 1-1/2 inch, general purpose

1шт.

17

125721A1

EDGE, CUTTING

center, 914 mm (36 inch) bucket, 1-1/2 inch, general purpose

1шт.

17

125722A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket, 1-1/2 inch, general purpose

1шт.

17

125723A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket, 1-1/2 inch, general purpose

1шт.

17

125815A1

EDGE, CUTTING

center, 1372 mm (54 inch) bucket, 1-1/2 inch, general purpose

1шт.

17

125725A1

EDGE, CUTTING

center, 1524 mm (60 inch) bucket, 1-1/2 inch, general purpose

1шт.

18

122674A1

TOOTH

standard point, 1-1/2 inch, general purpose

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

19

122675A1

FASTENER

PIN - flex, point to shank, 1-1/2 inch, general purpose

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

19

176553A1

PIN

steel, tooth to shank, this is a direct replacement for 122675A1, 1-1/2 inch, general purpose

1шт.

20

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, 1-1/2 inch, general purpose

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

21

125726A1

EDGE, CUTTING

center, 762 mm (30 inch) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

21

125727A1

EDGE, CUTTING

center, 914 mm (36 inch) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

21

125728A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

21

125729A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

21

125734A1

EDGE, CUTTING

center, 1372 mm (54 inch) bucket, 2 inch, heavy duty, standard and high capacity

1шт.

22

122671A1

TOOTH

standard point, 2 inch, heavy duty, standard and high capacity

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

23

122672A1

FASTENER

PIN - flex, tooth to shank, 2 inch, heavy duty, standard and high capacity

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

23

176554A1

PIN

steel, tooth to shank, this is a direct replacement for 122672A1, 2 inch, heavy duty, standard and high capacity

1шт.

24

122673A1

BUCKET TOOTH SHANK

tooth, 2 inch, 2 inch, heavy duty, standard and high capacity

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.
