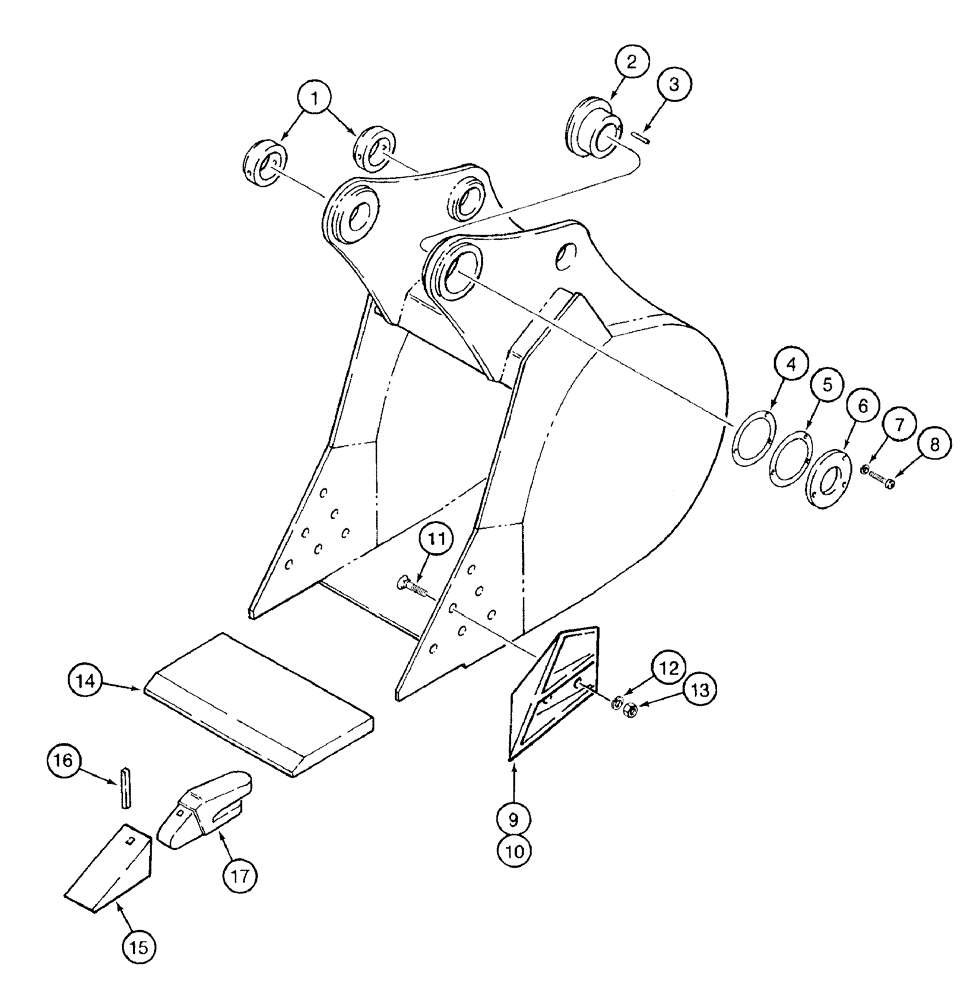

Запчасти Case 9050B (9-122) - GENERAL FABRICATORS BUCKETS, SEVERE DUTY, BUCKET ASSEMBLY - SEVERE DUTY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET ASSEMBLY - 1067 mm (42 inch), with 4 teeth, 1.75 cu. yd

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 1219 mm (48 inch), with 5 teeth, 2.03 cu. yd

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar

2шт.

2

122689A1

BUSHING

bucket, adjustable, includes dowel pin, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, hardened, 1/2 x 1 inch

1шт.

4

122685A1

SHIM

plate mounting, .039 inch thick

1шт.

5

122686A1

SHIM

plate mounting, .02 inch thick

1шт.

6

122687A1

RETAINER

PLATE - bushing

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket, 5/8 NC x 2 inch

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8

6шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125029A1

EDGE, CUTTING

cutting, center, 1067 mm (42 inch) bucket

1шт.

14

125030A1

EDGE, CUTTING

cutting, center, 1219 mm (48 inch) bucket

1шт.

15

122677A1

TOOTH

standard point

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

16

122678A1

FASTENER

PIN - flex, standard

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

17

122679A1

ADAPTER

SHANK - tooth, 2-1/2 inch

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.
