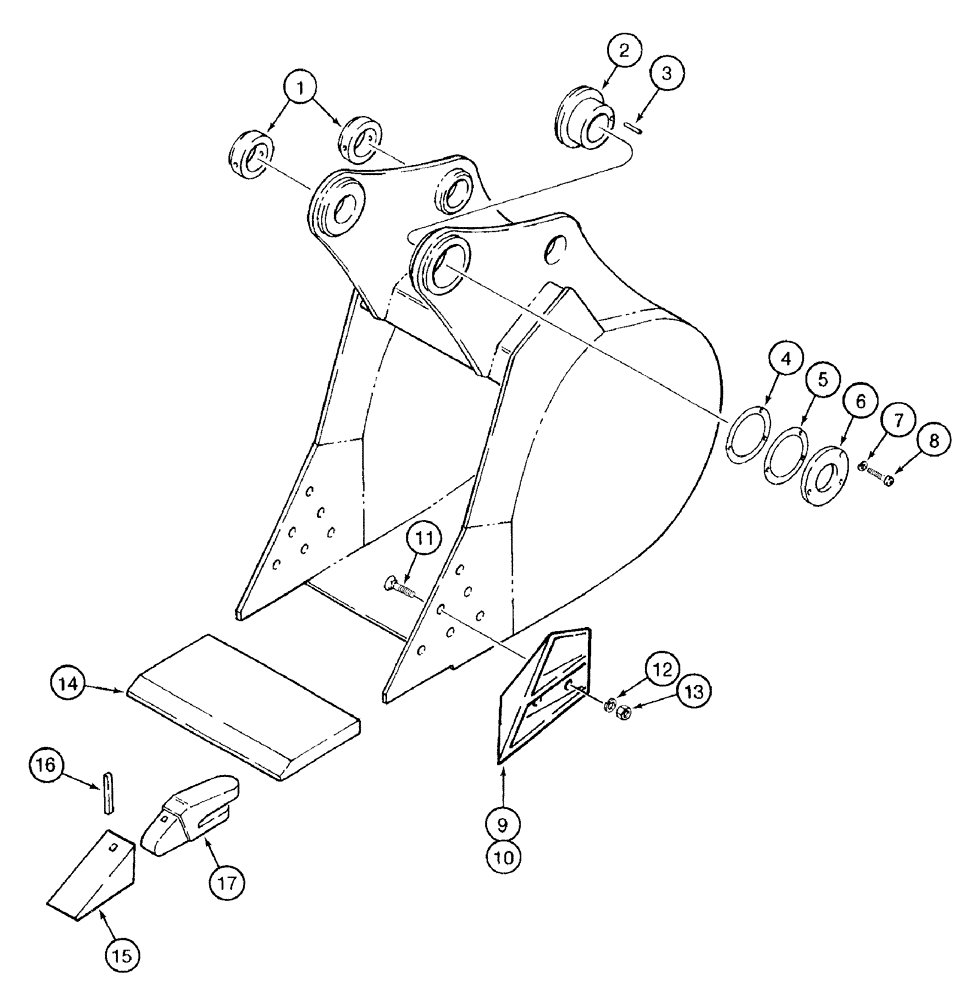

Запчасти Case 9050B (9-118) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, STANDARD AND HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.20 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.48 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.75 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.03 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 2.30 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.59 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.26 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.56 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.85 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.15 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.45 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1524 mm (60 inch), with 7 teeth, 2.74 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.20 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.48 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.75 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.03 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 2.30 cu. yd., general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.26 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.56 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.85 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 2.15 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 6 teeth, 2.45 cu. yd., heavy duty, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

122690A1

LATCH

BUSHING - bucket, with locking collar, heavy duty, high capacity

2шт.

2

122689A1

BUSHING

bucket, adjustable, includes dowel pin, heavy duty, high capacity

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, hardened, 1/2 x 1 inch, heavy duty, high capacity, Includes: Ref. 4

1шт.

4

122685A1

SHIM

plate mounting, .039 inch thick, heavy duty, high capacity

1шт.

5

122686A1

SHIM

plate mounting, .02 inch thick, heavy duty, high capacity

1шт.

6

122687A1

RETAINER

PLATE - bushing, heavy duty, high capacity

1шт.

7

492-11062

BEARING WASHER,5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex socket, 5/8 NC x 2 inch, heavy duty, high capacity

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, heavy duty, high capacity, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, heavy duty, high capacity

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, heavy duty, high capacity

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8, heavy duty, high capacity

6шт.

12

392-21088

LOCK WASHER,7/8"

heavy duty, high capacity 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

6шт.

14

125006A1

EDGE, CUTTING

center, 762 mm (30 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125007A1

EDGE, CUTTING

center, 914 mm (36 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125008A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125009A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125027A1

EDGE, CUTTING

center, 1372 mm (54 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125028A1

EDGE, CUTTING

center, 1524 mm (60 inch) bucket, 1-1/2 inch, all general purpose

1шт.

14

125021A1

EDGE, CUTTING

center, 762 mm (30 inch) bucket, 2 inch, all heavy duty

1шт.

14

125022A1

EDGE, CUTTING

center, 914 mm (36 inch) bucket, 2 inch, all heavy duty

1шт.

14

125023A1

EDGE, CUTTING

center, 1067 mm (42 inch) bucket, 2 inch, all heavy duty

1шт.

14

125024A1

EDGE, CUTTING

center, 1219 mm (48 inch) bucket, 2 inch, all heavy duty

1шт.

14

125025A1

EDGE, CUTTING

center, 1372 mm (54 inch) bucket, 2 inch, all heavy duty

1шт.

14

125026A1

EDGE, CUTTING

center, 1524 mm (60 inch) bucket, 2 inch, all heavy duty

1шт.

15

122674A1

TOOTH

standard point, 2 inch, all heavy duty

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

16

122675A1

FASTENER

PIN - flex, point to shank, 2 inch, all heavy duty

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.

16

176553A1

PIN

steel, tooth to shank, 2 inch, all heavy duty

1шт.

17

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, 2 inch, all heavy duty

1шт.

See Figures 9-134 and 9-136 fpr point, pin and shank options

1шт.
