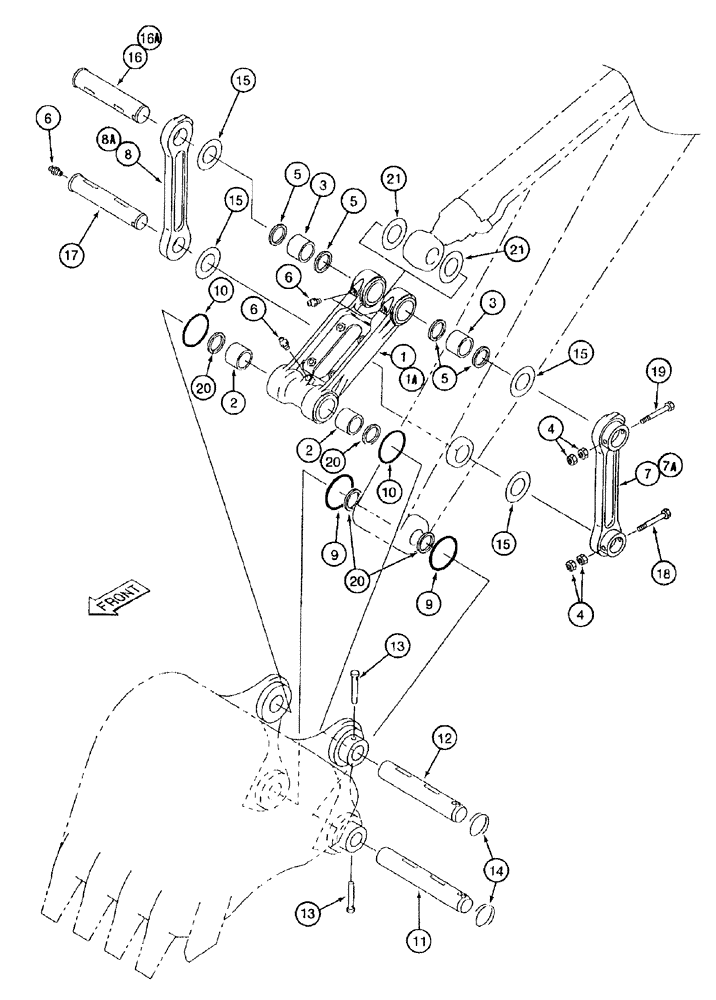

Запчасти Case 9050B (9-116) - LINKAGE AND ARMS (09) - CHASSIS/ATTACHMENTS

1

164443A1

POWER ARM

LINK ASSEMBLY - bucket, standard models, ductile iron

1шт.

1a

164128A1

POWER ARM

LINK ASSEMBLY - bucket, heavy duty models, steel, Includes: Ref. 2 - 3

1шт.

2

151202A1

BUSHING,90mm ID x 105mm OD x 90mm L

Center link, Bucket end

2шт.

3

150754A1

BUSHING,100mm ID x 115mm OD x 113mm L

Center link, Cylinder end

2шт.

4

829-11420

NUT,M20 x 1.5, Cl 10

hex, 20 mm - 1.5, class 10

4шт.

5

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

dust

4шт.

6

153630A1

LUBE NIPPLE

grease, straight

4шт.

7

162695A1

LINKAGE YOKE

ARM - bucket link, left-hand, standard models, ductile iron

1шт.

7a

164129A1

LINKAGE YOKE

ARM - bucket link, left-hand, heavy duty models, steel

1шт.

8

162694A1

LINKAGE YOKE

ARM - bucket link, right-hand, standard models, ductile iron

1шт.

8a

164130A1

LINKAGE YOKE

ARM - bucket link, right-hand, heavy duty models, steel

1шт.

9

162101A1

O-RING

dust

2шт.

10

153689A1

O-RING

seal

2шт.

11

173111A1

PIN

attaching, standard

1шт.

11

169286A1

PIN,90mm OD x 693mm L

attaching, heavy duty

1шт.

12

153782A1

PIN

center link, standard

1шт.

12

169287A1

PIN,90mm OD x 655.5mm L

center link, heavy duty

1шт.

13

153650A1

PIN,20mm OD x 134mm L

PIN - locking

2шт.

14

153651A1

RING

retaining

2шт.

15

158453A1

SHIM

plate

4шт.

16

151177A1

PIN

attaching, 503 mm (19-3/4 inch) long, arm end, standard models, ductile steel

1шт.

16a

158468A1

PIN

attaching, 503 mm (19-3/4 inch) long, arm end, heavy duty, steel

1шт.

17

173114A1

PIN

attaching, link arms at arm, standard

1шт.

17

151179A1

PIN

attaching, link arms at arm, heavy duty

1шт.

18

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

19

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

hex, 20 - 1.5 x 180 mm, class 10.9

1шт.

20

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

dust

4шт.

21

158459A1

SHIM,81mm ID x 150mm OD x 1.2mm Thk

.05 inch thick

2шт.
