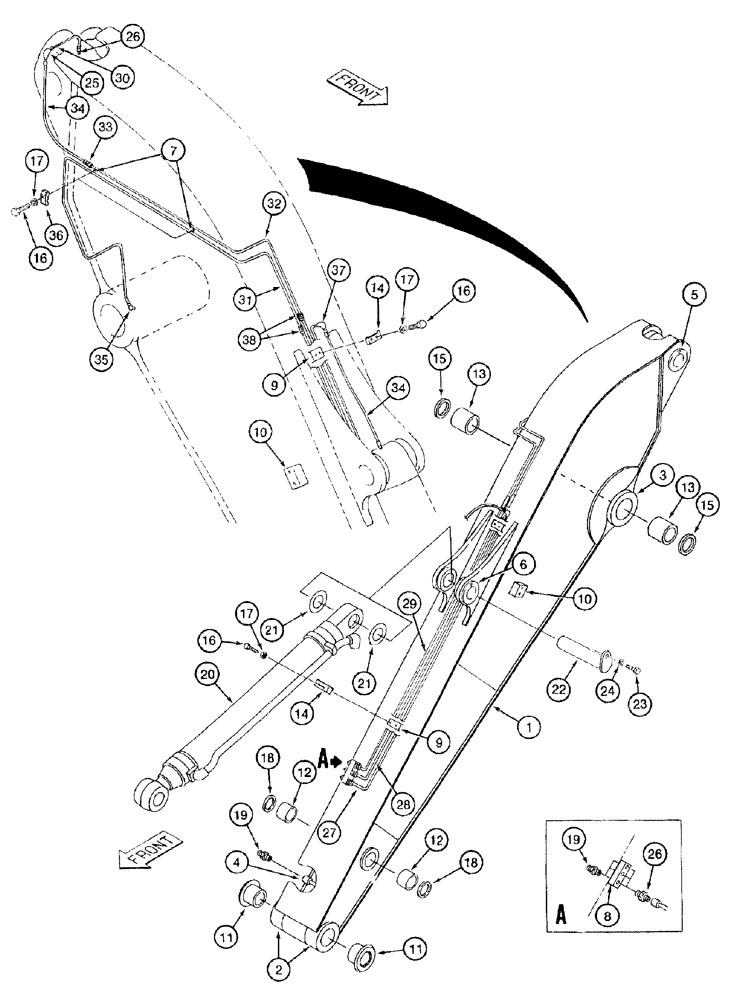

Запчасти Case 9050B (9-114) - ARM AND CYLINDER, 4.03 M (13 FOOT 3 INCH) ARM (09) - CHASSIS/ATTACHMENTS

1

173641A1

DIPPER

excavator, 4.03 m (13 ft 3 inch) long, Serial Range: -EAC0501270

1шт.

1

173906A1

ARM ASSY.

excavator, 4.03 m (13 ft 3 inch) long, Includes: Ref. 2 - 13, Start Serial: EAC0501270

1шт.

2

NSS

NOT SOLD SEPARAT

BOSS - arm, bucket end

2шт.

3

NSS

NOT SOLD SEPARAT

BOSS - arm, cast, boom end

1шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - special

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - arm cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - bucket cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

BAR - base

3шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - manifold, lubrication

1шт.

9

NSS

NOT SOLD SEPARAT

BAR - base

2шт.

10

NSS

NOT SOLD SEPARAT

BAR - base

2шт.

11

173112A1

BUSHING,90mm ID x 185mm OD x 100mm L

arm, bucket end

2шт.

12

173113A1

BUSHING

arm, at link

2шт.

13

173119A1

BUSHING,110mm ID x 140mm OD x 110mm L

arm, boom mount

2шт.

14

151497A1

CLAMP

lubrication line, triple type

2шт.

15

162103A1

SEAL,110mm ID x 125mm OD x 5mm Thk

dust

2шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

dust

2шт.

19

153630A1

LUBE NIPPLE

grease, straight

4шт.

20

173012A1

CYLINDER ASSY.

140 (5-1/2) ID x 1275 mm (50-1/4 inch) stroke, bucket, see figure 8-192

1шт.

21

151241A1

ADJUSTING PLATE

SHIM - bucket cylinder

2шт.

22

173117A1

PIN

mounting

1шт.

23

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20 - 2.5 x 30 mm, class 10.9

1шт.

24

170219A1

WASHER

special

1шт.

25

153696A1

ELBOW

90 degree

1шт.

26

152599A1

MULTIPOLE CONNECTOR

straight, special

4шт.

27

153797A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

28

153796A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

29

153795A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

30

153800A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

31

153798A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

32

153799A1

TUBE,6 mm ID, 8 mm OD

lubrication

1шт.

33

152032A1

UNION

CONNECTOR - straight

1шт.

34

152362A1

HOSE,530.00 mm

Nylon, Lubrication

2шт.

35

152627A1

ELBOW

90 degree, special

1шт.

36

153774A1

CLAMP

double lubrication line

2шт.

37

153695A1

ELBOW

90 degree

1шт.

38

153694A1

UNION

CONNECTOR - straight, special

2шт.

16

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
