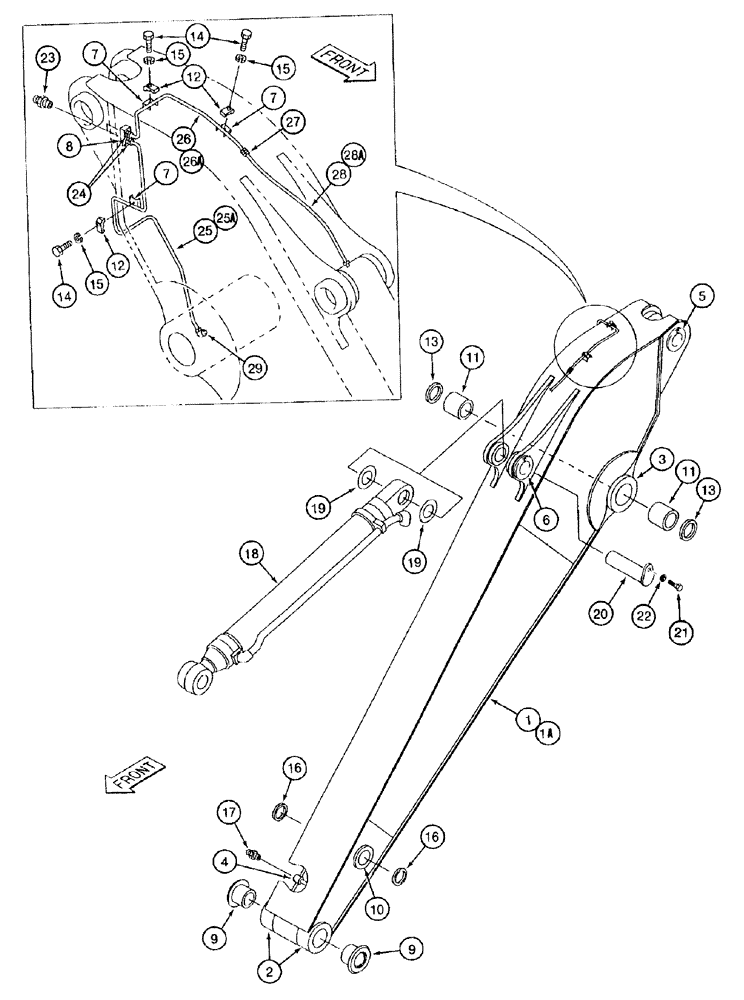

Запчасти Case 9050B (9-112) - ARM AND BUCKET CYLINDER, 2.63 M (8 FOOT 8 INCH) AND 3.23 M (10 FOOT 7 INCH) ARMS (09) - CHASSIS/ATTACHMENTS

1

173642A1

DIPPER

ARM - excavator, 2.63 m (8 ft 8 inch) long, Serial Range: -EAC0501270

1шт.

1

173904A1

ARM ASSY.

excavator, 2.63 m (8 ft 8 inch) long, Start Serial: EAC0501270

1шт.

1a

173639A1

ADHESIVE

excavator, 3.23 m (10 ft 7 inch) long, Serial Range: -EAC0501270

1шт.

1a

173900A1

ARM ASSY.

excavator, 3.23 m (10 ft 7 inch) long, Includes: Ref 2 - 11, Start Serial: EAC0501270

1шт.

2

NSS

NOT SOLD SEPARAT

BOSS - arm, bucket end

2шт.

3

NSS

NOT SOLD SEPARAT

BOSS - arm, cast, boom end

2шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - special

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - cylinder mount

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - pin securing

1шт.

7

NSS

NOT SOLD SEPARAT

BAR - base

3шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - manifold, lubrication

1шт.

9

173112A1

BUSHING,90mm ID x 185mm OD x 100mm L

arm, bucket end

2шт.

10

173113A1

BUSHING

arm, at link

2шт.

11

173119A1

BUSHING,110mm ID x 140mm OD x 110mm L

arm, boom mount

2шт.

12

168377A1

CLAMP

lubrication line, single type

3шт.

13

162103A1

SEAL,110mm ID x 125mm OD x 5mm Thk

dust

2шт.

15

892-11008

LOCK WASHER,8mm ID

3шт.

16

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

dust

2шт.

17

153630A1

LUBE NIPPLE

grease, straight

1шт.

18

173012A1

CYLINDER ASSY.

140 (5-1/2) ID x 1275 mm (50-1/4 inch) stroke, bucket, see figure 8-192

1шт.

19

151241A1

ADJUSTING PLATE

SHIM - bucket cylinder

2шт.

20

173117A1

PIN

mounting

1шт.

21

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20 - 2.5 x 30 mm, class 10.9

1шт.

22

170219A1

WASHER

special

1шт.

23

153631A1

LUBE NIPPLE,1/8"-27 NPT

grease, 45 degree

2шт.

24

152599A1

MULTIPOLE CONNECTOR

straight, special

2шт.

25

153793A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication, for 2.63 m (8 ft 8 inch) long arm

1шт.

25a

151519A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication, for 3.23 m (10 ft 7 inch) long arm

1шт.

26

153792A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication, for 2.63 m (8 ft 8 inch) long arm

1шт.

26a

151718A1

TUBE ASSY.,6 mm ID, 8 mm OD

lubrication, for 3.23 m (10 ft 7 inch) long arm

1шт.

27

152032A1

UNION

CONNECTOR - straight

1шт.

28

153698A1

HOSE

370 mm (14-1/2 inch) long, nylon, for 2.63 m (8 ft 8 inch) long arm

1шт.

28a

152362A1

HOSE,530.00 mm

For 3.23 m (10 ft 7 inch) long arm

1шт.

29

152627A1

ELBOW

90 degree, special

1шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
