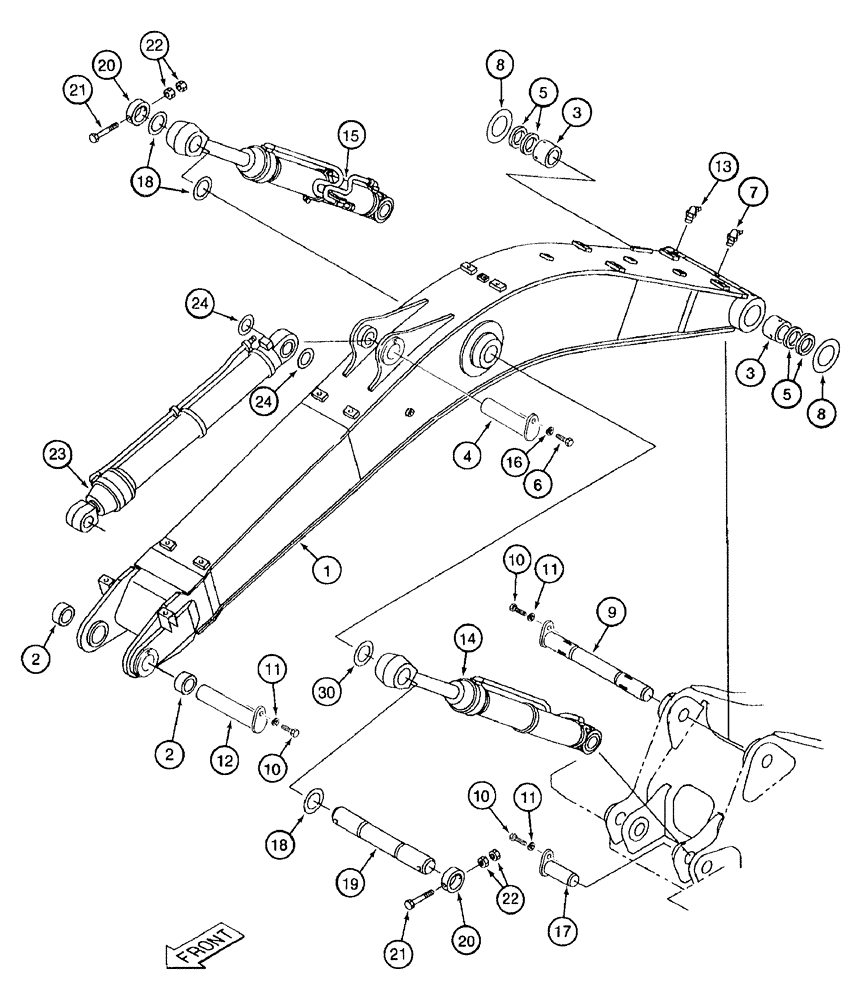

Запчасти Case 9050B (9-110) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS/ATTACHMENTS

173459A1

BOOM

ASSEMBLY - excavator, 6.45 m (21 ft 2 in) long, Serial Range: -EAC0501270

1шт.

173890A1

BOOM

ASSEMBLY - excavator, 6.45 m (21 ft 2 in) long, Includes: Ref. 1 - 3, Start Serial: EAC0501270

1шт.

1

NSS

NOT SOLD SEPARAT

BOOM - excavator, 6.45 m (21 ft 2 in) long

1шт.

2

151214A1

BUSHING

Boom, Arm mount end

2шт.

3

173199A1

BUSHING

boom, boom mount end

2шт.

4

173116A1

PIN

arm cylinder

2шт.

5

162103A1

SEAL,110mm ID x 125mm OD x 5mm Thk

dust

4шт.

6

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20 - 2.5 x 30 mm, class 10.9

2шт.

7

153630A1

LUBE NIPPLE

grease, straight

1шт.

8

151236A1

SHIM

SHIM - base of boom

1шт.

9

173034A1

PIN

boom attaching

1шт.

10

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

hex, full threads, 20 - 2.5 x 30 mm, class 10.9

4шт.

11

173118A1

SPACER

WASHER - special

4шт.

12

173505A1

PIN

attaching

1шт.

13

153631A1

LUBE NIPPLE,1/8"-27 NPT

grease, 45 degree

2шт.

14

162984A1

CYLINDER ASSY.

140 (5-1/2) ID x 1480 mm (58-1/4 inch) stroke, boom, see figure 8-188

1шт.

15

162983A1

CYLINDER ASSY.

140 (5-1/2) ID x 1480 mm (58-1/4 inch) stroke, boom, see figure 8-188

1шт.

16

173118A1

SPACER

WASHER - special

2шт.

17

173035A1

PIN

mounting

2шт.

18

162102A1

SHIM

plate, 1.27 mm (.05 inch) thick

4шт.

19

151187A1

PIN

mounting

1шт.

20

150762A1

RING, LOCKING

RING, LOCK COLLAR - pin retaining

2шт.

21

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

hex, 20 - 1.5 x 190 mm, class 10.9

2шт.

22

829-11420

NUT,M20 x 1.5, Cl 10

hex, 20 mm - 1.5, class 10

4шт.

23

173507A1

CYLINDER ASSY.

160 (6-5/16) ID x 1733 mm (68-1/4 inch) stroke, arm, see figure 8-190

1шт.

24

151247A1

ADJUSTING PLATE

SHIM - base of arm cylinder

2шт.
