(9-108) - BOOM LUBRICATION LINES, P.I.N. EAC0501270 AND AFTER

Запчасти Case 9050B (9-108) - BOOM LUBRICATION LINES, P.I.N. EAC0501270 AND AFTER (09) - CHASSIS/ATTACHMENTS

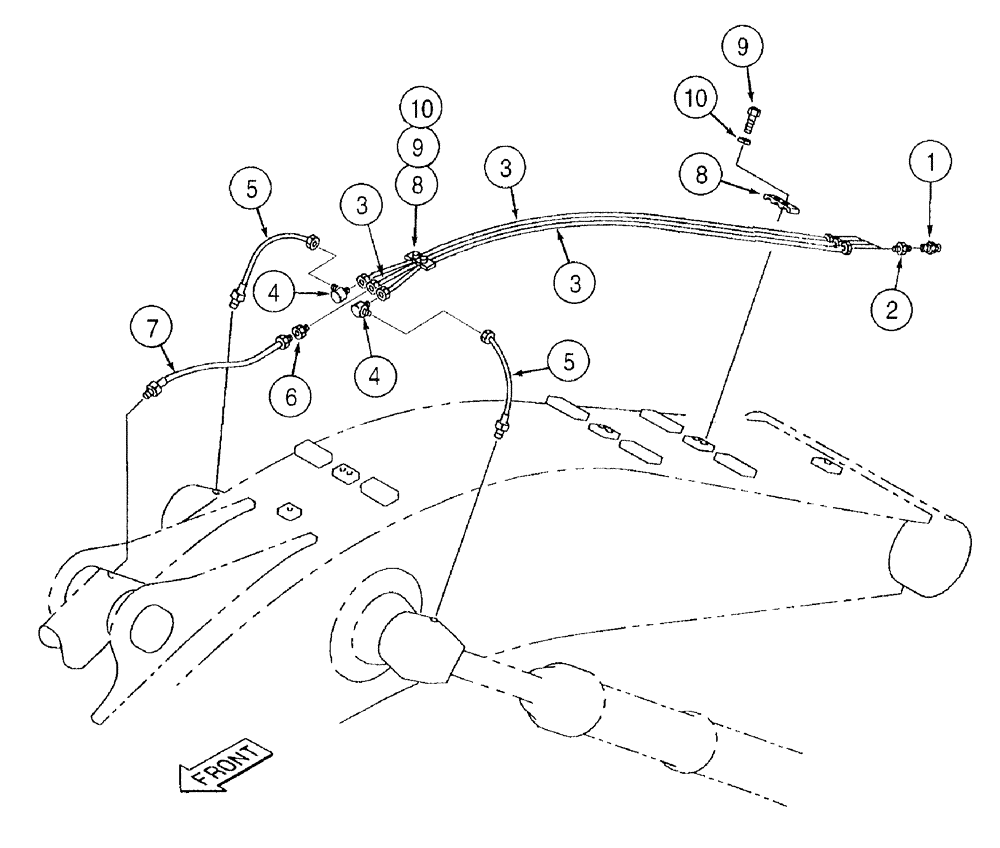

Схема запчастей Case 9050B - (9-108) - BOOM LUBRICATION LINES, P.I.N. EAC0501270 AND AFTER (09) - CHASSIS/ATTACHMENTS
3
8
4
9
3
10
7
5
5
10
4
3
2
9
8
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153630A1

LUBE NIPPLE

grease, straight

3шт.

2

152599A1

MULTIPOLE CONNECTOR

straight, special

3шт.

3

173898A1

TUBE

grease lubrication

3шт.

4

153695A1

ELBOW

90 degree

2шт.

5

152432A1

HOSE,6.3mm ID x 770mm L

Grease lubrication to boom cylinder rod eye

2шт.

6

152032A1

UNION

CONNECTOR - straight

1шт.

7

173899A1

HOSE ASSY.

grease lubrication, to arm cylinder rod eye

1шт.

8

151497A1

CLAMP

lubrication line, triple type

2шт.

10

892-11008

LOCK WASHER,8mm ID

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
