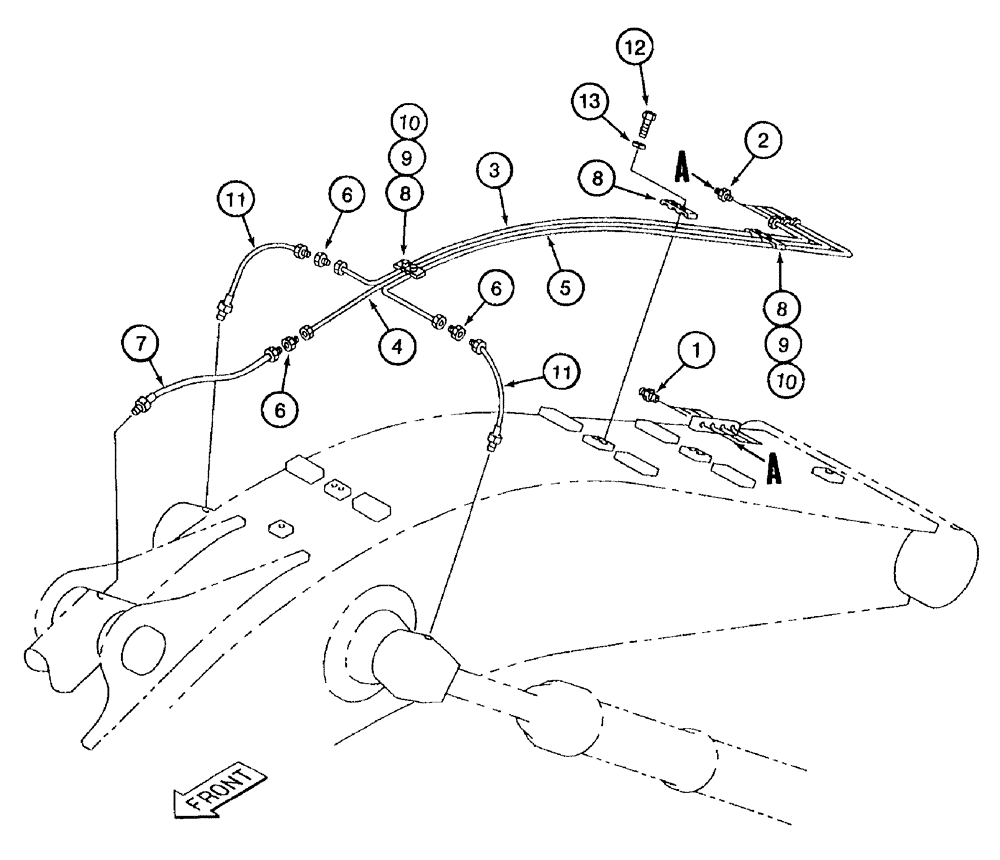

Запчасти Case 9050B (9-106) - BOOM LUBRICATION LINES, PRIOR TO P.I.N. EAC0501270 (09) - CHASSIS/ATTACHMENTS

1

153630A1

LUBE NIPPLE

grease, straight

3шт.

2

152599A1

MULTIPOLE CONNECTOR

straight, special

3шт.

3

162601A1

TUBE

grease lubrication

1шт.

4

162602A1

TUBE ASSY.,6 mm ID, 8 mm OD

grease lubrication

1шт.

5

162603A1

TUBE

grease lubrication

1шт.

6

152032A1

UNION

CONNECTOR - straight

3шт.

7

151508A1

HOSE,700.00 mm

Nylon, Lubrication

1шт.

8

151497A1

CLAMP

lubrication line, triple type

3шт.

10

892-11008

LOCK WASHER,8mm ID

4шт.

11

152776A1

HOSE,560.00 mm

Nylon, Lubrication

2шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

9

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
