Запчасти Case 9050B (9-100) - CAB FAN AND MOUNTING, PRIOR TO P.I.N EAC0501182 (09) - CHASSIS/ATTACHMENTS

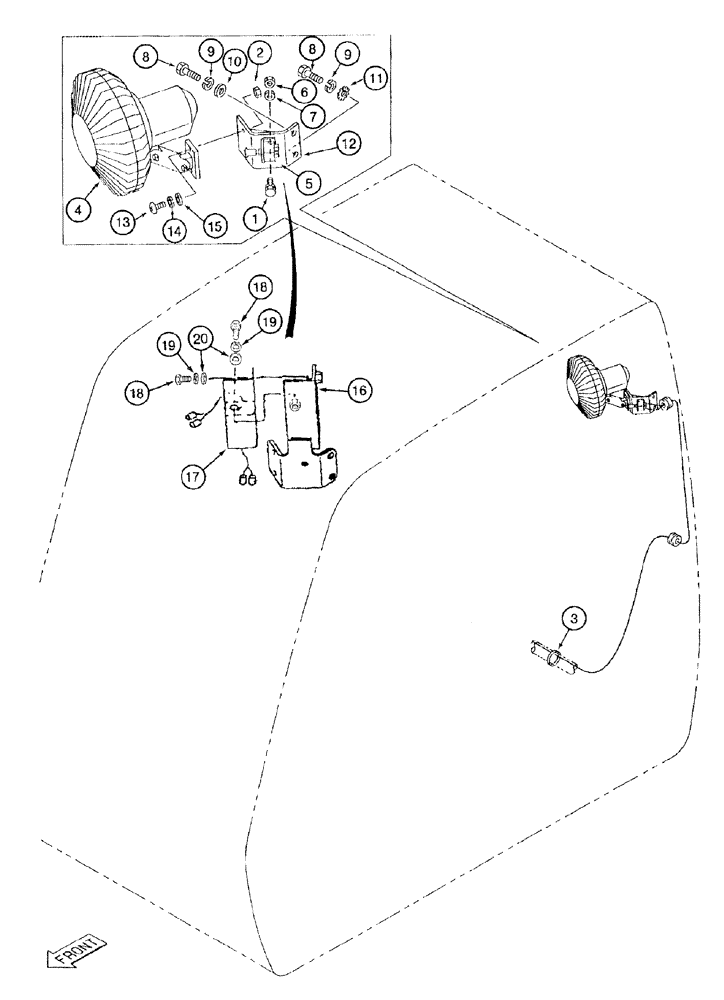

Схема запчастей Case 9050B - (9-100) - CAB FAN AND MOUNTING, PRIOR TO P.I.N EAC0501182 (09) - CHASSIS/ATTACHMENTS
2
18
1
14
19
11
3
8
10
13
5
17
9
12
19
18
7
9
4
20
8
16
15
6

Артикул

Название

Примечание

Количество

1

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

1шт.

2

829-1405

NUT,M5, Cl 10

2шт.

3

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

157689A1

FAN

ASSEMBLY - cab, Includes: Ref. 4 - 7

1шт.

4

157694A1

FAN

cab

1шт.

5

152843A1

IGNITION SWITCH

cab fan

1шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

7

892-11006

LOCK WASHER,M6

1шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

12

165744A1

BRACKET

fan mounting, models without noise filter

1шт.

13

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

14

892-11005

LOCK WASHER,M5

2шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

16

165744A1

BRACKET

fan mounting

1шт.

17

159338A1

RESISTOR

FILTER - noise, if used

1шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

19

892-11008

LOCK WASHER,8mm ID

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Special

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 21
