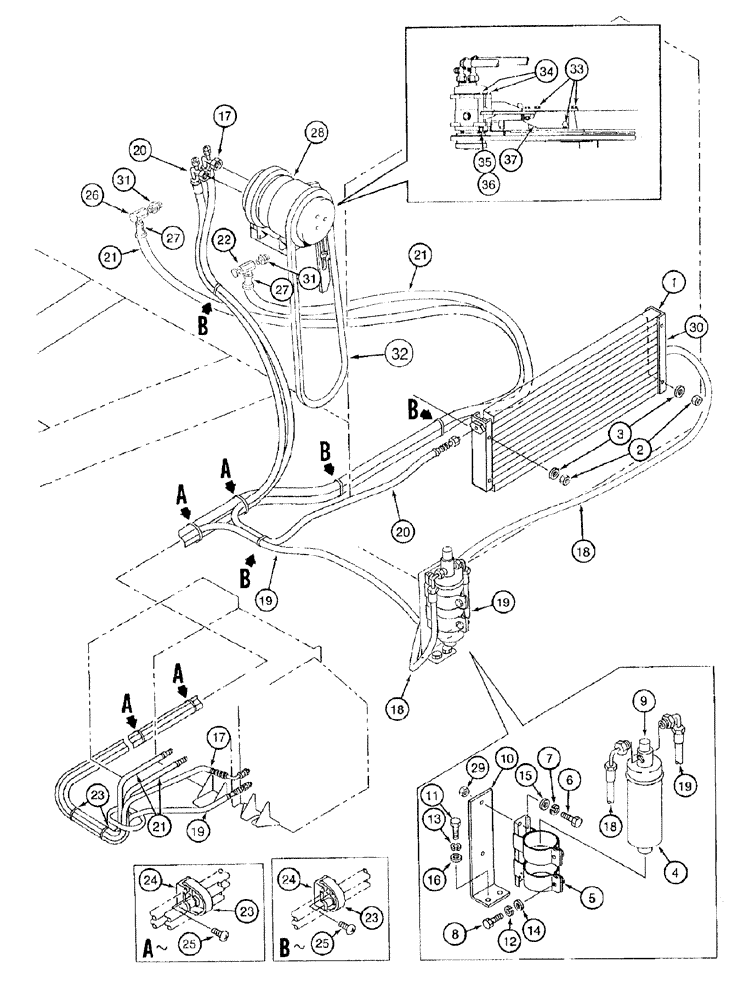

Запчасти Case 9050B (9-098) - AIR CONDITIONING WITH HEATER AND HOSES, P.I.N. EAC0501122 THRU EAC0501165 (09) - CHASSIS/ATTACHMENTS

1

173675A1

CONDENSER

air conditioner

1шт.

2

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

4

173680A1

RECEIVER-DRYER

air conditioning

1шт.

4a

173914A1

HARNESS

wire, receiver-dryer to main harness, not shown

1шт.

5

170815A1

BRACKET

receiver-drier

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

7

892-11008

LOCK WASHER,8mm ID

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

9

170667A1

SWITCH

binary

1шт.

9a

171488A1

SWITCH

binary, not shown

1шт.

10

170815A1

BRACKET

receiver-drier

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

170819A1

HOSE ASSY.

5486 mm (216 inch) long

1шт.

18

173701A1

HOSE ASSY.

condenser to receiver dryer

1шт.

19

170821A1

HOSE ASSY.

3962 mm (156 inch) long

1шт.

20

170818A1

HOSE ASSY.

3962 mm (156 inch) long

1шт.

21

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

21a

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 5800 mm (228-11/32 inch) long, not shown

1шт.

22

171031A1

STEM

hose

1шт.

23

170308A1

BAND

STRAP - tie

6шт.

24

150860A1

COLLAR

BRACKET - support

5шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

26

171030A1

VALVE

shutoff

1шт.

27

170328A1

CLAMP

special

4шт.

28

170668A1

COMPRESSOR

air conditioner

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

30

173703A1

BRACKET

PANEL - condenser

2шт.

30a

173704A1

BRACKET

PANEL - condenser mounting, not shown

2шт.

30b

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Not shown

4шт.

30c

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Not shown

4шт.

31

171029A1

BUSHING

reducer

2шт.

32

282448A1

BELT

Drive, Compressor

1шт.

34

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

425-106

NUT,3/8"-16, Cl 5

2шт.

37

173260A1

BRACKET

compressor, mounting

1шт.

33

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
