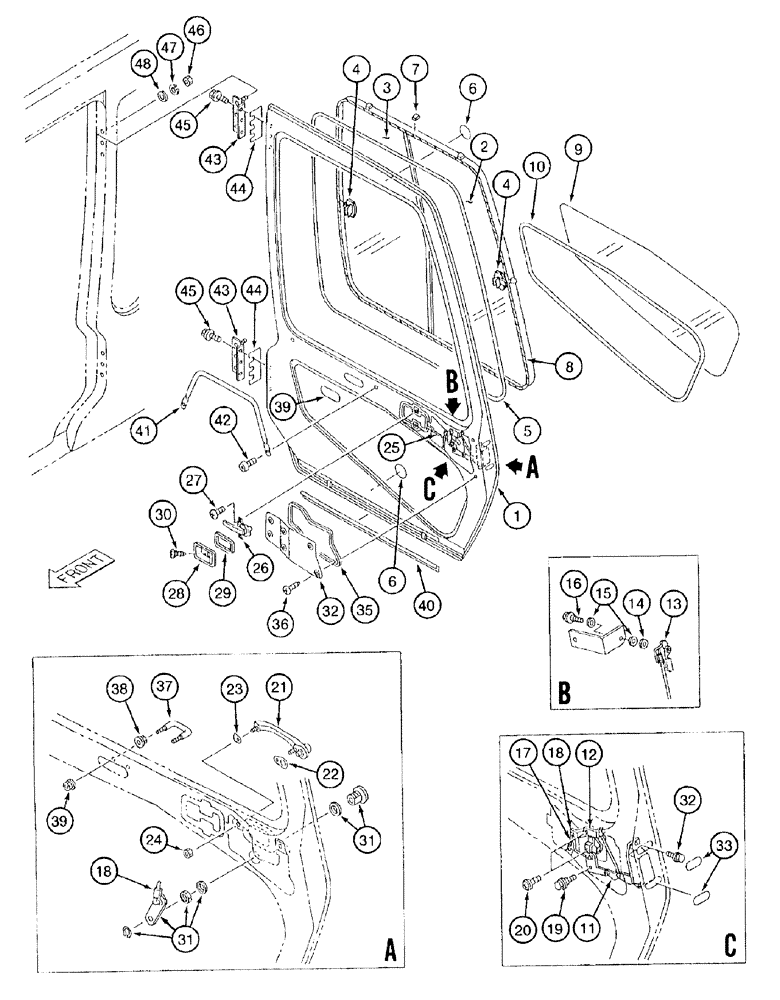

Запчасти Case 9050B (9-092) - CAB DOOR (09) - CHASSIS/ATTACHMENTS

166114A1

CAB

ASSEMBLY - operator's, includes all parts on figures 9-80 thru 9-88

1шт.

166158A1

DOOR ASSY.

cab, replaces 162170A1, Includes: Ref. 1 - 48

1шт.

1

167464A1

CABIN DOOR

cab, Replaces 159587A1

1шт.

162173A1

WINDOW ASSY

upper, Includes: Ref. 2 - 4

1шт.

In the text between Ref. 1 and Ref. 2 is 162173A1 upper window assy. The strip that runs vertically down the center of the window (strip that separates the two sliding windows as they pass each other) is not serviced separately.

1шт.

2

162180A1

WINDOW

sliding, plastic, front

1шт.

3

162181A1

WINDOW

sliding, plastic, rear

1шт.

4

162829A1

LOCK

window

2шт.

5

159549A1

SEAL

TRIM - window

1шт.

6

159573A1

DOOR SEAL

BUMPER - doorstop

2шт.

7

159543A1

SPACER

sash

8шт.

8

159590A1

DOOR SEAL

rubber, window frame, left-hand

1шт.

9

162182A1

WINDOW

plastic, door, lower

1шт.

10

159551A1

WEATHERSTRIP

STRIP - weather

1шт.

11

159554A1

LATCH ASSY.

LOCK - door

1шт.

12

159555A1

SUPPORT

angled strap, link mounting

1шт.

13

159560A1

LEVER

LINK - connecting, outer handle

1шт.

14

159582A1

WASHER

special

1шт.

15

159583A1

WASHER

special

2шт.

16

159584A1

FLANGE BOLT,Shldr

flange, special

1шт.

17

159559A1

LATCH

LOCK - manual

1шт.

18

167466A1

LEVER

PIVOT - rod, door handle, replaces 159556A1

2шт.

19

159574A1

FLANGE BOLT,Shldr

flange, special

1шт.

20

159545A1

SELF-TAP SCREW

self-tapping, special

2шт.

21

166159A1

HANDLE

door, outer

1шт.

22

159567A1

SPACER

SEAT - handle mounting

1шт.

23

159568A1

SPACER

SEAT - handle mounting

1шт.

24

159585A1

NUT

flange, special

2шт.

25

159557A1

THREADED ROD

LINK - connecting

1шт.

26

159563A1

HANDLE

door, inner

1шт.

27

159589A1

SCREW,Pan Hd

pan head, special

2шт.

28

159561A1

BEZEL

COVER - inside handle, door

1шт.

29

159562A1

LINING

GASKET - cover

1шт.

30

159576A1

SELF-TAP SCREW,Oval Hd

self-tapping, special

1шт.

31

167465A1

KIT

LOCK ASSEMBLY - outer keyed, replaces 159558A1

1шт.

32

161377A1

BOLT

special, door lever

4шт.

33

159572A1

SEAL

latch mounting

2шт.

34

159552A1

COVER

PANEL - access, door latch

1шт.

35

159553A1

DOOR SEAL

panel

1шт.

36

159545A1

SELF-TAP SCREW

Replaces 159577A1

6шт.

37

159570A1

U-BOLT

BOLT "U" special

1шт.

38

159579A1

NUT

special

4шт.

39

159571A1

GROMMET

rubber

1шт.

40

159588A1

DOOR SEAL

rubber

1шт.

41

159569A1

HANDLE

grab

1шт.

42

159586A1

BOLT,Hex Skt, M10 x 1.5 x 25mm

special

2шт.

43

159564A1

HINGE

door

2шт.

44

159565A1

ADJUSTING PLATE

SHIM - hinge mounting

2шт.

45

159544A1

BOLT

rubber stopper, special

6шт.

46

159578A1

NUT

special

6шт.

47

159580A1

LOCK WASHER

lock

6шт.

48

159581A1

WASHER

flat

6шт.
