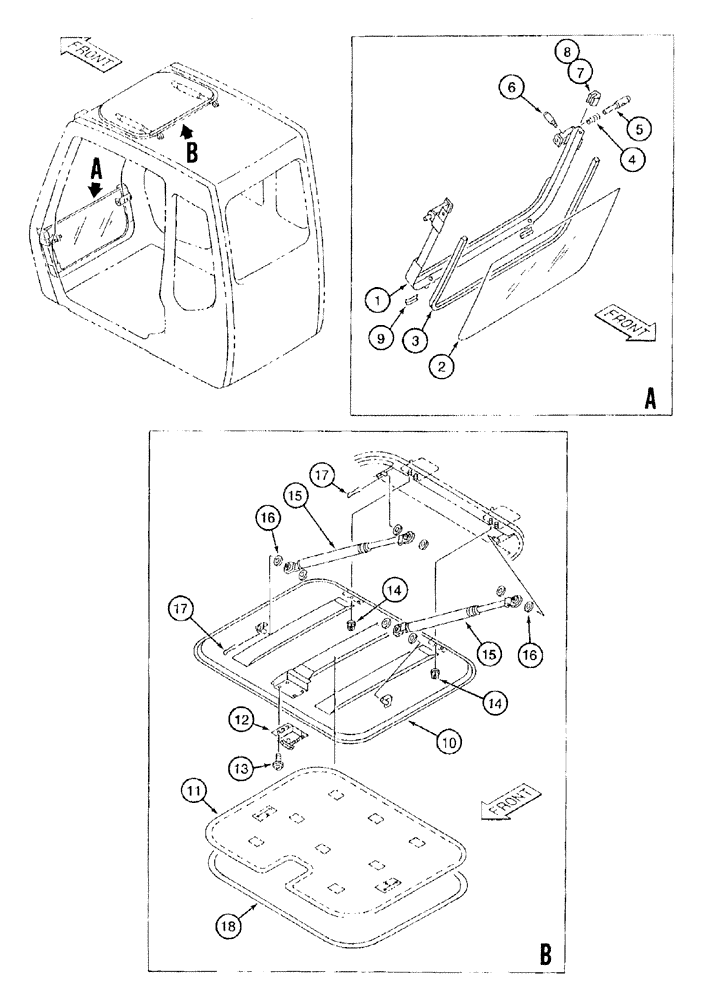

Запчасти Case 9050B (9-088) - CAB LOWER FRONT WINDOW AND ROOF PANEL ASSEMBLY (09) - CHASSIS/ATTACHMENTS

166114A1

CAB

ASSEMBLY - operator's, includes all parts on figures 9-80 thru 9-88 and 9-92, Includes: Ref. 1 - 18

1шт.

165942A1

WINDOW ASSY

lower front, Includes: Ref. 1 - 9

1шт.

1

161443A1

WINDOW FRAME

front, lower

1шт.

2

162174A1

GLASS

WINDOW - plastic

1шт.

3

167458A1

SEAL, GLASS

weather, replaces 161444A1

1шт.

4

161436A1

SPRING

compression-type

2шт.

5

161437A1

STEM

PIN - special

2шт.

6

161438A1

LEVER

HANDLE - lock pin

2шт.

7

161445A1

SEAL

special

1шт.

8

161446A1

SEAL

special

1шт.

9

161447A1

TAPE

weather stripping

2шт.

162171A1

ROOF

PANEL ASSEMBLY - hinged, Includes: Ref. 10 - 17

1шт.

10

161449A1

ROOF

PANEL - hinged, clear plastic

1шт.

11

161450A1

INSULATOR

PAD - roof panel

1шт.

12

161451A1

LATCH ASSY.

window

1шт.

13

161452A1

SCREW

special, window latch

4шт.

14

161453A1

FLANGE NUT

hex, flange, special

4шт.

15

168666A1

SHOCK ABSORBER

gas, roof panel, also order (2) 168667A1 collar, ref 15A

2шт.

15a

168667A1

COLLAR

special, shock mounting, not shown

4шт.

16

161389A1

WASHER

flat, special

8шт.

17

161455A1

PIN, SPLIT (COTTER)

PIN, COTTER CLIP - hair

4шт.

18

161335A1

SEAL

RUBBER SEAL hinged roof panel

1шт.
