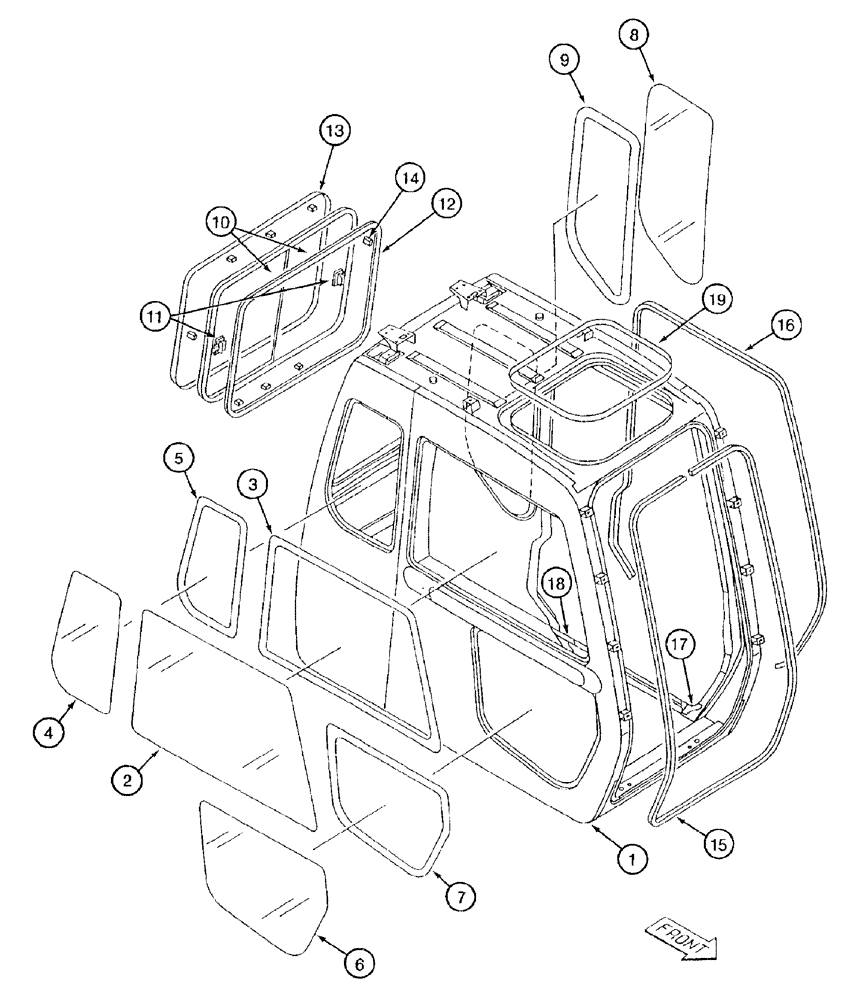

Запчасти Case 9050B (9-080) - CAB WINDOWS AND SEALS (09) - CHASSIS/ATTACHMENTS

166114A1

CAB

ASSEMBLY - operator's, includes all parts on figures 9-80 thru 9-88 and 9-92, Includes: Ref. 1 - 19

1шт.

1

164949A1

CAB

operator's, for service, order 164948A1 cab assembly

1шт.

2

162175A1

GLASS

tempered, right-hand, upper, center

1шт.

3

161325A1

SEALING STRIP

STRIP - weather

1шт.

4

162177A1

GLASS

tempered, right-hand, upper, rear

1шт.

5

161326A1

SEAL, GLASS

STRIP - weather

1шт.

6

162176A1

GLASS

tempered, right-hand, lower, front

1шт.

7

161327A1

SEAL, GLASS

STRIP - weather

1шт.

8

162179A1

GLASS

tempered, left-hand, upper, rear

1шт.

9

161328A1

SEAL, GLASS

STRIP - weather

1шт.

162168A1

WINDOW ASSY

SASH - rear, Includes: Ref. 10 - 11

1шт.

10

162178A1

GLASS

WINDOW - plastic

2шт.

11

162829A1

LOCK

window, rear windows

2шт.

12

161329A1

SEAL

cushion, window

1шт.

13

165947A1

ORNAMENTAL STRIP

TRIM - special, window

1шт.

14

159543A1

SPACER

sash

8шт.

15

161331A1

SEAL

RUBBER SEAL front window

1шт.

16

161332A1

DOOR SEAL

RUBBER SEAL door

1шт.

17

161333A1

CAP

end, front

1шт.

18

161334A1

CAP

end, rear

1шт.

19

161335A1

SEAL

RUBBER SEAL

1шт.
