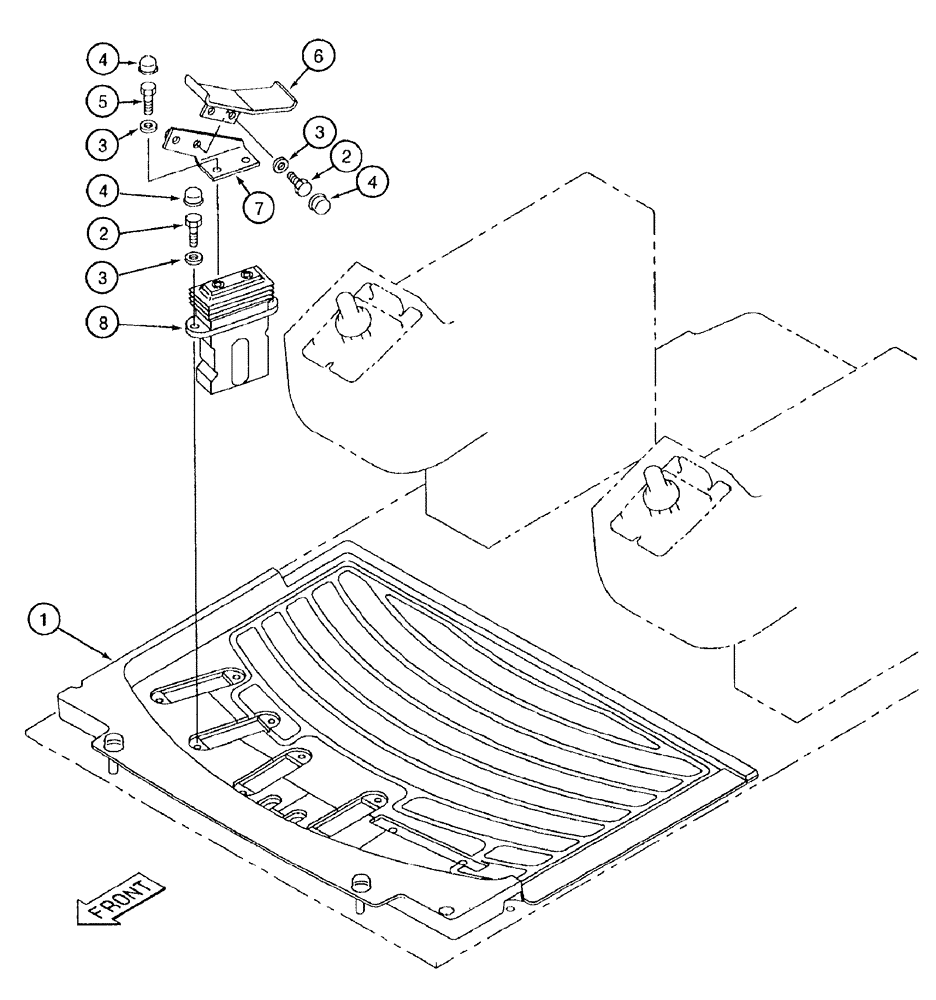

Запчасти Case 9050B (9-078) - AUXILIARY HYDRAULIC CONTROLS, PEDAL AND FLOORMAT (09) - CHASSIS/ATTACHMENTS

1

162362A1

FLOOR MAT

prior to P.I.N. EAC0501123, Serial Range: -EAC0501123

1шт.

1

165722A1

FLOOR MAT

P.I.N. EAC0501123 and after, Start Serial: EAC0501123

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

6шт.

4

159488A1

CAP

special

6шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

6

162963A1

PEDAL

auxiliary hydraulic control

1шт.

7

161843A1

BRACKET

pedal mounting

1шт.

8

162079A1

CONTROL BLOCK

ASSEMBLY - remote control, auxiliary hydraulic equipment, see figue 8-154

1шт.
