(9-076) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. EAC0501123 AND AFTER

Запчасти Case 9050B (9-076) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. EAC0501123 AND AFTER (09) - CHASSIS/ATTACHMENTS

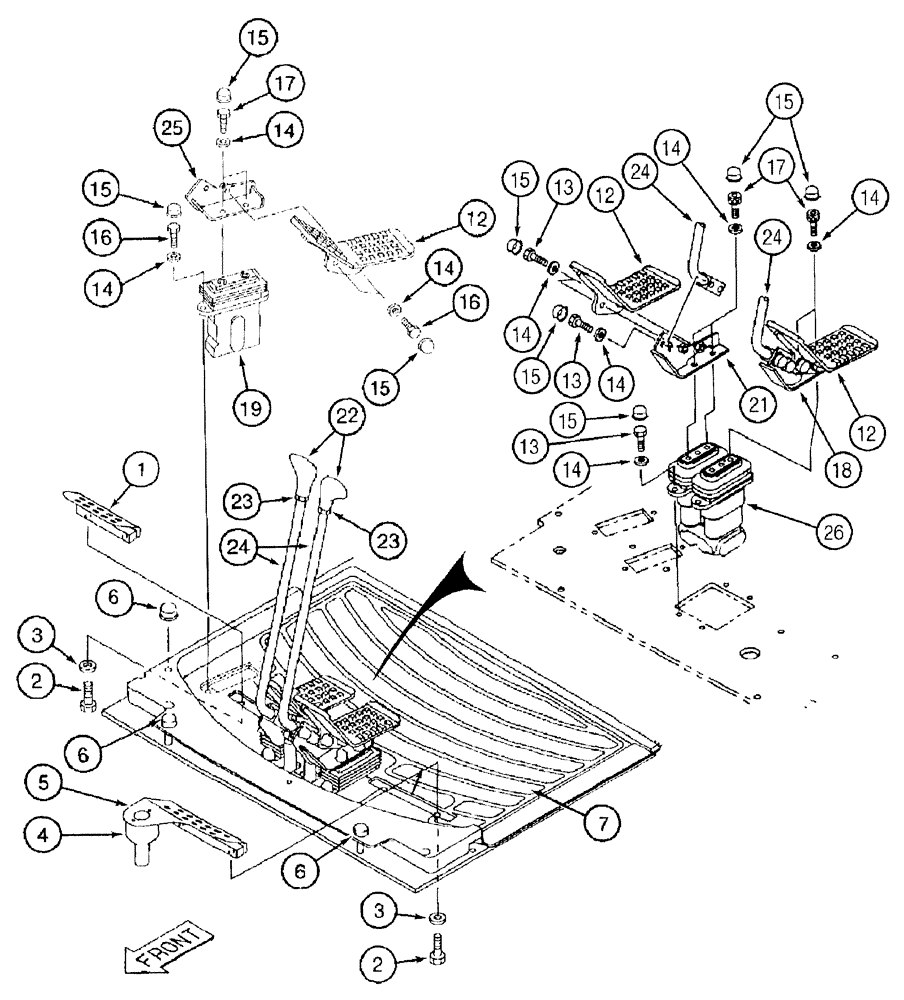

Схема запчастей Case 9050B - (9-076) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. EAC0501123 AND AFTER (09) - CHASSIS/ATTACHMENTS
3
22
2
15
15
17
17
26
21
7
14
1
16
23
12
13
6
14
13
15
6
15
16
15
24
12
12
5
14
14
14
3
13
23
24
19
14
6
15
24
4
14
25
15
14
2
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159265A1

SUPPORT

FOOTREST - right-hand

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

159267A1

COVER

travel speed selector switch

1шт.

5

159266A1

SUPPORT

FOOTREST - left-hand

1шт.

6

159489A1

CAP

special

3шт.

7

REF

INSTRUCTION

MAT - floor, see figure 9-72

1шт.

12

159030A1

PEDAL

foot control

3шт.

13

150552A1

BOLT,High Strength, Hex, M10 x 25mm

hex, 10-1.5 x 25 mm, class 10.9

12шт.

14

150604A1

WASHER

special

22шт.

15

159488A1

CAP

special

22шт.

16

150552A1

BOLT,High Strength, Hex, M10 x 25mm

hex, 10-1.5 x 25 mm, class 10.9

4шт.

17

165404A1

BOLT,Hex Skt, M10 x 20mm

special

6шт.

18

165402A1

BRACKET

pedal and valve mounting, left-hand

1шт.

19

162079A1

CONTROL BLOCK

ASSEMBLY - remote control, see figure 8-154

1шт.

21

165403A1

BRACKET

pedal and valve mounting, right-hand

1шт.

22

165805A1

KNOB

control lever

2шт.

23

150373A1

NUT

hex, 12 mm - 1.25, class 12.9

2шт.

24

159261A1

LEVER

control

2шт.

25

161843A1

BRACKET

pedal mounting

1шт.

26

165193A1

VALVE

ASSEMBLY - remote control, parts list figure 8-156

1шт.
