Запчасти Case 9050B (9-074) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. EAC0501122 (09) - CHASSIS/ATTACHMENTS

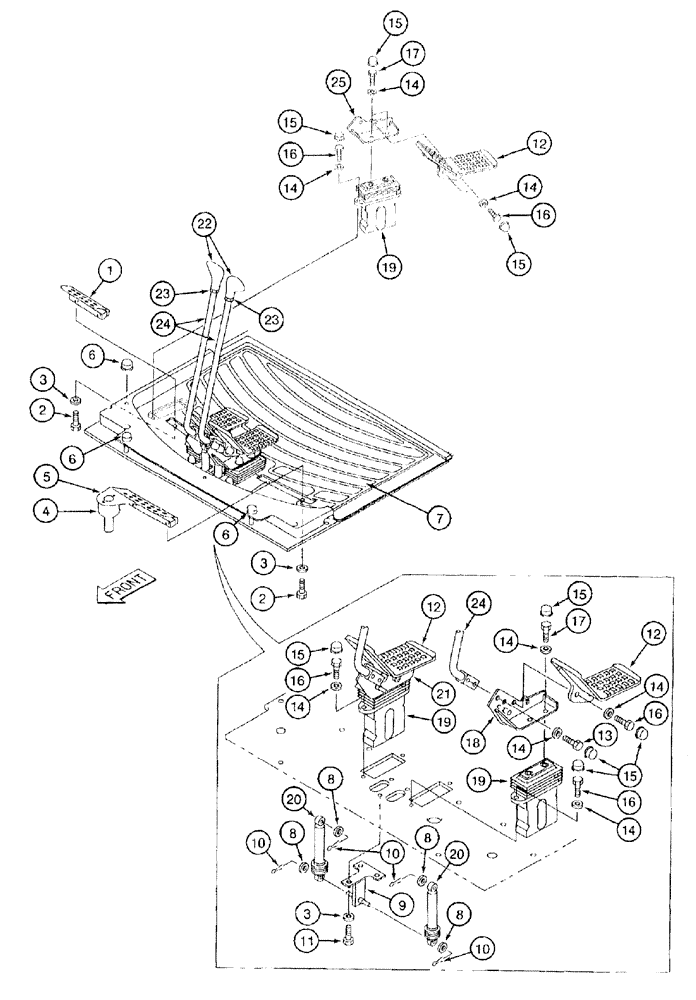

Схема запчастей Case 9050B - (9-074) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. EAC0501122 (09) - CHASSIS/ATTACHMENTS
17
23
14
5
8
10
16
2
14
6
16
15
14
6
24
19
10
20
14
8
16
25
15
10
22
12
20
19
7
3
12
16
24
8
8
6
17
1
15
14
19
18
16
14
15
15
9
14
21
12
2
4
14
23
3
3
13
11
15

Артикул

Название

Примечание

Количество

1

159265A1

SUPPORT

FOOTREST - right-hand

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

159267A1

COVER

travel speed selector switch

1шт.

5

159266A1

SUPPORT

FOOTREST - left-hand

1шт.

6

159489A1

CAP

special

3шт.

7

REF

INSTRUCTION

MAT - floor, see figure 9-72

1шт.

9

159263A1

SUPPORT

damper mounting

1шт.

10

153077A1

COTTER PIN

CLIP - hair pin type

4шт.

11

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

3шт.

12

159030A1

PEDAL

foot control

3шт.

13

150555A1

BOLT,High Strength, Hex, M10 x 30mm

hex, 10 - 1.5 x 30 mm, class 10.9

4шт.

14

150604A1

WASHER

special

22шт.

15

159488A1

CAP

special

16шт.

16

150552A1

BOLT,High Strength, Hex, M10 x 25mm

hex, 10 - 1.5 x 25 mm, class 10.9

12шт.

17

150548A1

BOLT,High Strength, Hex, M10 x 20mm

hex, 10 - 1.5 x 20 mm, class 10.9

6шт.

18

159259A1

SUPPORT

pedal and valve mounting, left-hand

1шт.

19

162079A1

CONTROL BLOCK

ASSEMBLY - remote control, see figure 8-154

3шт.

20

159264A1

SHOCK ABSORBER

valve

2шт.

21

159258A1

SUPPORT

pedal and valve mounting, right-hand

1шт.

22

165805A1

KNOB

control lever

2шт.

23

150373A1

NUT

hex, 12 mm - 1.25, class 12.9

2шт.

24

159261A1

LEVER

control

2шт.

25

161843A1

BRACKET

pedal mounting

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 25
