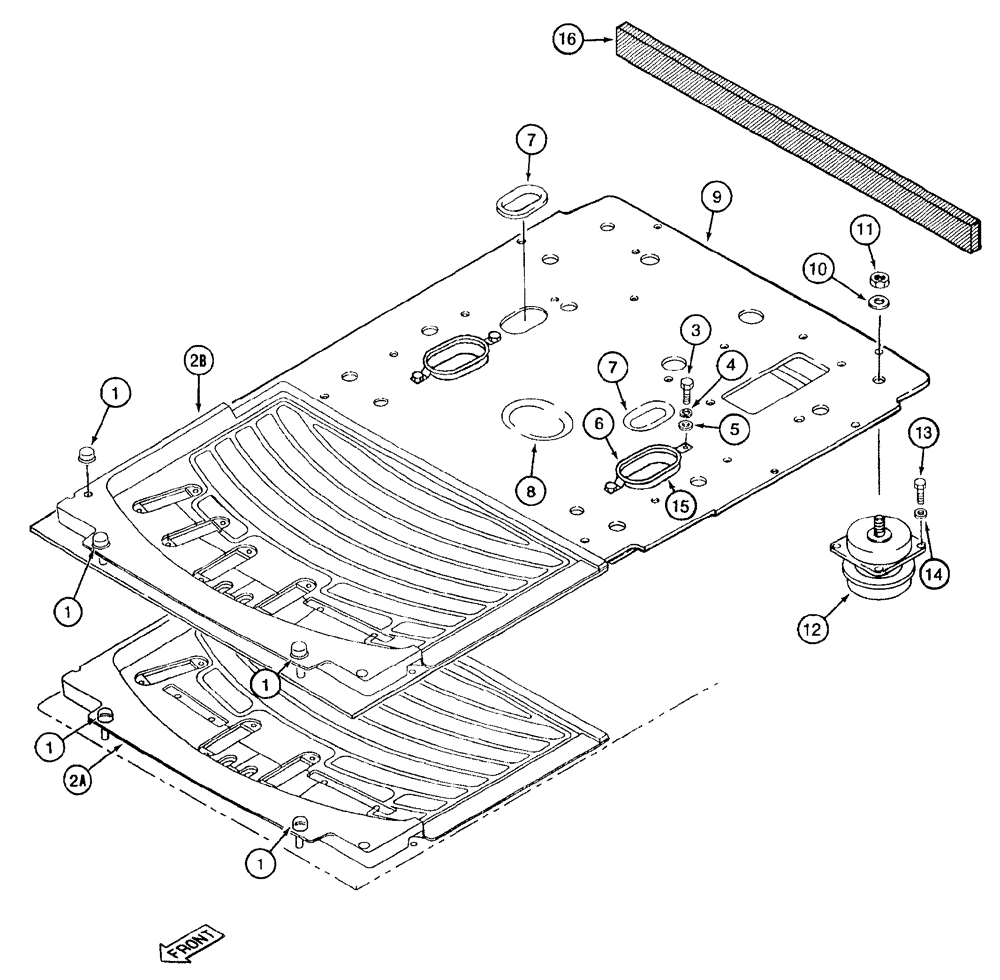

Запчасти Case 9050B (9-072) - CAB FLOOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

159489A1

CAP

special

3шт.

2a

159496A1

FLOOR MAT

machines with single pedal travel but without auxiliary hydraulic equipment, P.I.N. EAC0501122 only

1шт.

2a

165617A1

FLOOR MAT

machines with single pedal travel but without auxiliary hydraulic equipment, Start Serial: EAC0501123

1шт.

2b

162362A1

FLOOR MAT

machines with single pedal travel and auxiliary hydraulic equipment control pedal

1шт.

3

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

6

162622A1

GROMMET

GUIDE - cab floor

2шт.

7

162623A1

GROMMET

rubber

2шт.

8

162624A1

GROMMET

rubber

1шт.

9

162621A1

CUSHION

FLOOR - cab, P.I.N. EAC0501122 only

1шт.

9

165401A1

FLOOR

cab, Start Serial: EAC0501123

1шт.

10

150714A1

WASHER

special

6шт.

11

150760A1

NUT

hex

6шт.

12

165029A1

INSULATOR BLOCK

RUBBER BLOCK MOUNT - rubber, cab floor

6шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

24шт.

14

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

24шт.

15

162625A1

GROMMET

rubber

2шт.

16

162626A1

SEAL

cushion

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
