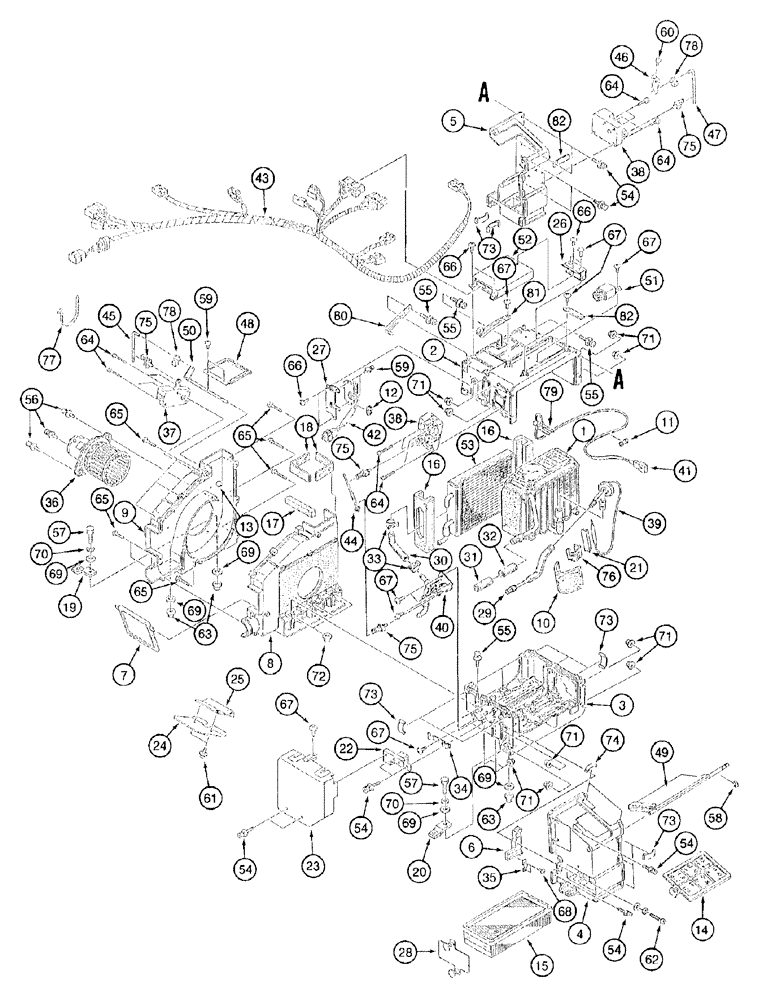

Запчасти Case 9050B (9-068) - AIR CONDITIONER COMPONENTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
164984A1
AIR CONDITIONER
ASSEMBLY - cab (manufacturing part number TUA-R860S), Includes: Ref. 1 - 82
1шт.
1
163175A1
EVAPORATOR
air conditioning
1шт.
2
163177A1
HOOD
COVER - evaporator, upper
1шт.
3
163178A1
COVER
evaporator, lower
1шт.
4
163179A1
HOOD
COVER - air intake, front
1шт.
5
163180A1
HOOD
COVER - air intake, rear
1шт.
6
163181A1
HOOD
HOLDER - tube
1шт.
7
163182A1
COVER
defrost
1шт.
8
163183A1
HOUSING
blower motor, inner
1шт.
9
163223A1
HOUSING
blower motor, outer
1шт.
10
163224A1
INSULATOR
PAD - insulation
1шт.
11
163226A1
GROMMET
rubber
1шт.
12
163225A1
GROMMET
rubber
1шт.
13
165817A1
GROMMET
rubber
1шт.
14
163186A1
FILTER
recirculation, cab
1шт.
15
165085A1
CAB FILTER
air, inner, cab
1шт.
16
165086A1
NOISE PROTECTION
INSULATION - heater, cab
2шт.
17
163169A1
PACKING
PAD - foam
1шт.
18
163170A1
GASKET
housing, blower motor
2шт.
19
163227A1
BRACKET
mounting, housing
2шт.
20
163228A1
BRACKET
mounting, lower evaporator cover
1шт.
21
163187A1
HOLDER
thermocouple
1шт.
22
163229A1
BRACKET
mounting, tube cover
1шт.
23
163230A1
COVER
tube
1шт.
24
163238A1
DEFLECTOR
LOUVER - main, controller
1шт.
25
163239A1
LARGE PLATE
PLATE, LARGE louver, resistor and harness
1шт.
26
165087A1
BRACKET
special
1шт.
27
165083A1
BRACKET
mounting
1шт.
28
165089A1
COVER
special, hose
1шт.
29
163188A1
TUBE ASSY.
suction
1шт.
30
163171A1
HEATER HOSE
1шт.
31
163172A1
INSULATOR
tube
1шт.
32
163173A1
INSULATOR
tube
1шт.
33
165090A1
MOUNTING CLIP
BAND - hose
2шт.
34
163221A1
COLLAR
tube
1шт.
35
163222A1
BRACKET
tube
1шт.
36
163189A1
MOTOR, ELECTRIC
blower, cab
1шт.
37
163190A1
ACTUATOR
damper, blower motor housing
1шт.
38
163191A1
ACTUATOR
damper, one located on rear intake cover and one located on upper evaporator cover
2шт.
39
163174A1
VALVE
expansion
1шт.
40
163192A1
VALVE
water
1шт.
41
163233A1
ELECTRICAL WIRE
WIRE CABLE - thermistor
1шт.
42
165084A1
RESISTOR
cab
1шт.
43
165811A1
HARNESS
main, cab
1шт.
44
163194A1
ROD
actuator, water valve
1шт.
45
163244A1
ROD
actuator, damper
1шт.
46
163240A1
LEVER
damper
1шт.
47
163241A1
ROD
actuator, damper
1шт.
48
163195A1
VENT
DAMPER - blower motor
1шт.
49
163196A1
VENT
DAMPER - air intake
1шт.
50
163242A1
SHAFT
damper
1шт.
51
165091A1
RELAY
cab
1шт.
52
165092A1
CONTROL UNIT
BOX
1шт.
53
165093A1
HEATER
CORE - heater
1шт.
54
163197A1
BOLT,Sems
hex socket, special
11шт.
55
163198A1
BOLT,Sems
hex socket, special
6шт.
56
163199A1
BOLT
hex socket, special
3шт.
57
862-10025
HEX SOC SCREW,M10 x 25mm, Cl 12.9
3шт.
58
163200A1
RING, LOCKING
RING, LOCK retaining
1шт.
59
163201A1
SCREW
special
4шт.
60
163202A1
SCREW
special
1шт.
61
163219A1
BOLT
hex head, special
2шт.
62
163203A1
SCREW
special
1шт.
63
163205A1
FLANGE NUT
hex flange, special
3шт.
64
165813A1
SCREW
self-tapping, special
12шт.
65
165814A1
SCREW
self-tapping, special
9шт.
66
165812A1
SCREW
self-tapping, special
5шт.
67
165815A1
SELF-TAP SCREW
self-tapping, special
12шт.
68
165816A1
SCREW
self-tapping, special
2шт.
70
892-11010
LOCK WASHER,M10
3шт.
71
163204A1
FLANGE NUT
hex flange, special
10шт.
72
163211A1
FLANGE NUT
hex flange, special
3шт.
73
163212A1
CLAMP
cover
11шт.
74
163213A1
CLAMP
damper
2шт.
75
163214A1
CLAMP
rod
4шт.
76
163235A1
CLASP
BRACKET - thermocouple
1шт.
77
163215A1
MOUNTING CLIP
STRAP - tie
1шт.
78
163236A1
HOLDER
RETAINER - actuator rod
2шт.
79
163237A1
HOLDER
RETAINER - thermocouple
1шт.
80
163216A1
CLAMP
wire harness
1шт.
81
163217A1
MOUNTING CLIP
CLAMP - wire harness
1шт.
82
163218A1
CLAMP
cover
3шт.
69
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
Выбрано товаров: 83
