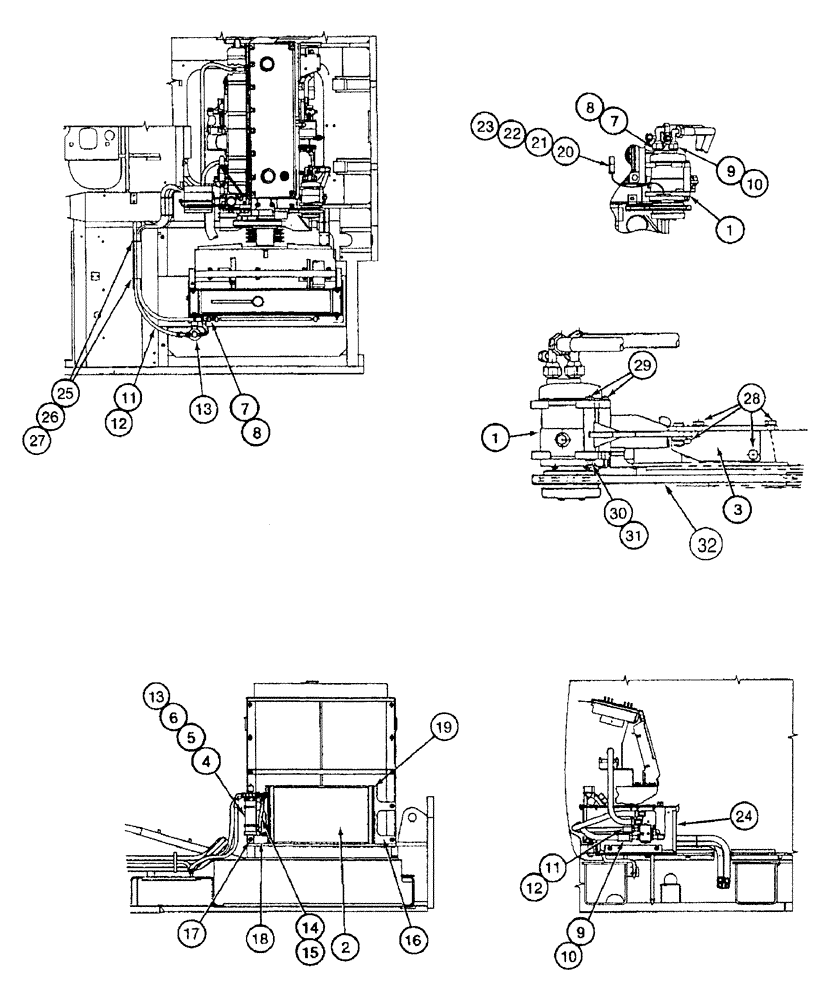

Запчасти Case 9050B (9-064) - AIR CONDITIONING LINES, P.I.N. EAC0501166 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

170668A1

COMPRESSOR

air conditioner

1шт.

2

171558A1

CONDENSER

air conditioner

1шт.

3

173260A1

BRACKET

compressor, mounting

1шт.

4

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

170815A1

BRACKET

receiver-drier

1шт.

7

171581A1

HOSE ASSY.

compressor to condenser, Includes: Ref. 8

1шт.

8

171587A1

O-RING

hose

2шт.

9

171566A1

HOSE ASSY.

compressor to expansion valve at evaporator core, Includes: Ref. 10

1шт.

10

171588A1

O-RING

hose

2шт.

11

171567A1

HOSE ASSY.

expansion valve at evaporator core to receiver drier, Includes: Ref. 12

1шт.

12

171586A1

O-RING

hose

2шт.

13

170814A1

RECEIVER-DRYER

air conditioning

1шт.

14

171582A1

HOSE ASSY.

receiver dryer to condenser, Includes: Ref. 15

1шт.

15

171586A1

O-RING

hose

2шт.

16

173773A1

BRACKET

condenser mounting, right-hand

1шт.

18

173774A1

BRACKET

condenser mounting, left-hand

1шт.

19

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

at condenser

16шт.

20

182064A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

21

182067A1

CONNECTOR, ELEC

CONNECTOR LOCK - connector

1шт.

22

225124C1

SEAL,2 - 2.9 mm2

electrical

1шт.

23

182157A1

ELEC CONNECTOR

PIN - termmial

1шт.

24

REF

INSTRUCTION

HEATER ASSEMBLY - with air conditioning, parts list figure 9-62

1шт.

25

150860A1

COLLAR

BRACKET - support, hose

2шт.

26

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

27

170308A1

BAND

STRAP - tie

1шт.

29

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

282448A1

BELT

Drive, Compressor

1шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
