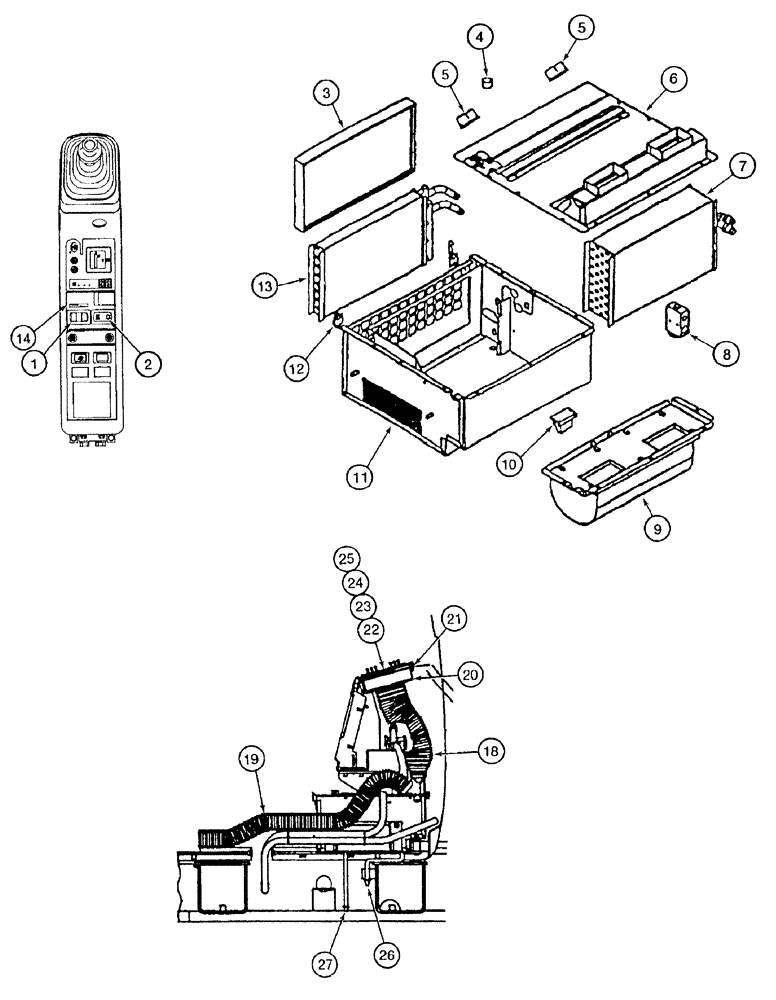

Запчасти Case 9050B (9-062) - HEATER AND AIR CONDITIONING ASSEMBLY, P.I.N. EAC0501182 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

171754A1

SWITCH

control, hot/cold

1шт.

2

171755A1

SWITCH

control, heater/air conditioning

1шт.

3

171756A1

FILTER

air

1шт.

4

171757A1

KNOB

control

1шт.

5

171758A1

ADAPTER

hose, straight

2шт.

6

171759A1

COVER

housing, heater and air conditioning

1шт.

7

171752A1

CORE

evaporator, air conditioning

1шт.

8

171760A1

VALVE

expansion

1шт.

9

171709A1

MOTOR, ELECTRIC

blower

1шт.

10

171762A1

THERMOSTAT

temperature

1шт.

11

171763A1

HOUSING

heater and air conditioning

1шт.

12

171764A1

FASTENER

snap type, cover retaining

2шт.

13

171560A1

HEATER

CORE - heater

1шт.

14

171568A1

HARNESS

PANEL - control, with harness

1шт.

18

171570A1

DUCT

air, rectangular

2шт.

19

171571A1

DUCT

air, round

2шт.

20

171564A1

AIR TUBE

PLENUM - air duct

2шт.

21

171576A1

SEAL

plenum

2шт.

22

171565A1

VENT

LOUVER - ball

2шт.

23

171579A1

RING

adapter

2шт.

24

171563A1

PLATE

diffuser

2шт.

25

171575A1

DIFFUSER

air

4шт.

26

171580A1

DRAIN VALVE

HOSE

2шт.

27

171572A1

HOSE

drain, with valve

2шт.
