(9-060) - HEATER LINES, MODELS WITH OR WITHOUT AIR CONDITIONING, P.I.N. EAC0501182 AND AFTER

Запчасти Case 9050B (9-060) - HEATER LINES, MODELS WITH OR WITHOUT AIR CONDITIONING, P.I.N. EAC0501182 AND AFTER (09) - CHASSIS/ATTACHMENTS

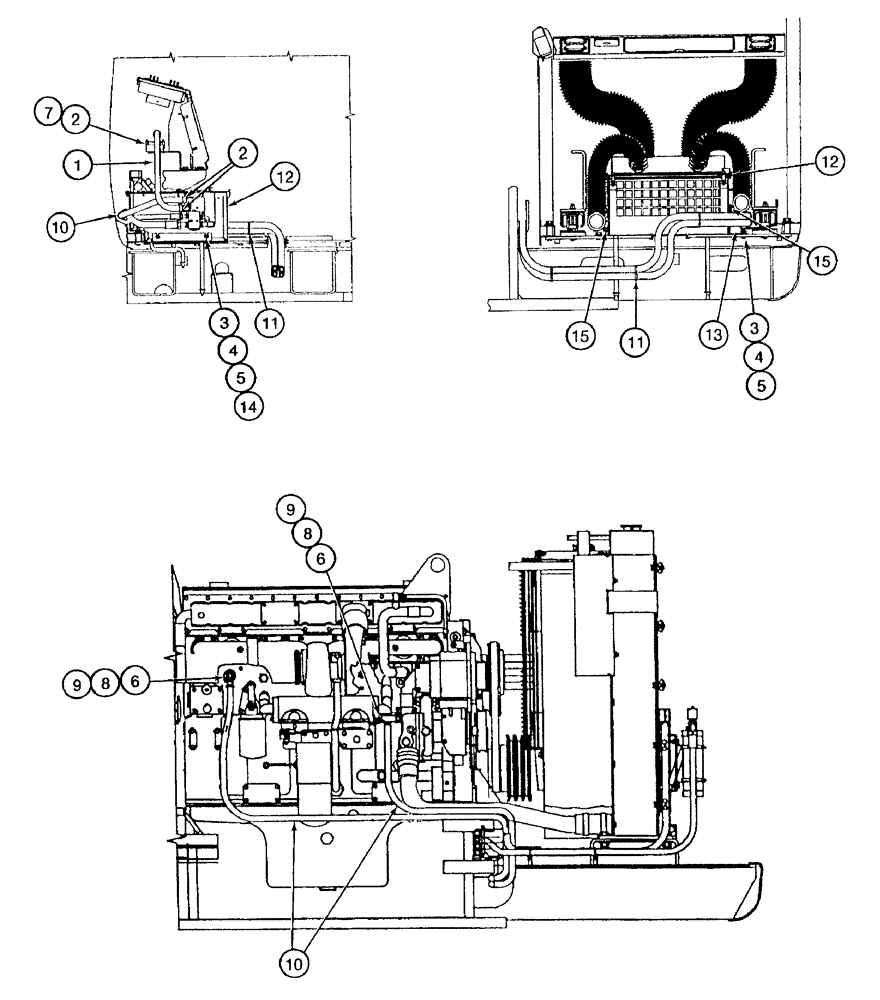

Схема запчастей Case 9050B - (9-060) - HEATER LINES, MODELS WITH OR WITHOUT AIR CONDITIONING, P.I.N. EAC0501182 AND AFTER (09) - CHASSIS/ATTACHMENTS
5
9
11
1
2
10
3
15
4
4
7
6
5
8
12
14
2
9
12
11
3
15
8
6
10
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

171573A1

HEATER HOSE,2.00"

Hot Water Valve to Heater

1шт.

2

171574A1

CLAMP

hose

4шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

6

171029A1

BUSHING

reducer

2шт.

7

171569A1

VALVE

hot water

1шт.

8

171030A1

VALVE

shutoff

2шт.

9

170876A1

CLAMP

hose

2шт.

10

171557A1

HEATER HOSE,25.00"

Heater, At Engine

2шт.

11

170308A1

BAND

STRAP - tie

1шт.

12

REF

INSTRUCTION

HEATER ASSEMBLY - parts list figure 9-62

1шт.

13

171577A1

BRACKET

mounting, left-hand

1шт.

14

171578A1

BRACKET

mounting, right-hand

1шт.

15

171765A1

NUT

hex

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
