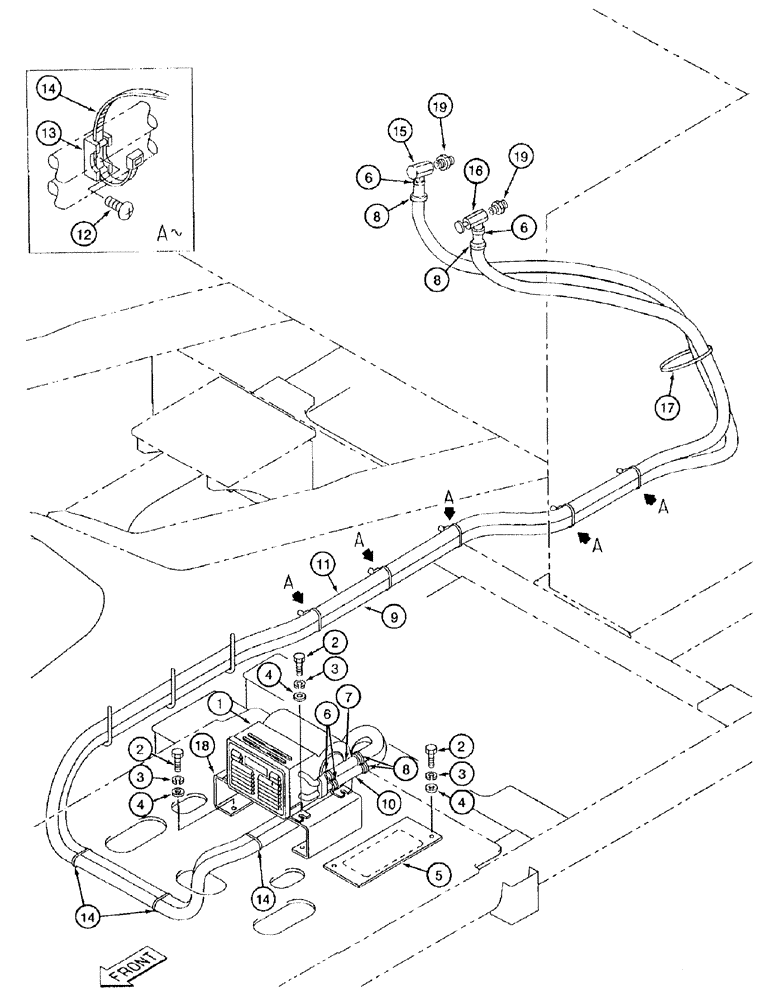

Запчасти Case 9050B (9-058) - HEATER AND HOSES, P.I.N. EAC0501122 THRU EAC0501181 (09) - CHASSIS/ATTACHMENTS

1

152815A1

HEATER,Assembly, Cab

cab, Includes: Ref. 1A - 1D

1шт.

1a

166058A1

BLOWER

FAN - blower, right-hand, not shown

1шт.

1b

166059A1

BLOWER

FAN - blower, left-hand, not shown

1шт.

1c

163618A1

RESISTOR

electrical, three speed, not shown

1шт.

1d

163619A1

MOTOR, ELECTRIC

cab heater blower, not shown

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

10шт.

3

892-11010

LOCK WASHER,M10

10шт.

5

159950A1

COVER

cab floor

1шт.

6

150384A1

COLLAR

adjustable

4шт.

7

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

8

150067A1

MOUNTING CLIP

tie, 150 mm long

1шт.

9

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 5800 mm (228-11/32 inch) long

1шт.

10

150666A1

HOSE,13.00 mm ID x 6000.00 mm

1шт.

11

151566A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 5800 mm (228-11/32 inch) long

1шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

13

150860A1

COLLAR

BRACKET - support

5шт.

14

150496A1

MOUNTING CLIP

tie, 250 mm long

1шт.

15

171031A1

STEM

hose

1шт.

16

171030A1

VALVE

shutoff

1шт.

17

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

18

161721A1

SUPPORT

mounting, heater

1шт.

19

171029A1

BUSHING

reducer

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.
