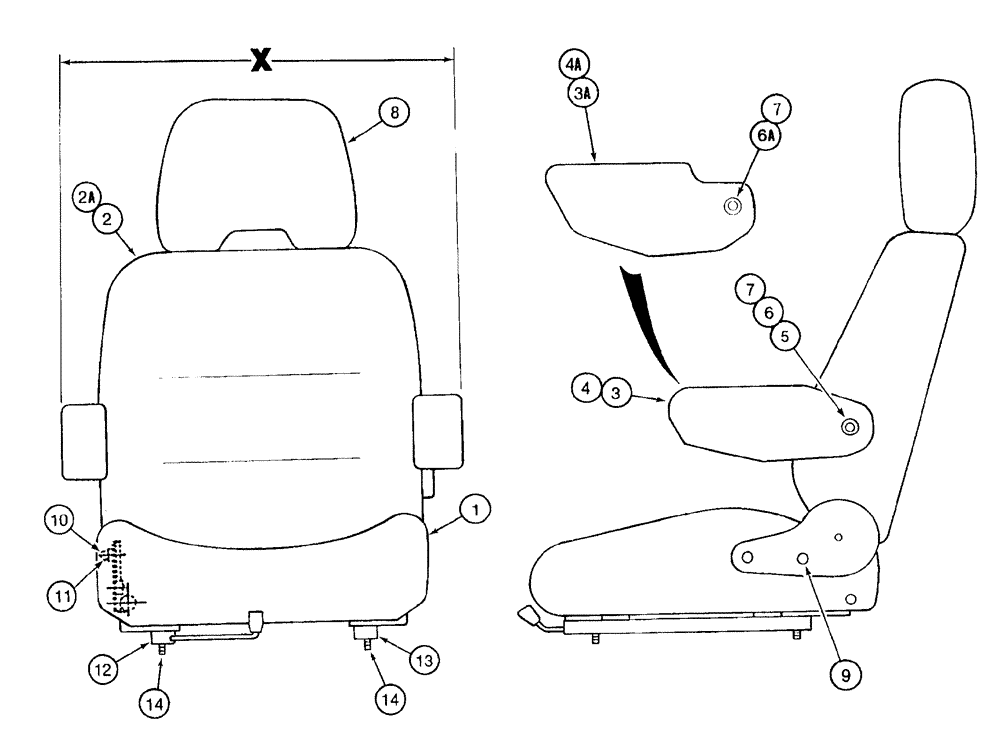

Запчасти Case 9050B (9-050) - 159525A AND 165553A1 OPERATORS SEAT, PRIOR TO P.I.N EAC0501227 WITHOUT CASE LOGO ON BACK CUSHION (09) - CHASSIS/ATTACHMENTS

159525A1

SEAT ASSY.

operators, X equal 580 mm (22-13/16 inch) long, if used

1шт.

165553A1

SEAT ASSY.

operators, X equals 630 mm (24-13/16 inch) long, if used, Includes: Ref. 1 - 14

1шт.

1

165013A1

CUSHION

seat bottom

1шт.

2

165014A1

BACKREST

CUSHION - seat back, used with 159525A1 only

1шт.

2a

165598A1

BACKREST

CUSHION - seat back, used with 165553A1 only

1шт.

3

165015A1

ARMREST

REST - seat, right-hand, used with 159525A1 only

1шт.

3a

165599A1

ARM

REST - seat, right-hand, used with 165553A1 only

1шт.

4

165016A1

ARMREST

REST - seat, left-hand, used with 159525A1 only

1шт.

4a

165600A1

ARM

REST - seat, left-hand, used with 165553A1 only

1шт.

5

165017A1

SPACER

special, used with 159525A1 only

4шт.

6

165018A1

WASHER

special, used with 159525A1 only

2шт.

6a

165601A1

WASHER

special, used with 165553A1 only

2шт.

7

165019A1

SPECIAL NUT

special

2шт.

8

165020A1

HEADREST, SEAT

HEADREST seat

1шт.

9

165021A1

BOLT

special

2шт.

10

165022A1

NUT

cap, special

1шт.

11

165023A1

BUSHING

special

1шт.

12

156801A1

RAIL

slide, replaces 165024A1

1шт.

13

156802A1

RAIL

slide, replaces 165025A1

1шт.

14

165026A1

SCREW

threaded, special

4шт.
