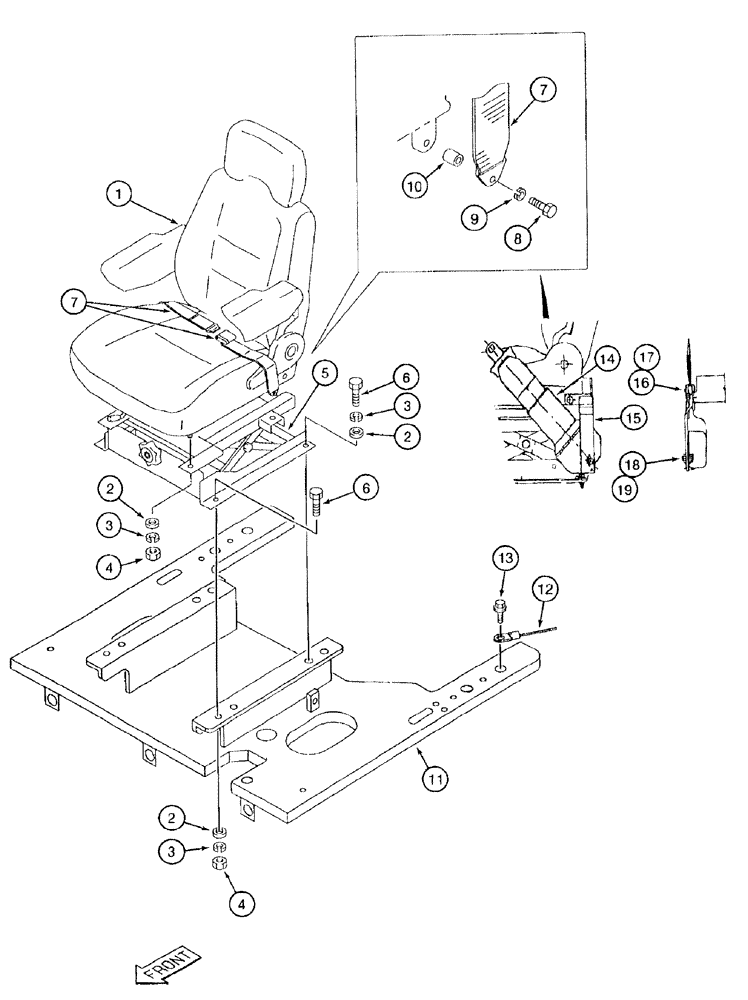

Запчасти Case 9050B (9-048) - SEAT, SEAT BELT AND OPERATORS MANUAL TETHER, OPTIONAL RETRACTABLE SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT - operators, see figures 9-50 and 9-52 for correct assembly and components

1шт.

2

159500A1

WASHER

flat, special

8шт.

3

159499A1

SPRING WASHER

lock, special

8шт.

4

157770A1

NUT

hex, special

6шт.

5

159526A1

SUSPENSION

seat base

1шт.

164535A1

BASE

MEMBER - seat base, not shown

1шт.

164536A1

RUBBER BLOCK

STOP - not shown

2шт.

164537A1

ROLLER

suspension, not shown

4шт.

164538A1

DAMPER

oil, not shown

1шт.

6

159534A1

BOLT,High Strength, Hex, M8 x 25mm

special

4шт.

7

151520A1

SAFETY BELT

Includes Ref. 8 - 9

1шт.

8

151523A1

BOLT,High Strength, Hex

hex

2шт.

9

151526A1

SPRING WASHER

lock

2шт.

10

152755A1

SPACER

13.7 ID x 21.7 OD x 10 mm

1шт.

11

165507A1

PLATFORM

seat mounting

1шт.

12

159895A1

CABLE,1500mm L

ROPE - steel wire, operator's manual tether

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special, with attached lockwasher

1шт.

14

165385A1

SAFETY BELT

Retractable, Optional

1шт.

15

165386A1

BRACKET

seat belt, optional, retractable

1шт.

16

151523A1

BOLT,High Strength, Hex

hex, optional retractable seat belt

2шт.

17

151526A1

SPRING WASHER

lock, optional retractable seat belt

2шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Optional retractable seat belt

1шт.

19

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm, optional retractable seat belt

1шт.
