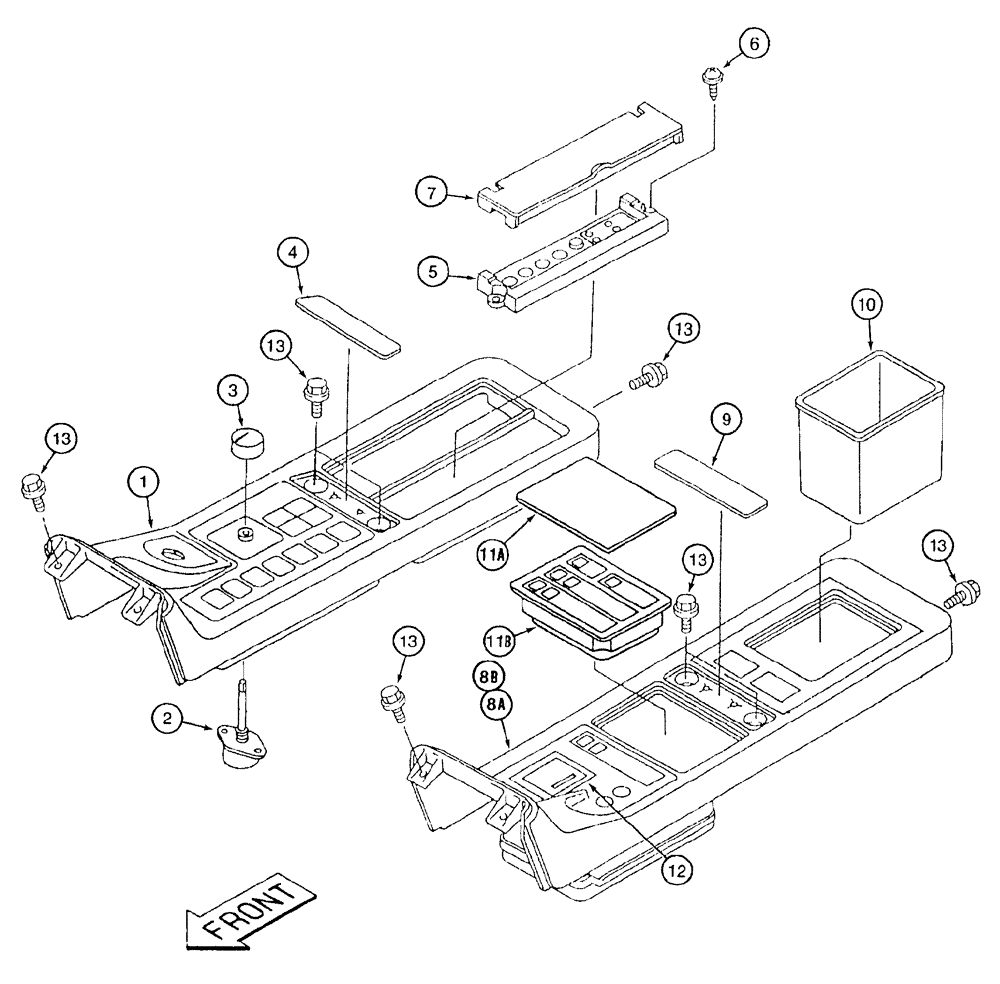

Запчасти Case 9050B (9-046) - CONSOLE BOX, CONTROL PANEL ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

161312A1

CONSOLE

PANEL ASSEMBLY - control, console box, right-hand, Includes: Ref. 1 - 7B

1шт.

1

162269A1

PANEL ASSY.

control, right-hand

1шт.

2

159614A1

THROTTLE SWITCH

engine speed rheostat

1шт.

2a

167901A1

PASTE

PLATE - switch mounting, not shown

1шт.

3

159611A1

BUTTON

switch

1шт.

4

159612A1

CAP

PANEL - cover

1шт.

5

159627A1

COVER

PANEL - control, right-hand rear

1шт.

6

159628A1

COVER

control panel, right-hand rear

1шт.

7

162161A1

SCREW

special

2шт.

7a

KHR3214

HARNESS

ignition switch, not shown

1шт.

7b

KHR3205

HARNESS

radio, not shown

1шт.

163511A1

PANEL

ASSEMBLY - control, console box, left-hand, all models except those with air conditioning, Serial Range: -EAC0501166

1шт.

163512A1

PANEL

ASSEMBLY - control, console box, left-hand, models with air conditioning, Includes: Ref.8A - 13, Serial Range: -EAC0501166

1шт.

8a

162270A1

PANEL ASSY.

control, left-hand, all models except those with air conditioning, Serial Range: -EAC0501166

1шт.

8b

162272A1

PANEL ASSY.

control, left-hand, models with air conditioning, Serial Range: -EAC0501166

1шт.

9

159613A1

CAP

PANEL - cover

1шт.

10

164145A1

BOX

BOX - plastic

1шт.

11a

159936A1

COVER

PANEL - cover, models with heater, Serial Range: -EAC0501182

1шт.

11b

162273A1

PANEL

switch, with LED indicators, models with air conditioning, Serial Range: -EAC0501166

1шт.

11b

171568A1

HARNESS

PANEL - control, with harness, models with heater P.I.N. EAC0501182 and after and with air conditioning P.I.N. EAC0501166 and after

1шт.

12

162271A1

HOURMETER

engine operation time

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

12шт.
