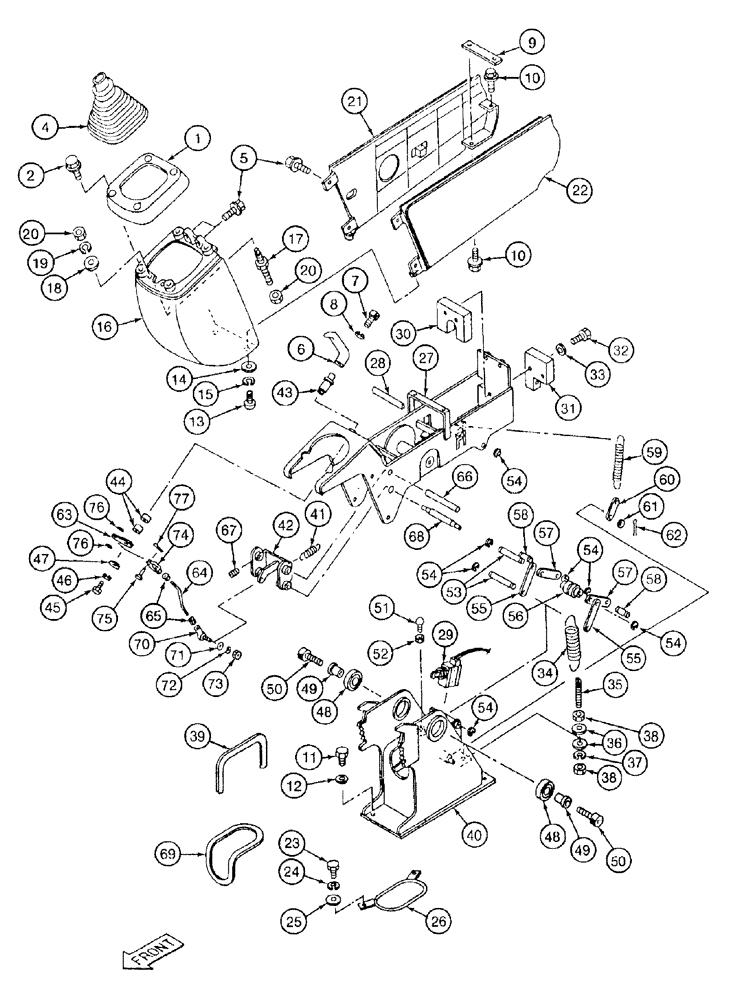

Запчасти Case 9050B (9-042) - LEFT-HAND CONTROL CONSOLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
159318A1
SHIN
FLANGE - boot retainer
1шт.
2
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
hex, special
4шт.
3
REF
INSTRUCTION
VALVE ASSEMBLY - remote control, not shown, see figure 9-36
1шт.
4
159506A1
BELLOWS
dust protection
1шт.
5
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
hex, special
8шт.
6
159321A1
HANDLE
control
1шт.
7
862-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
1шт.
8
892-11008
LOCK WASHER,8mm ID
1шт.
9
159319A1
BRACKET
STRAP - mounting
1шт.
10
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
hex, special
2шт.
12
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm
4шт.
13
159507A1
CARRIAGE BOLT,M6 x 12mm
special
2шт.
14
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
15
892-11006
LOCK WASHER,M6
2шт.
16
159510A1
COVER
HOUSING - controller
1шт.
17
159509A1
BOLT,Spcl, M6 x 38mm
STUD - special
2шт.
18
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
19
892-11006
LOCK WASHER,M6
2шт.
20
829-1406
NUT,Hex, M6 x 1, Cl 10.9
4шт.
21
159511A1
COVER
side, right-hand
1шт.
22
159512A1
COVER
side, left-hand
1шт.
23
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
Full Thd
2шт.
24
892-11008
LOCK WASHER,8mm ID
2шт.
26
159320A1
GUIDE
hose
1шт.
164617A1
CUP COVER
CONSOLE ASSEMBLY - control, left-hand, replaces 164552A1, Includes: Ref. 27 - 77
1шт.
27
NSS
NOT SOLD SEPARAT
FRAME - tilt
1шт.
28
159310A1
GASKET
TRIM - edge, 85 mm (3-3/8 inch) long, if used
1шт.
29
159538A1
LIMIT SWITCH
limit
1шт.
30
159311A1
STIFFENER
PLATE - console, if used
1шт.
31
159312A1
STIFFENER
PLATE - console, if used
1шт.
32
828-10055
BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9
hex, 10 - 1.5 x 55 mm, class 10.9, if used
2шт.
33
150409A1
WASHER
flat, special, 10.5 x 21 x 3.2 mm, if used
2шт.
34
159523A1
SPRING
tension
1шт.
35
164508A1
HOOK
ANCHOR - spring, threaded
1шт.
37
892-11010
LOCK WASHER,M10
1шт.
39
159309A1
TRIM
TRIM - edge, 390 mm (15-3/8 inch) long
1шт.
40
NSS
NOT SOLD SEPARAT
FRAME - console
1шт.
41
159594A1
SPRING
latch return
1шт.
42
159300A1
BRACKET
tilt
1шт.
43
159295A1
COTTER PIN
special
1шт.
44
159296A1
BUSHING
special
2шт.
45
627-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
Full Thd
1шт.
46
892-11008
LOCK WASHER,8mm ID
1шт.
48
159504A1
BEARING, BALL,20 mm ID x 42 mm OD x 12 mm
special
2шт.
49
159294A1
COTTER PIN
special
2шт.
50
862-6030
HEX SOC SCREW,M6 x 30mm, Cl 12.9
2шт.
51
159091A1
STOP
rubber
1шт.
53
159304A1
COTTER PIN
special
2шт.
54
800-436
CIRCLIP,M6
E-type, external retaining
2шт.
55
159307A1
LINK
front
2шт.
56
159306A1
COLLAR
special
1шт.
57
159303A1
COTTER PIN
LINK - rear
2шт.
58
159305A1
COTTER PIN
special
2шт.
59
159524A1
SPRING
counterbalance
1шт.
60
159316A1
PITMAN
LINK - connecting, lower
1шт.
62
153077A1
COTTER PIN
CLIP - hair type
1шт.
63
159297A1
BRACKET
console
1шт.
64
159299A1
ROD,THREADED
THREADED ROD
1шт.
65
829-1406
NUT,Hex, M6 x 1, Cl 10.9
2шт.
66
159301A1
COTTER PIN
special
1шт.
67
878-1046
SET SCREW,Hex Skt, M4 x 6mm, Cup Pt
2шт.
68
159302A1
COTTER PIN
lock
1шт.
69
159308A1
TRIM
TRIM - edge, 390 mm (15-3/8 inch) long
1шт.
70
157155A1
BALL JOINT
1шт.
71
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
72
892-11006
LOCK WASHER,M6
1шт.
73
829-1406
NUT,Hex, M6 x 1, Cl 10.9
1шт.
74
159298A1
FORK
END - yoke
1шт.
75
159505A1
COTTER PIN
headed, special
1шт.
76
159508A1
WASHER
nylon
2шт.
77
733-1616
COTTER PIN,M1.6 x 16
1.6 x 16 mm
1шт.
38
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
52
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
25
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
47
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
61
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
36
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
Выбрано товаров: 78
