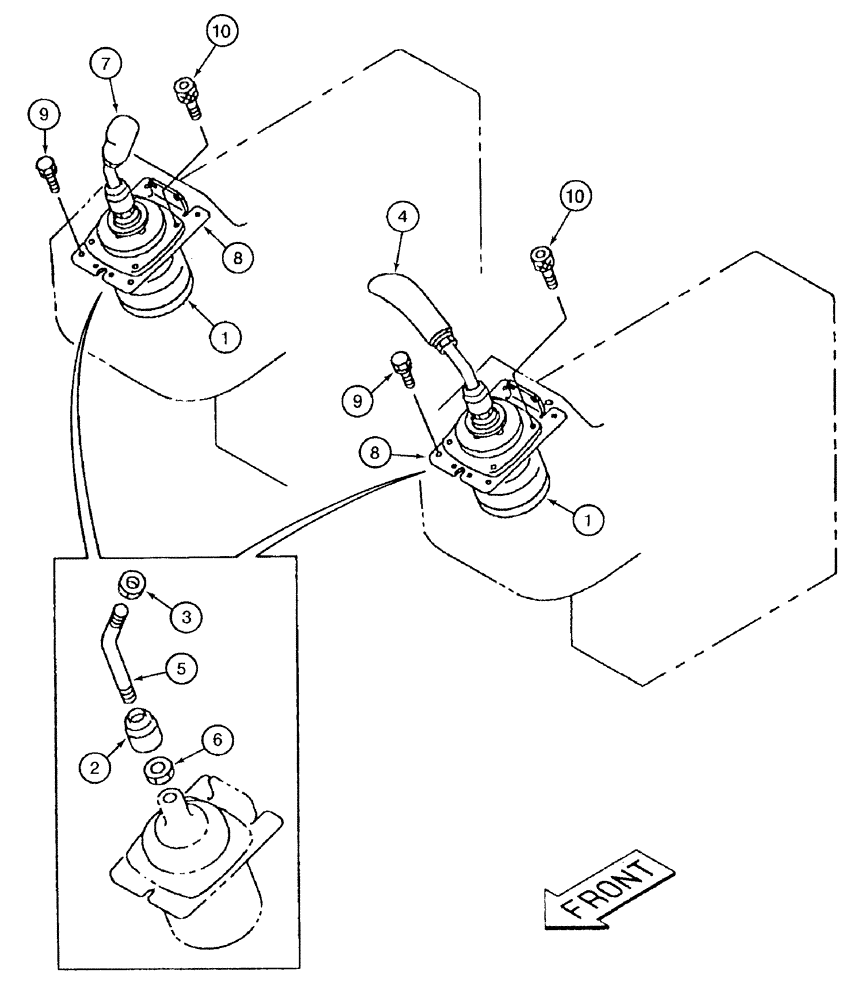

Запчасти Case 9050B (9-036) - REMOTE CONTROL VALVE ASSEMBLY MOUNTING (09) - CHASSIS/ATTACHMENTS

1

162097A1

VALVE

ASSEMBLY - remote control, used on model P.I.N. EAC0501122 only, parts list figure 8-152

2шт.

1

164782A1

CONTROL BLOCK

ASSEMBLY - remote control, parts list figue 8-152, Start Serial: EAC0501123

2шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159487A1

NUT

hex, special, if used

2шт.

4

159270A1

KNOB

left-hand, with horn button, without lever, replaced by 168769A1, ref 4A

1шт.

4a

168769A1

KNOB

ASSEMBLY - left-hand, with horn button and lever, not shown

1шт.

5

159269A1

LEVER

control, without knob, if used, see ref 4A and 7A

2шт.

6

151154A1

JAM NUT

hex

2шт.

7

159486A1

KNOB

right-hand, with power up button, without lever, replaced by 168770A1, ref7A

1шт.

7a

168770A1

KNOB

ASSEMBLY - right-hand, with power up button and lever, not shown

1шт.

8

159268A1

SUPPORT

mounting

2шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

4шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

8шт.
