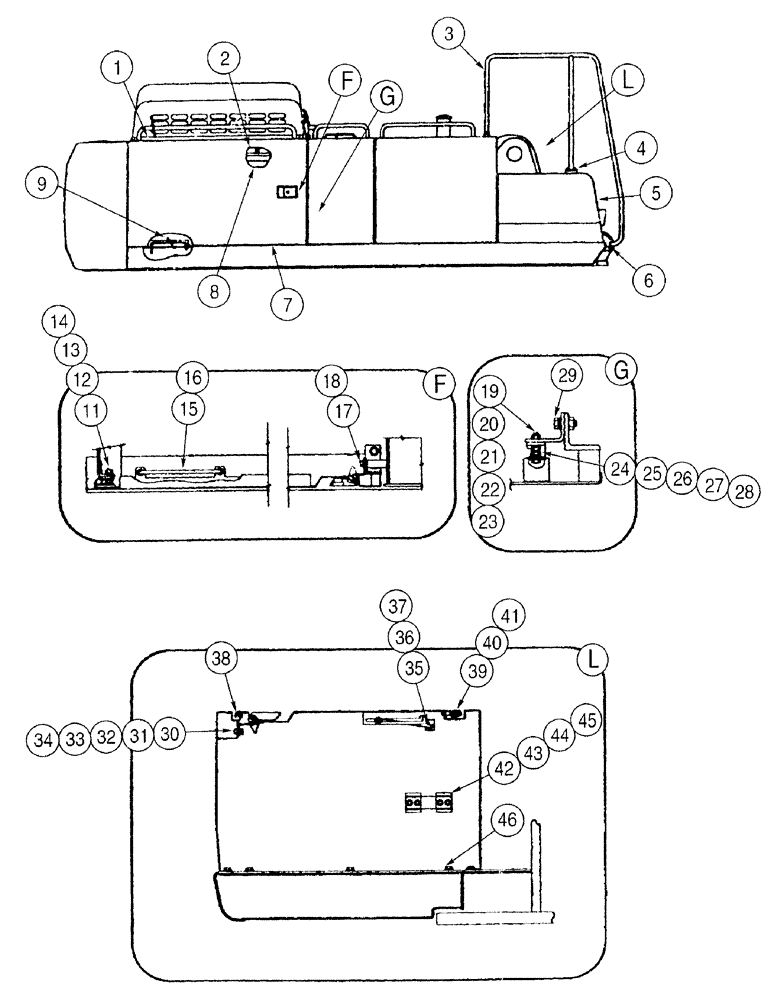

Запчасти Case 9050B (9-032) - UPPER STRUCTURE, RIGHT-HAND SIDE DOOR AND RELATED PARTS, P.I.N. EAC0501196 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

173150A1

FILLING STRIP

weather, rubber

2шт.

2

173797A1

INSULATOR

acoustic

1шт.

3

173718A1

BRACE

HANDRAIL - upper structure

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

2шт.

5

173723A1

BOX, TOOL

storage

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

1шт.

7

173796A1

DOOR

right-hand

1шт.

8

173805A1

INSULATOR

acoustic

1шт.

9

173804A1

INSULATOR

acoustic

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

12

892-11012

LOCK WASHER,M12

6шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

6шт.

14

829-1412

NUT,M12, Cl 10.9

6шт.

15

159101A1

STAY

HOLDER - door

1шт.

16

153181A1

COTTER PIN

CLIP - hairpin

1шт.

17

171062A1

SUPPORT

upper structure

1шт.

18

162278A1

BOLT

flange head, special

2шт.

19

159099A1

STOP

door

1шт.

20

159095A1

BRACKET

door

1шт.

21

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

22

892-11006

LOCK WASHER,M6

6шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

24

159099A1

STOP

door

1шт.

25

159095A1

BRACKET

door

1шт.

26

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

27

892-11006

LOCK WASHER,M6

6шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

29

171552A1

BRACKET

upper structure

2шт.

30

173166A1

BRACKET

cover

1шт.

31

159115A1

ADJUSTING PLATE

SHIM - plate

2шт.

32

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

33

892-11010

LOCK WASHER,M10

2шт.

35

159119A1

STAY

SUPPORT - cover, storage box

1шт.

37

732-2020

COTTER PIN,M2 x 20

2 x 20 mm

2шт.

38

173725A1

ORNAMENTAL STRIP

weather, rubber

1шт.

39

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

4шт.

40

892-11006

LOCK WASHER,M6

4шт.

41

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

42

152772A1

HOLDER

grease gun

2шт.

43

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

44

892-11010

LOCK WASHER,M10

4шт.

46

162278A1

BOLT

flange head, special

10шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

45

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
