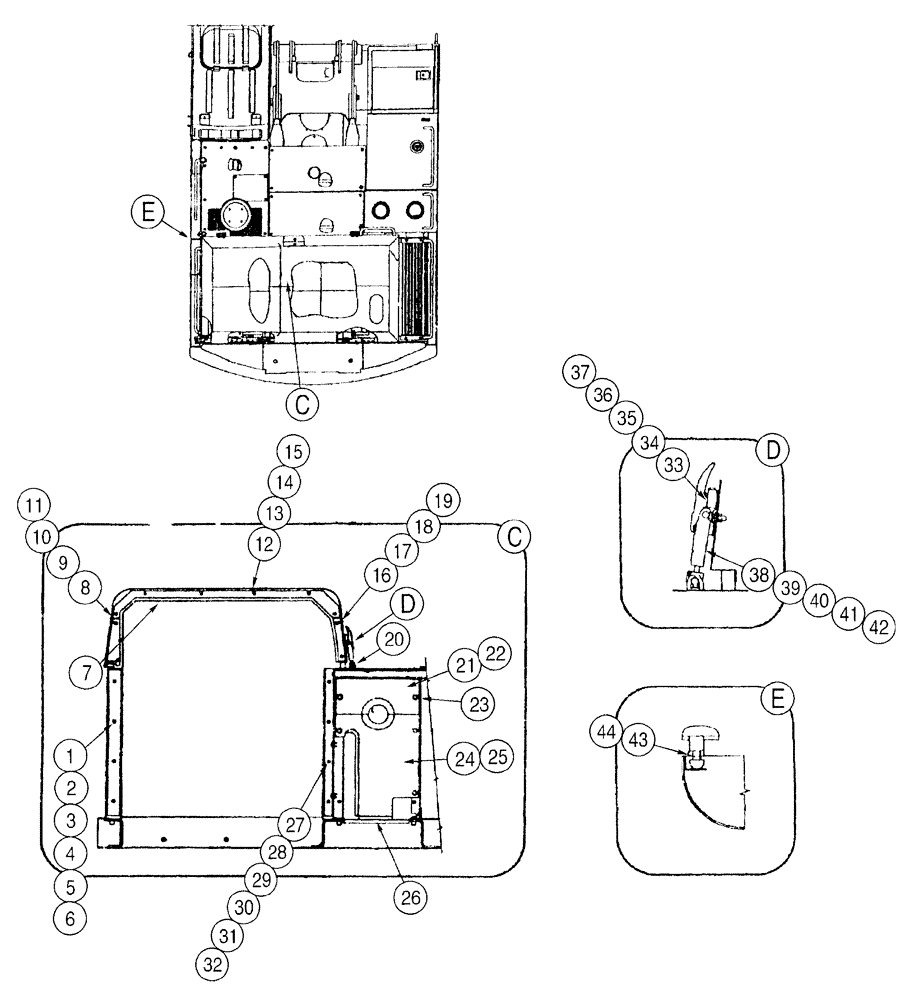

Запчасти Case 9050B (9-030) - UPPER STRUCTURE, PANELS AND MISCELLANEOUS PARTS, P.I.N. EAC0501196 AND AFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
173821A1
SEALING STRIP
STRIP - weather, rubber
1шт.
2
173136A1
RETAINER
insulation
1шт.
4
892-11008
LOCK WASHER,8mm ID
4шт.
6
173178A1
SPACER
special
4шт.
7
173724A1
SEAL
STRIP - weather, rubber
1шт.
8
173179A1
RETAINER
insulation
1шт.
10
892-11008
LOCK WASHER,8mm ID
2шт.
12
173173A1
RETAINER
insulation
1шт.
14
892-11008
LOCK WASHER,8mm ID
6шт.
16
173177A1
RETAINER
insulation
1шт.
18
892-11008
LOCK WASHER,8mm ID
2шт.
20
173135A1
FILLING STRIP
weather, rubber
1шт.
21
173793A1
SHEET
PANEL - metal
1шт.
22
173825A1
INSULATOR
acoustic
1шт.
23
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
5шт.
24
173832A1
SHEET
PANEL - metal
1шт.
25
173826A1
INSULATOR
acoustic
1шт.
26
173831A1
INSULATOR
acoustic
1шт.
27
173181A1
RETAINER
insulation
1шт.
28
173822A1
SEALING STRIP
STRIP - weather, rubber
1шт.
30
892-11008
LOCK WASHER,8mm ID
4шт.
32
173178A1
SPACER
special
4шт.
33
150785A1
STOP LOCK
door assembly
2шт.
35
892-11008
LOCK WASHER,8mm ID
4шт.
37
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
4шт.
38
151356A1
LOCK ASSY
LATCH - hood
1шт.
39
151361A1
HANDLE
LATCH - hood
1шт.
41
892-11008
LOCK WASHER,8mm ID
4шт.
43
159091A1
STOP
rubber
2шт.
3
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
4шт.
9
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
2шт.
13
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
6шт.
17
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
2шт.
29
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
4шт.
34
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
4шт.
40
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
4шт.
44
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
5
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
11
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
15
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
6шт.
19
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
31
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
36
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
42
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
Выбрано товаров: 44
