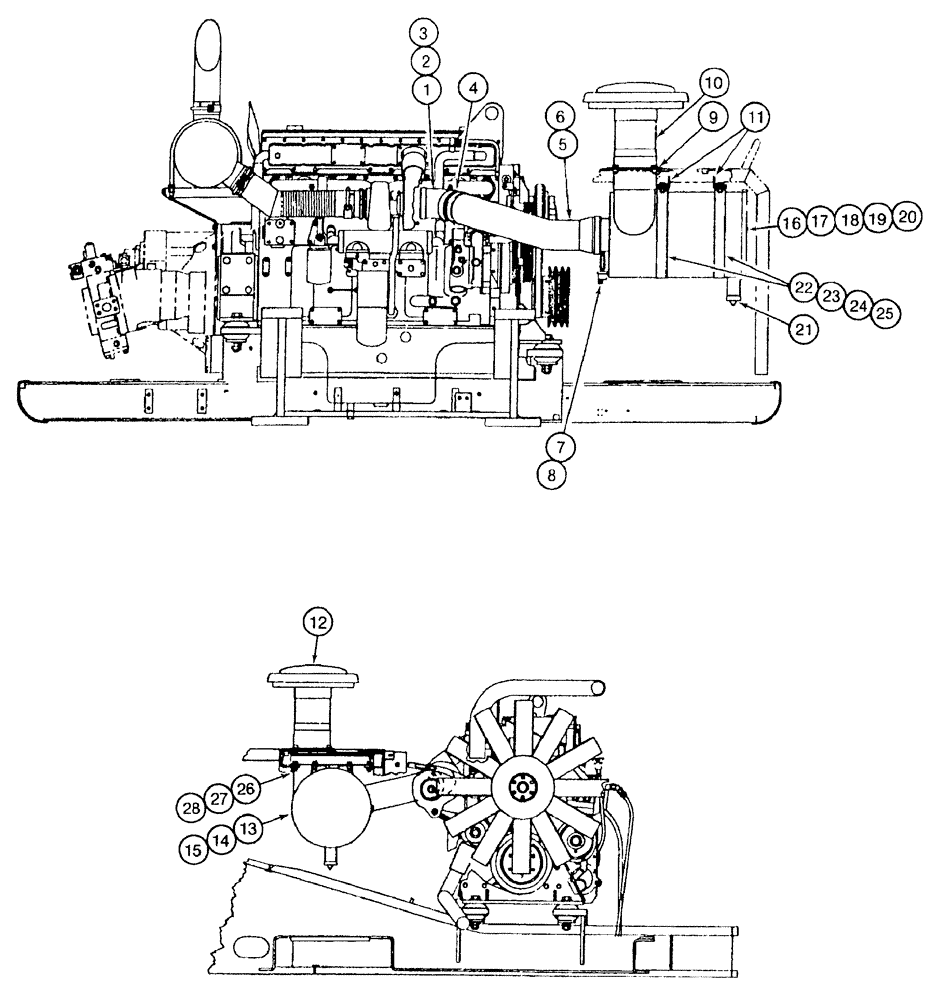

Запчасти Case 9050B (2-010) - AIR CLEANER SYSTEM, PRIOR TO P.I.N. EAC0501126 (02) - ENGINE

1

173232A1

ELBOW

turbocharger intake

1шт.

2

170075A1

CLAMP

hose

2шт.

3

173450A1

AIR INTAKE TUBE,101.6 mm OD

air intake, air cleaner

1шт.

4

170075A1

CLAMP

hose

2шт.

5

173449A1

HOSE

air intake, air cleaner

1шт.

6

173243A1

CLAMP

hose

1шт.

7

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

8

150116A1

SOCKET

ADAPTER - switch

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special

4шт.

10

173055A1

AIR INTAKE TUBE,155.2 mm ID, 152 - 159 mm OD

air inlet

1шт.

11

173054A1

BRACKET

mounting, air cleaner

2шт.

12

150786A1

CAP

air inlet, air cleaner

1шт.

13

162965A1

CLEANER ASSY.

BODY ASSEMBLY - air cleaner, Includes: Ref. 14-21

1шт.

14

151397A1

AIR FILTER

inner, air cleaner

1шт.

15

150783A1

ELEMENT

outer, air cleaner

1шт.

16

163725A1

CASE

BODY - air cleaner

1шт.

17

163726A1

COVER ASSY

air cleaner, includes captive wing nut

1шт.

18

156678A1

NUT

type

1шт.

19

156679A1

NUT

type

1шт.

20

157236A1

GASKET

cover

1шт.

21

156680A1

VALVE

CUP - dust

1шт.

22

162964A1

MOUNTING CLIP

BRACKET - air cleaner

2шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

25

892-11010

LOCK WASHER,M10

4шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

28

892-11012

LOCK WASHER,M12

4шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
