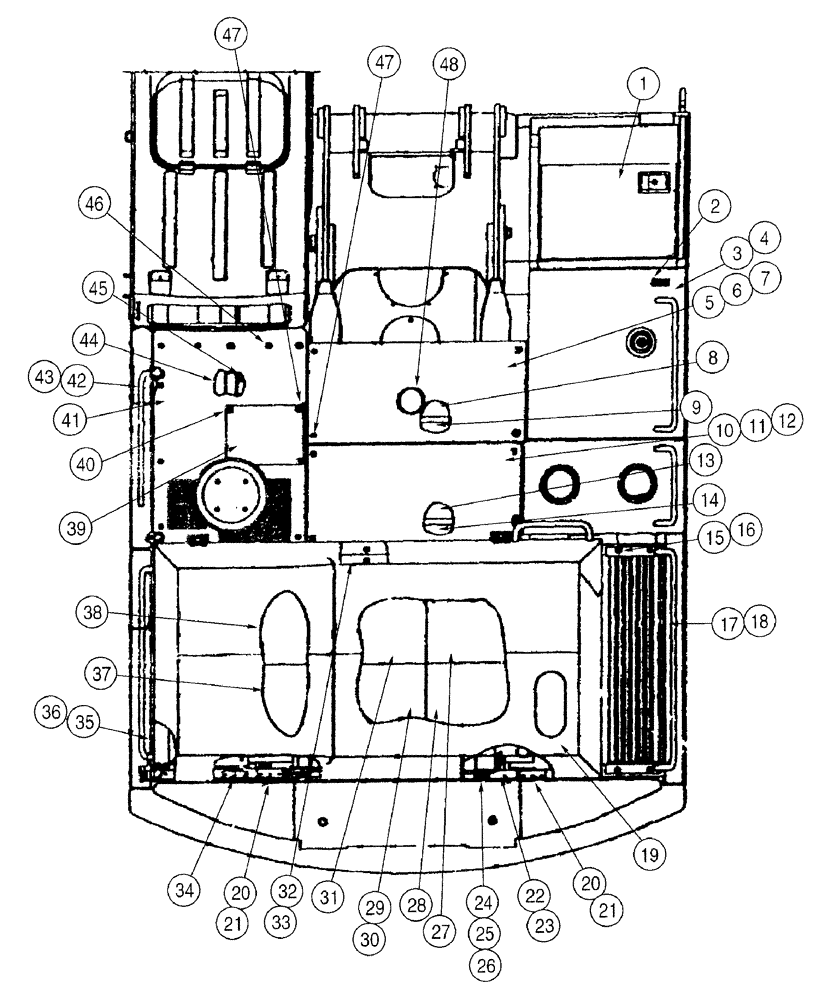

Запчасти Case 9050B (9-026) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, P.I.N. EAC0501196 AND AFTER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
173156A1
DOOR
COVER - storage box
1шт.
2
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
2шт.
3
170355A1
BRACKET
upper structure
1шт.
4
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
4шт.
5
173794A1
COVER
upper structure
1шт.
6
162278A1
BOLT
flange head, special
2шт.
7
162409A1
WASHER
flat, special
2шт.
8
173827A1
INSULATOR
acoustic
1шт.
9
173828A1
INSULATOR
acoustic
1шт.
10
173795A1
COVER
upper structure
1шт.
11
162278A1
BOLT
flange head, special
2шт.
12
162409A1
WASHER
flat, special
2шт.
13
173837A1
PLATE
upper structure, right-hand center
1шт.
14
173829A1
INSULATOR
acoustic
1шт.
15
170408A1
RETAINER
seal
1шт.
16
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
4шт.
17
173141A1
FRAME
upper structure
1шт.
18
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
4шт.
19
173140A1
HOOD
engine
1шт.
20
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
6шт.
21
150811A1
WASHER
flat, special, 12 mm
6шт.
22
173845A1
FRAME ASSY
upper structure
1шт.
23
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
4шт.
24
170358A1
BAR
torsion
1шт.
25
173676A1
BRACKET
mounting
3шт.
26
162278A1
BOLT
flange head, special
6шт.
27
173292A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
28
173296A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
29
173297A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
30
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
2шт.
31
173293A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
32
173806A1
FRAME
upper structure, center
1шт.
33
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
3шт.
34
173798A1
FRAME
upper structure, left-hand rear
1шт.
35
173824A1
FRAME
upper structure, left-hand center
1шт.
36
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
4шт.
37
173295A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
38
173294A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
39
171269A1
COVER
top
1шт.
40
162278A1
BOLT
flange head, special
4шт.
41
173799A1
COVER
upper structure
1шт.
42
173792A1
FRAME
upper structure, left-hand front
1шт.
43
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
2шт.
44
171261A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
45
171238A1
NOISE PROTECTION
INSULATION - acoustic
1шт.
46
162278A1
BOLT
flange head, special
5шт.
47
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
special
10шт.
48
152804A1
GROMMET
rubber
1шт.
Выбрано товаров: 48
