Запчасти Case 9050B (9-022) - UPPER STRUCTURE, LEFT-HAND AND RIGHT-HAND SIDE DOORS, P.I.N. EAC0501122 THRU EAC0501195 (09) - CHASSIS/ATTACHMENTS

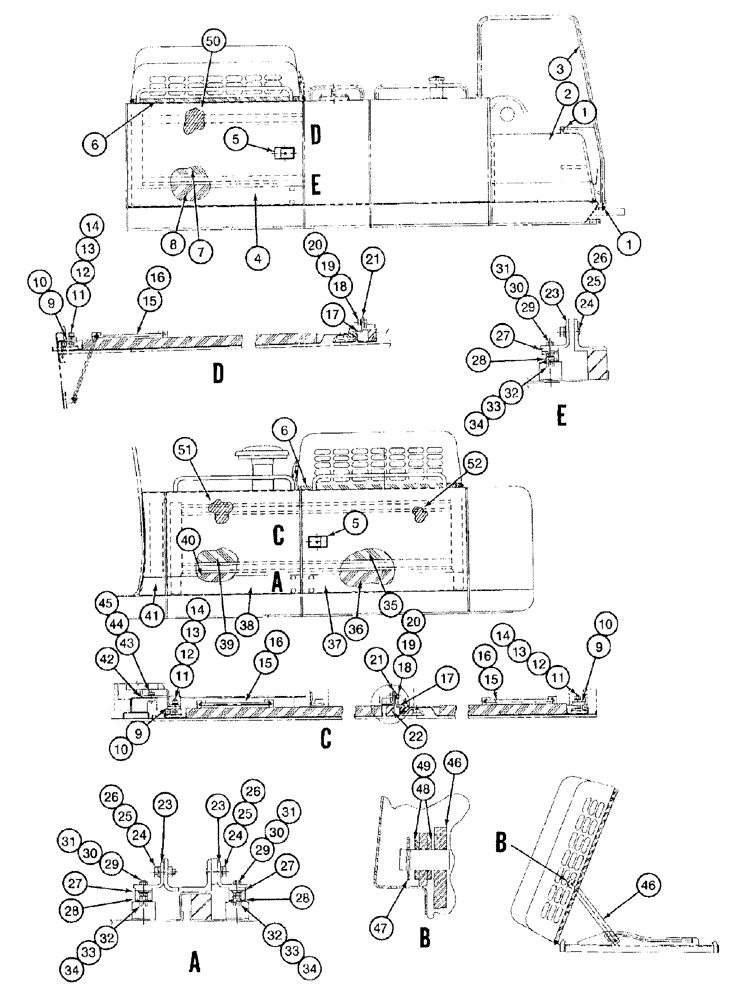

Схема запчастей Case 9050B - (9-022) - UPPER STRUCTURE, LEFT-HAND AND RIGHT-HAND SIDE DOORS, P.I.N. EAC0501122 THRU EAC0501195 (09) - CHASSIS/ATTACHMENTS
13
16
22
31
11
7
10
24
33
21
24
26
26
6
24
30
15
14
20
23
44
9
1
32
13
20
34
17
52
31
15
13
1
34
26
10
23
48
30
21
19
35
33
47
36
14
11
11
32
28
40
9
29
15
46
16
18
29
27
27
23
4
6
18
25
5
12
41
12
14
45
28
50
3
5
51
42
31
29
39
2
30
37
12
43
9
49
19
8
16
10
33
28
25
27
34
32
17
46
25
38

Артикул

Название

Примечание

Количество

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special, Serial Range: EAC0501122-EAC0501162

5шт.

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd, Serial Range: EAC0501163-EAC0501195

5шт.

1a

150811A1

WASHER

flat, special, 12 mm, if used, not shown

5шт.

2

173159A1

BOX, TOOL

storage, Serial Range: EAC0501122-EAC0501162

1шт.

2

173723A1

BOX, TOOL

storage, Serial Range: EAC0501163-EAC0501195

1шт.

3

165115A1

HANDLE

HANDRAIL - upper structure, Serial Range: EAC0501122-EAC0501162

1шт.

3

173718A1

BRACE

HANDRAIL - upper structure, Serial Range: EAC0501163-EAC0501195

1шт.

4

173161A1

DOOR

right-hand rear

1шт.

5

162434A1

LOCK

door, if used

2шт.

6

173150A1

FILLING STRIP

weather, rubber

2шт.

7

173162A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC050112

1шт.

7

173277A1

NOISE PROTECTION

INSULATION - acoustic5, Serial Range: EAC0501126-EAC0501195

1шт.

8

173163A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

8

173276A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

9

152651A1

ADJUSTING PLATE

SHIM - 1.27 mm (.05 inch) thick

6шт.

10

152186A1

BLOCK

SHIM - 2.5 mm thick

6шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

12

892-11012

LOCK WASHER,M12

12шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

12шт.

14

829-1412

NUT,M12, Cl 10.9

12шт.

15

159101A1

STAY

HOLDER - door

3шт.

16

732-2020

COTTER PIN,M2 x 20

2 x 20 mm

3шт.

17

173453A1

BRACKET

upper structure EAC050112 to, Serial Range: EAC050112-EAC0501125

2шт.

17

173164A1

BRACKET

upper structure, Serial Range: EAC0501126-EAC0501195

2шт.

18

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

4шт.

19

892-11012

LOCK WASHER,M12

4шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

4шт.

21

151685A1

BLOCK

SHIM - plate

2шт.

22

159100A1

RUBBER BLOCK

STRIP - weather

1шт.

23

171237A1

BRACKET

upper structure

3шт.

25

892-11008

LOCK WASHER,8mm ID

6шт.

27

159099A1

STOP

door

2шт.

28

159095A1

BRACKET

door

2шт.

29

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

6шт.

30

892-11006

LOCK WASHER,M6

6шт.

31

153360A1

WASHER

flat, special

6шт.

32

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

6шт.

33

892-11006

LOCK WASHER,M6

6шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

35

173151A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

35

173273A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

36

173152A1

NOISE PROTECTION

INSULATION - acousti, Serial Range: EAC0501122-EAC0501125

1шт.

36

173272A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

37

173153A1

DOOR

left-hand rear

1шт.

38

173154A1

DOOR

left-hand front

1шт.

39

165116A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

39

173269A1

RUBBER INSULATOR

acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

40

165117A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501122-EAC0501125

1шт.

40

173268A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

41

173155A1

COVER

side

1шт.

42

159327A1

SHIM

plate

2шт.

43

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

2шт.

44

892-11012

LOCK WASHER,M12

2шт.

45

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

46

173188A1

STAY

upper structure, Serial Range: EAC0501122-EAC0501125

1шт.

46

173637A1

STAY

BRACE - upper structure, Serial Range: EAC0501126-EAC0501195

1шт.

47

173467A1

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

48

170073A1

WASHER

special

4шт.

49

171239A1

WASHER

plate

2шт.

50

173281A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

51

173282A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

52

173280A1

NOISE PROTECTION

INSULATION - acoustic, Serial Range: EAC0501126-EAC0501195

1шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

Выбрано товаров: 64
